Home > Products > Copeland Compressor > Copeland Compressor Scroll Compressor ZB19KCE-TFD
Copeland Compressor Scroll Compressor ZB19KCE-TFD
USD $200 - $2,000
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Thailand | Brand Name: | Copeland | Model Number: | ZB19KCE-TFD |
Type: | Other, Refrigeration Compressor, Hermetic Scroll Compressor | Application: | Refrigeration Parts | Certification: | Other, RoHS |
Product Description
Copeland Scroll Compressor ZB Series
1,ZB15KCE,ZB19KCE,ZB21KCE,ZB26KCE,ZB30KCE
2,ZB38KCE,ZB42KCE,ZB45KCE,ZB50KCE,ZB58KCE etc..
1,ZB15KCE,ZB19KCE,ZB21KCE,ZB26KCE,ZB30KCE
2,ZB38KCE,ZB42KCE,ZB45KCE,ZB50KCE,ZB58KCE etc..
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZB
Model: ZB19KCE-TFD
Technical data
Displacement [m³/h]: | 6,8 | |
Sound power [dBA]: | 66 | |
Sound pressure level [dB]: | 55 | |
Net Weight [kg]: | 27,2 | |
Oil charge [dm³]: | 1,5 | |
Maximum high pressure [bar]: | 28,8 | |
Maximum standstill pressure [bar]: | 21 | |
Minimal lowside temperature [°C]: | -35 | |
Maximum lowside temperature [°C]: | 50 | |
PED category: | 1 |
Electrical data
Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
Locked rotor current [A]: | 32 | |
Max. operating current [A]: | 6,5 | |
Winding resistance [Ω]: | 5,9 |
Connections
inches | |||
Suction Rotolock valve connection: | 1 1/4" | ||
Discharge Rotolock valve connection: | 1" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control

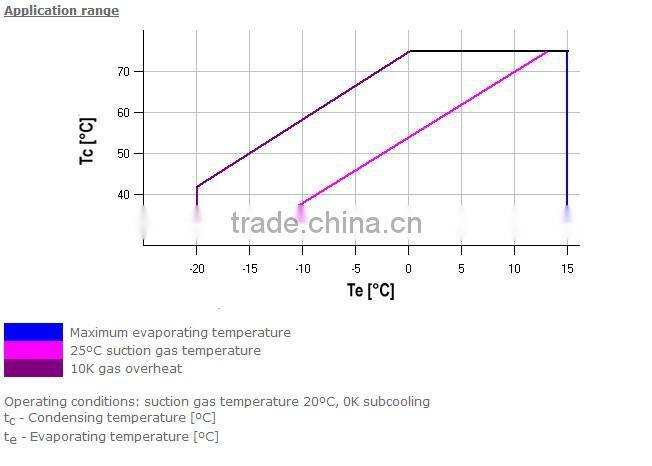

Application
- high and medium temperatures (from 10 ºC to -40 ºC)
- refrigerants R134a, R404A/R507 and R407C

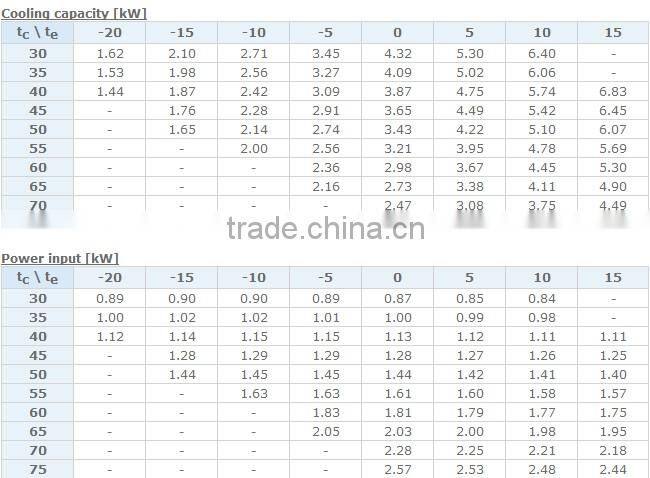

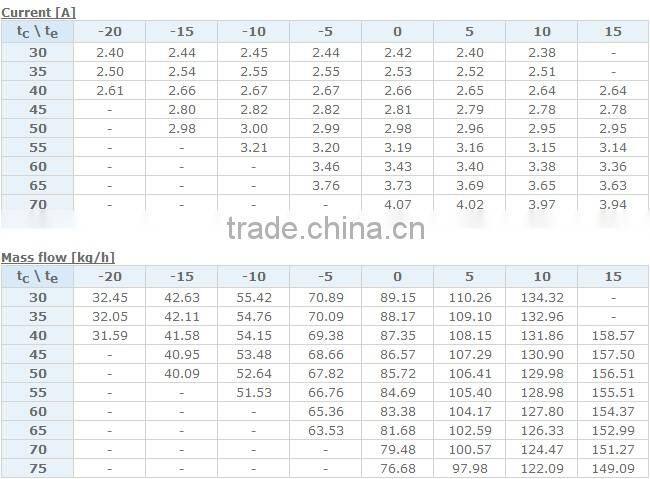

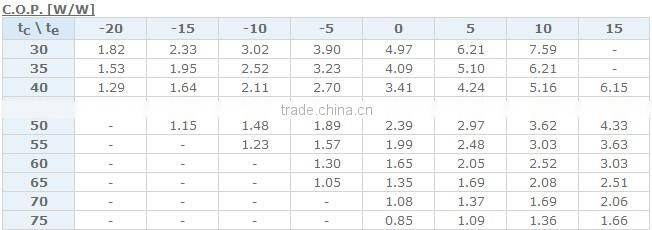

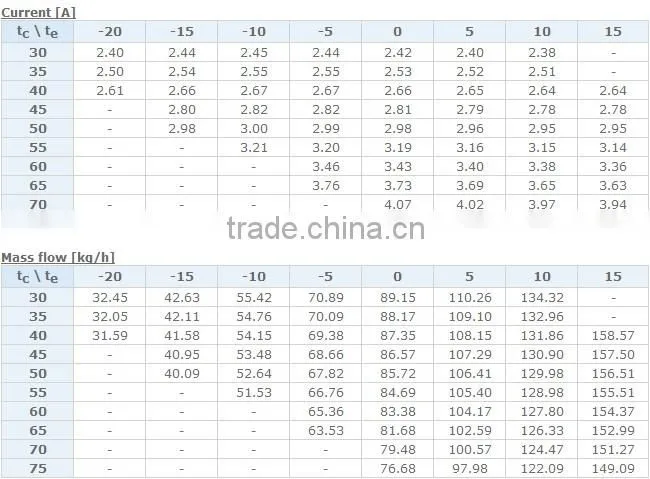

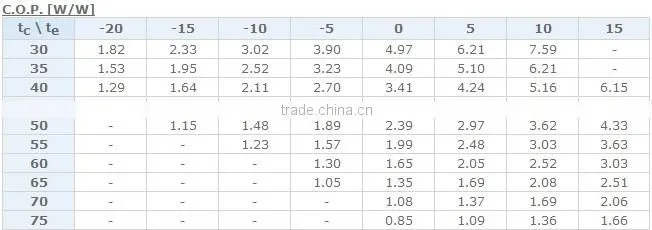

Capacity : R134A,R407C,R404A/R507

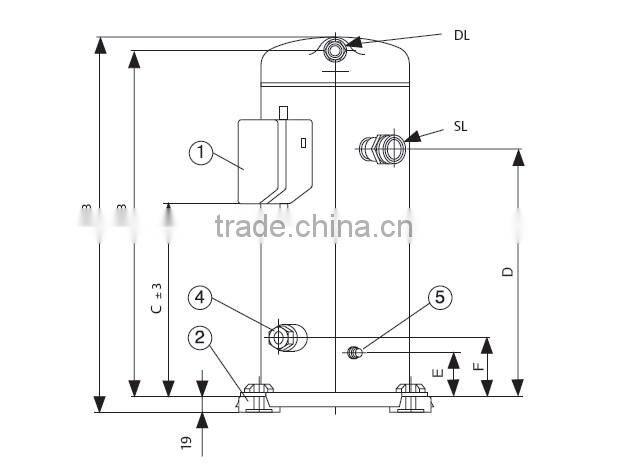

Drawing:

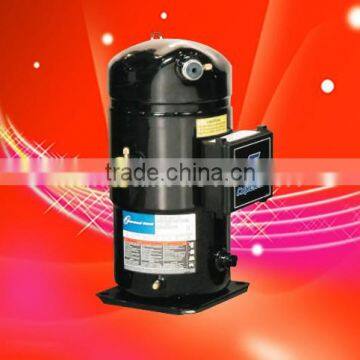

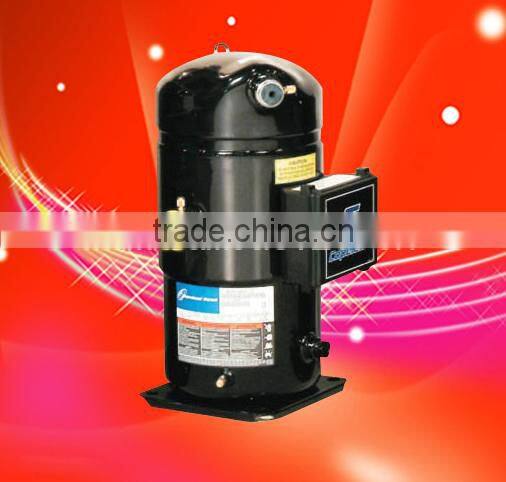

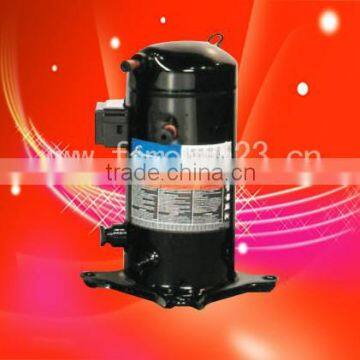

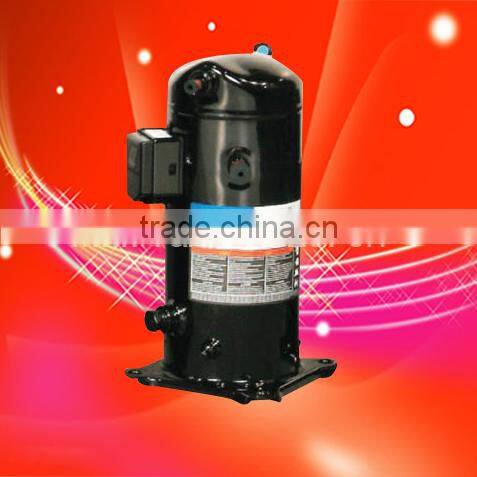

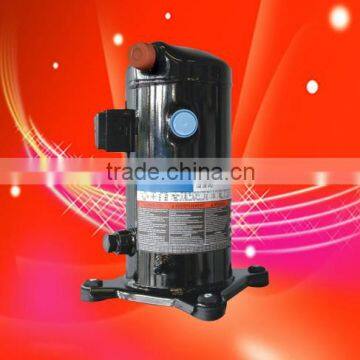

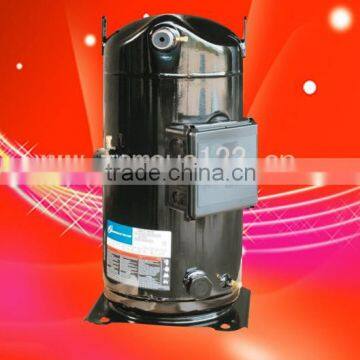

Pictures:
Contact Us
- Dongguan Famous Refrigerant Equipment Co., Ltd.
- Contact nameSoros Zhang
- Phone0086-769-88039702
- AddressNO.17 Dongguan Boulevard Dongtai Dongcheng District Dongguan,Guangdong
