1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines

1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines thumbnail-1
1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines thumbnail-2
1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines thumbnail-3
1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines thumbnail-4
1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines photo-1

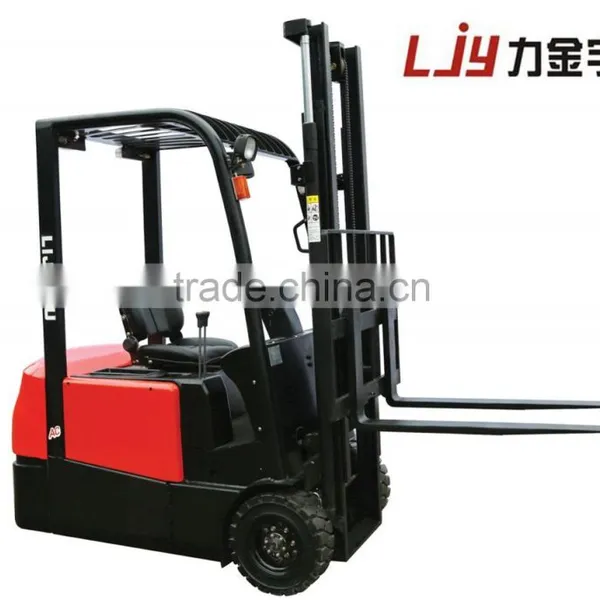

1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines photo-2

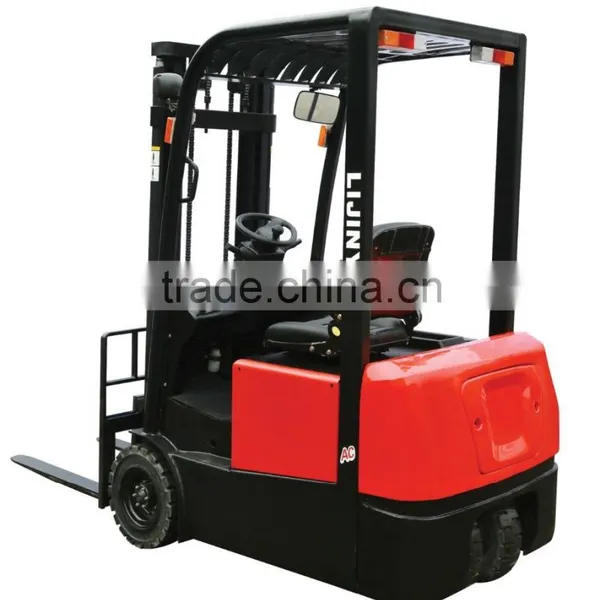

1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines photo-3
1500kgs Electric Forklift/warehouse Good Power Forklift Price/high Lift Pallet Truck/yujie/logistics Machines photo-4
US$ 5,890 - 6,305 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
YUJIE
Contact Supplier Request Quote Chat Now
Zhejiang Yujie Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name YUJIE
Model Number CP-DD15B
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500kg
Max. Lifting Height 3000mm
Min. Lifting Height 90 mm
Fork Length 900/1070mm
Fork Width 165mm
Overall Dimensions 2950*980*2000
Certification ISO9001
After-sales Service Provided No overseas service provided
Company profile

Zhejiang Yujie Machinery Co.,Ltd is a manufacturer that have more than 10 years of production experience and development. We mainly supply electric forklift,manual lift,hand pallet truck and so on lifting machines.

Company is ISO 9001:2008 certificate,which can ensure quality and efficiency.
Today, the company has grown into a well-known domestic warehouse transport vehicle manufacturing enterprise.
It covers over 30000 square meters and our produsts are more and more popular.

Product Parameter

This container stacker is one of the easy lifting machines. With good quality and easy to use.

                                                                                 Container stacker
Model
CP-DD12B
CP-DD15B
Load Capacity
kg
1200
1500
Wheel Base
mm
1250
1250
Load Center Distance
mm
500
500
Driving Wheel*2
cm
Φ15*4.5-8
Φ15*4.5-8
Front wheel*2
cm
Φ18*7-8
Φ18*7-8
Front wheel Base
mm
820
820
Driving Wheel Base
mm
190
190
Lift Height
mm
3000
3000
Free Lift Height
mm
150
150
Overall Length(With fork)
mm
1880
1880
Overall Width
mm
980
980
Slope Angle
5°/6.5°
5°/6.5°
Frame Height
mm
2100
2100
Ground Clearance
mm
10
10
Fork Positioner
mm
200-950
200-950
Min.Turning Raduis
mm
1600
1600
Fork Overhang
mm
300
300
Max.Gradeability(loaden/unload)
%
15/20
15/20
Net Weight(With Battery)
kg
2020
2200
Driving Motor Power
Kw
4
4
Lifting Moter Power
Kw
3
3
Steering Motor Power
Kw
0.8
0.8
Battery
Kw
48/260
48/300
Travelling Speed(loaden/unload)
km/h
8/10
8/10
Lifting Speed(loaden/unload)
mm/s
240/450
240/450

Advantages

This forklift with sitting can make lifting works easier. Also it with the light upside can make sure working in the dark place.Advanced AC control system with MOSFET delivers smooth driving speed control for precise.Small turning radius, easy and smart to operate, make this container stacker more and more popular. Full Hydraulic Steering System and Electric Power Steering(EPS) offers steering wheel automatic reset and travelling speed automatically slow down when steering.

Zhejiang Yujie Machinery Co.,Ltd take good materials and good techology to make sure the quality of all products.

It covers over 30000 square meters and our produsts are more and more popular.

Fairs&Certifications
Related Products

                  CD-D10G


                         CQA-15


                       COD-15A


FAQ

1. What's the warranty?

A: All main parts have 1 year warranty. Any technology questions can contact us any time.

2. What's the delivery time?

A: Normally after the order requirements 15-30 business days.


3. How about the package?

A: Normally with bare package.

Can customized.

More questions can leave us a message or contact us directly.
