Huawei SmartAX MA5603U Service Board H805GPBD 10G GPON EPON OLT

Huawei SmartAX MA5603U Service Board H805GPBD 10G GPON EPON OLT photo-1
US$ 1 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Huawei, HUAWEI
Model Number:
MA5603U, 5603U
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Huawei, HUAWEI
Model Number MA5603U, 5603U

Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT







1.The MA5603U is a medium-capacity multi-service access product.
2.The MA5603U supports integrated broadband access and GPON access.
3.In the upstream direction, the MA5603U uses GE/10GE optical ports to connect to the IP network.
4.In the downstream direction, the MA5603U provides copper-based VDSL2 Overlay (VDSL2+Splitter) access, VDSL2 Combo(VDSL2+POTS) access and GPON access.



Configuration of the MA5603U:

   Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

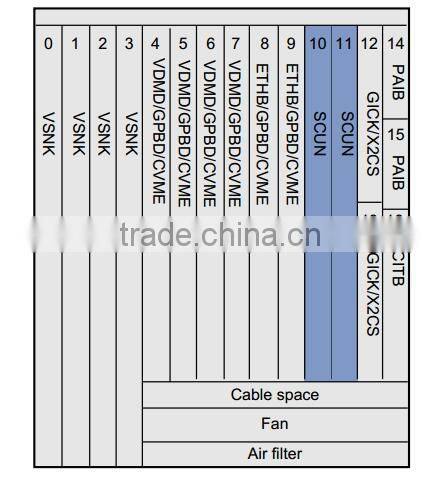

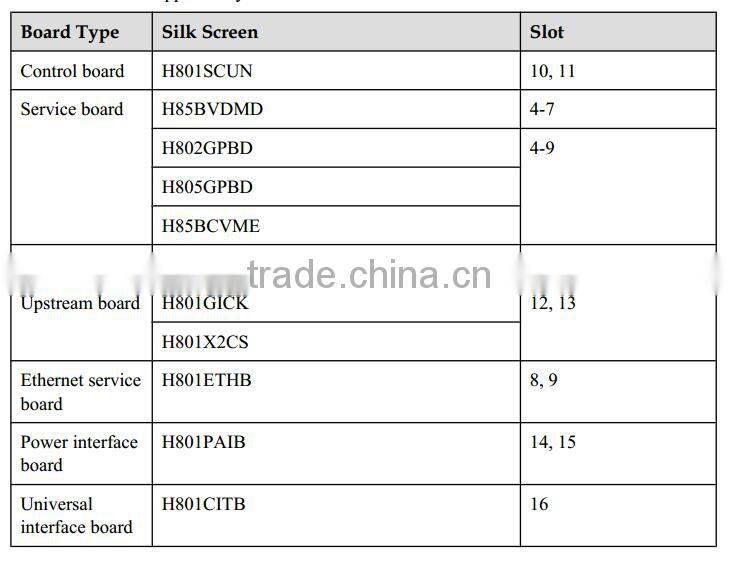

Boards supported by the MA5603U subrack:

    Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

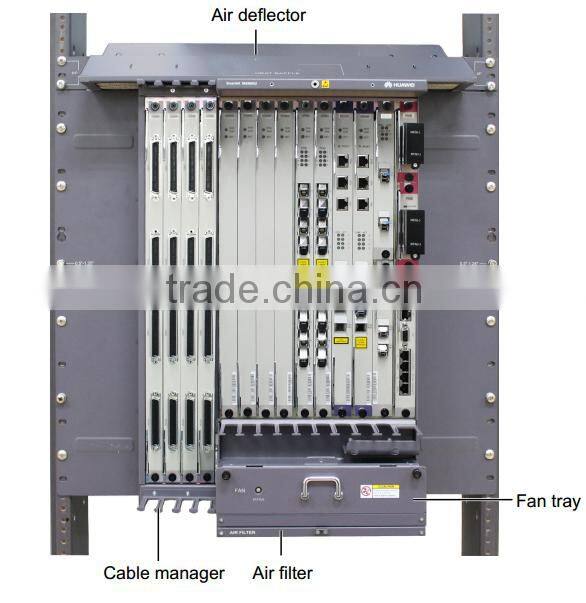

Appearance of the MA5603U subrack (with cover):

    Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

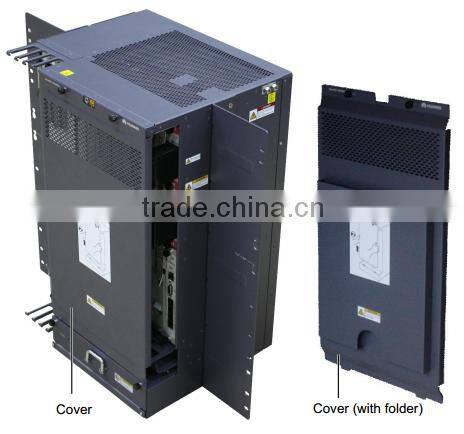

Appearance of the MA5603U subrack (with cover):

   Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

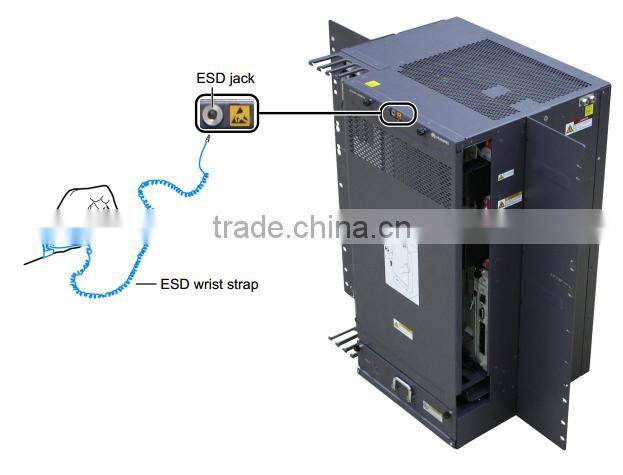

   The ESD wrist strap is used to prevent electrostatic discharge from damaging the equipment.
One end of the ESD wrist strap must be connected to the ESD jack on the subrack.
   Wear an ESD wrist strap when installing the MA5603U. Insert one end of the ESD wrist strap
into the ESD jack (labeled with ESD), as shown in:

  Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

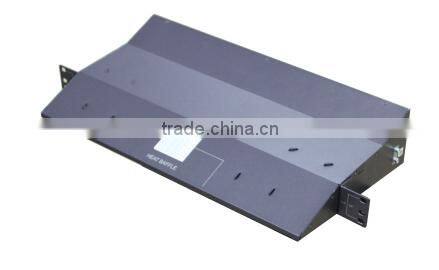

Appearance of the air deflector in the MA5603U subrack:

    Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

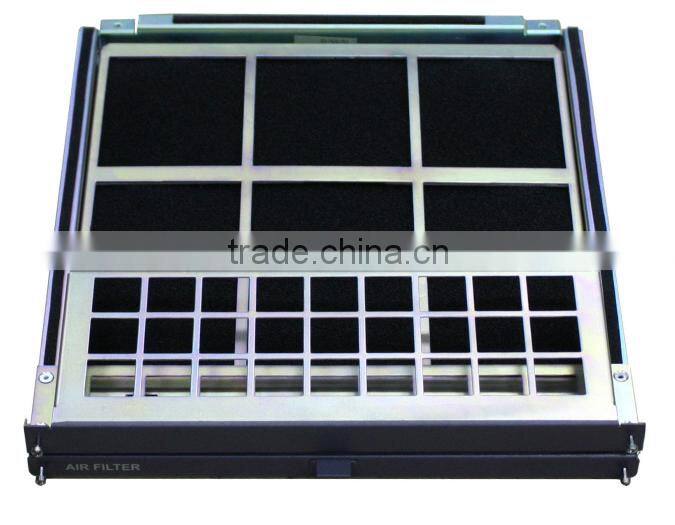

Appearance of the air filter in the MA5603U subrack:

    Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

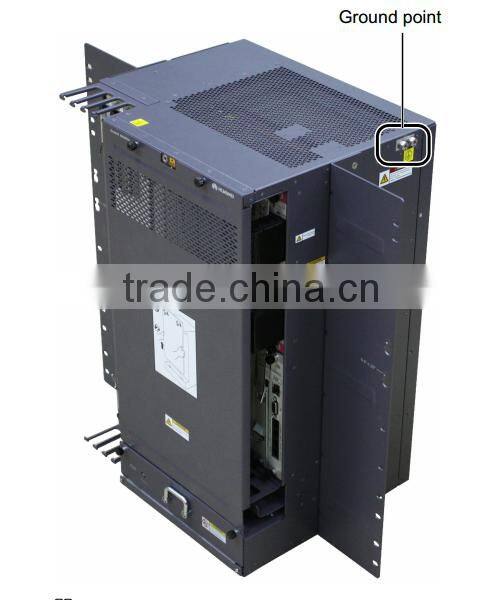

Ground point of the MA5603U subrack:

   Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

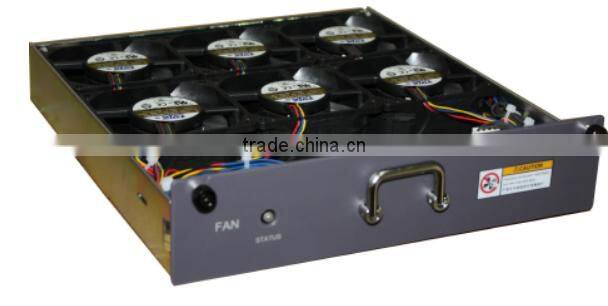

 Appearance of the MA5603U fan tray:

      Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT







Boards supported by the MA5603U:

    Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT





Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT





Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

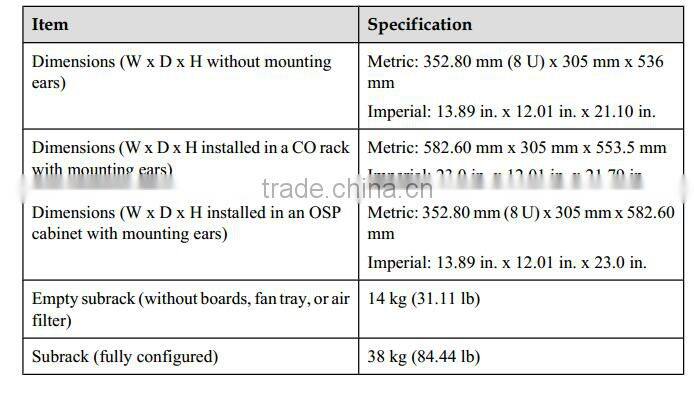

Dimensions and weight of the MA5603U:

   Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT

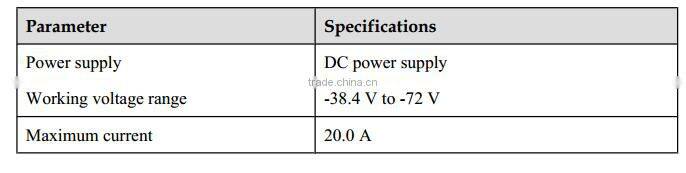

Power supply parameters of the MA5603U:



Huawei SmartAX MA5603U Service board H805GPBD 10G GPON EPON OLT



















Shipping information:

   We have many International Express partn ers  and according to clients requirement to choice best way service our costumers
