Parking Backup Car Camera
- 30000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | EF-C26 |
Warranty: | 2 Years |
Product Description
Main features:

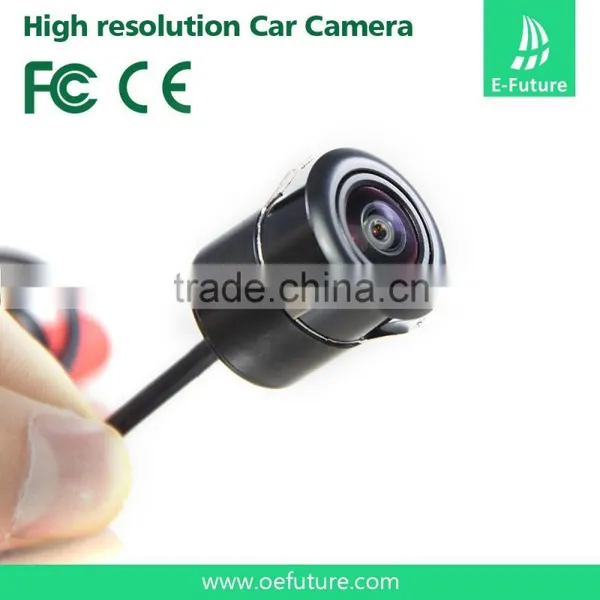

1, Universal Rearview Backup Camera
2, 170 Degree wide viewing angle
3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket
7, Simple installation for installers
8, Low light sensitivity fo 0.5 Lux
9, Reverse image
10,Color: Black
11,Requires a 12V DC power supply
Technical Specifications:
1,TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 420 TV Lines
5, Lens: 2.8mm
6,Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8,Operating Temperature (Deg. C) -30o C~ +70o C
9,Water Proof, Anti-Shock
Quality Assurance:
1.Waterproof test
2.Temperature test
3.Shockproof test
4.Aging test
MODEL | EF-C18 | EF-C18 |
Images sensors | HD CCD | CMOS |
Resolution(TV Line) | 480 | 420 |
Effective pixels | 720*576/720*480 | 580*540/580*492 |
Minimum illumination | 0.5 lux | 1 lux |
IP rating | Ip68 | Ip68 |
lens Angle(Deg.) | 170° | 170° |
TV System | PAL/NTSC | PAL/NTSC |
Power Supply(DCV) | DC12V±1V | DC12V±1V |
Power | <1W | <1W |
Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | 1/60(NTSC)1/50(PAL)1/10,000second |
S/N Ratio | ≥48dB | ≥48dB |
Video output | 1.0vp-p.75ohm | 1.0vp-p.75ohm |
White Balance | Auto | Auto |
AGC | Auto | Auto |
Operating Temperature(Deg. C): | -20~+75(RH95% Max.) | -20~+75(RH95% Max.) |
Storage Temperature(Deg. C): | -30~+85(RH95% Max.) | -30~+85(RH95% Max.) |
Optional Function | Mirror image & non-mirrored image | Mirror image & non-mirrored image |
Easy Installation
1. Mount the camera to your car's license plate area, back window, or any other suitable place
2. Adjust the lens of the camera to its best position.
3. Connect power wire (red and black) to your vehicle DC 12V power system.
4. Connect the video output (yellow wire) of the camera to the display in your vehicle.
