galvanized studs and tracks/gypsum metal profiles for building

Name: galvanized studs and tracks/gypsum metal profiles for building
Brand: JIANLI
Price: USD $600 - 800 / Ton

FOB Price

USD $600 - $800 / Ton

25 Tons(Min.Order)

Supply Ability 4000 Ton / Tons per Month
Port TianJin XinGang
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	JIANLI	Model Number:	JL-TN
Material:	Other, Galvanized Sheet, Galvanised Steel

Product Description

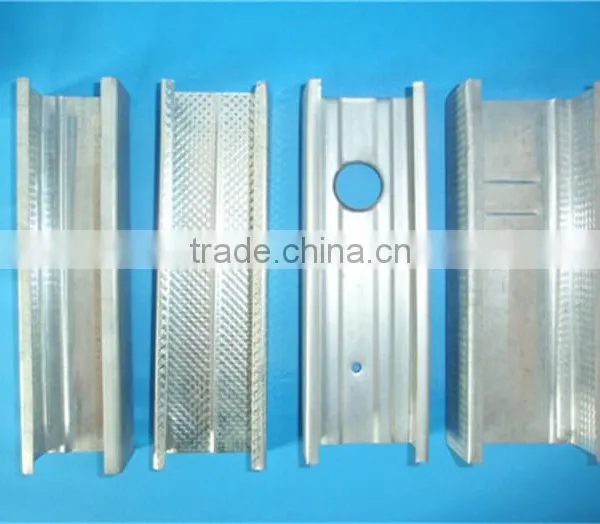

Good sell galvanized studs and tracks for building .

Guangzhou Jianli New type Partition Co.,Ltd is a leading professional manufacturer of ceiling and drywall partition system in China. Our sales network cover the martet of Australia,New Zealand, South East Asia, The Middle East, Europe and South Ameiriaca.

Our main product:

1.Stud and track for drawall partition and ceiling

2.Galvanized steel coils/sheet

3.Tee bar, Tee grid suspension system

4.Gypsum board, mineral board

5.Scrwe, paper tape, mineral wool, hangers and all other accessories for metal frame

Drywall Galvanized Steel Profile

Your drywall ceilings can be virtually any shape, anywhere. Choose from a wide range of heavy-duty system options that provide code-compliant performance in both fire rated and non-fire rated applications with labor-saving advantages.

Galvanized Steel Specification.

Pls kindly check our regular size as below,if you need other special size and thickness,pls contact us we will try our best to follow you or your engineer.

South America

Specification of South America market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	41*32	0.4--1	3050
	64*32
	76*32
	92*32
	92*41
	100*35
Track	41*25--40	0.4--1	3050
	64*25--40
	76*25--40
	92*25--40
	100*25--40
Corner bead	32*32	0.3--0.5	3050

Ceiling

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	38*12	0.4--0.8	3660 or any other length
Main channel	37*20
Furring channel	583416
	643222
	47*17
	522515

Eastern Europe

Specification of Eastern Europe market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*50	0.3--0.7	3000
	75*50
	100*50
Track	50*25--50
	75*25--50
	100*25--50

Ceiling

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Furring channel	60*27	0.5--0.7	3000
Wall angle / Track	28*27	0.5--0.7	3000

Philippin

Specification of Philippin market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*32	0.4--0.8	3000
	64*32
	75*35
	92*35
	100*35
Track	50*25--50	0.4--0.8	3000
	64*25--50
	75*25--50
	92*25--50
	100*25--50

Roof and Ceiling

Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	100*50	0.7--1.5	3000
C section	150*50	0.7--1.5	3000
Main channel	38*12	0.5--0.8	3000
Furring channel	50*19	0.4--0.5	3000

Thailand

Specification of Thailand market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.55	2400, 3000
	65x32
Track	76x25
	66x25

Roof and Ceiling

Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	75x34x36	0.7-1.5	6000
C section	100x50x50	0.7-1.5
Batten	65x25x26.5	0.4-0.6
Batten	65x32x26	0.4-0.6
Furring channel / C-line	35x12	0.3-0.5	4000

Malaysia

Specification of Malaysia market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
U channel	41*23	0.3-0.5	2440, 2740, 3050
	44*22
	48*22
	50*23
	75*24

Roof and Ceiling

Component name	Specificaion (mm)	Thickness (mm)	Length (mm)
C section	753436	0.7--1	3660--5800
	100*50
Batten	583523	0.5--0.8	3660-5800
	653226
	843032
Furring Channel	30*9	0.25-0.3	3660
	34*11

Middle East

Specification of Middle East market

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*35/40	0.5--1	3000
	70*32/35
	75*35/40
	100*35
Track	50*25--50	0.5--1	3000
	70*25--50
	100*25---50

Ceiling

Component name	Spceification (mm)	Thickness (mm)	Length (mm)
Main channel	38*10--12	0.38--0.5	3000
Furring channel	643222
	703522
	804822	0.7	4000

Australia

Specification of Ausralia market

All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m²

Partition

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	51x33.5x35.5	0.5--0.75	2700,3000, 3600,4200, 4800,6000
	64x33.5x35.5
	76x33.5x35.5
	92x33.5x35.5
Track	52x32/28	0.5--0.75	3000
	65x32/28
	77x32/28
	93x32/28
MPW 10 H Stud	12.5X40	0.3-0.5	3000-6000
MPW 10 H Stud	25X35
MPW 10 U Kap	15X25
MPW 10 π Track	55X25
V-angle bead	30X30
L -angle bead	30X6
L-angle bead	30X10
L -angle bead	30X13
L -angle bead	30X16
J -angle bead	30X10X13
Z -angle bead	30X10X10
Z -angle bead	30X10X6

Roof and Ceiling

Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	25x21	0.75	3600,4800,6000
Furring channel	51x38x28	0.5	2700,3000,3600, 4800,6000
Furring channel	51x38x16	0.5	2700,3000,3600, 4800,6000
C channel	36x16	0.45	3000,3600
Wall angle	35x16x13	0.5	3000
Wall angle	35x28x20	0.5	3000
Batten	94x42x40	0.55/0.75	4800,6000

Raw material: 2mm Cold Roll Coil

Zine coated progress is contrl by our own factory

Zine Coated Level: 60g~200g

Thickness 0.4~1.2mm

Tensil Stress: 696.74MPa

Yeild Stress 669.48 Mpa

Hardness: 15HRC

Standrard GB/T 11981-2001

We sale those areas.

Galvanized Steel Production.

19 years of manufacturing experience.

Our modern manufacturing facilities and state-of- the art equipment allow us to customize the products to meet the most stringent customer requirements. In co-operation with our global business partners, we have developed numerous products to international standards.

Former successful experience will ensure our global partners stable, competitive pricing and on-time delivery.

Our loading

Canton Fair

Certificated.We get the SGS CE certificated & ISO,It also helps us to gain more projects, like government office ,hospital ,school, commercial building, airport, metro.

Our company

Application

Quality: the main point we value a lot, CE & SGS can prove our attitude.

Service: we dedicate ourselves to offer you our prompt service.

Responsibility: be responsible to you means being responsible to ourselves.

Integrity: loyal to our products, loyal to our customers.

If you are interesting in our products, pls contact us now.

Why us is your best choice?

We are a totally independent marketing, sales and manufacturing organization with strong links to a network of peer Chinese ceiling producers whose products complement our own.
We can provide numerous references attesting to our high standards of professionalism and reputation in the global market place.
We have a strong capital base.
We will continue to expand our core business activities and product line through our highly-trained human resources.
We actively seek co-operation arrangements with interested international ceiling manufacturers.

Welcome have look products, we are gonna to entertain you !
