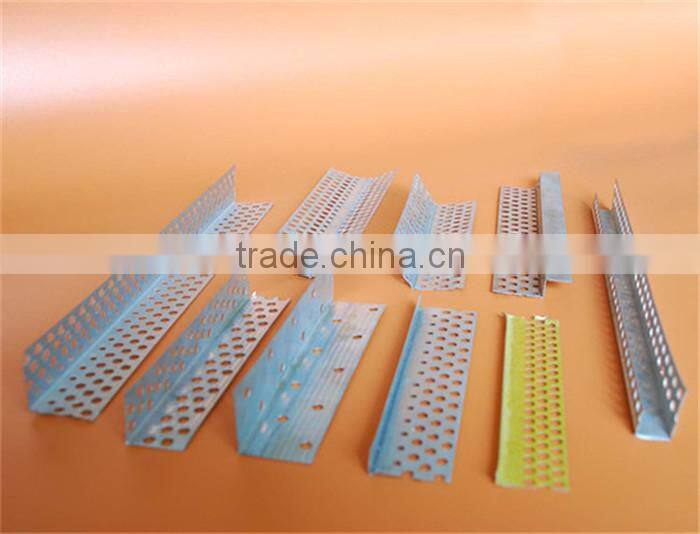

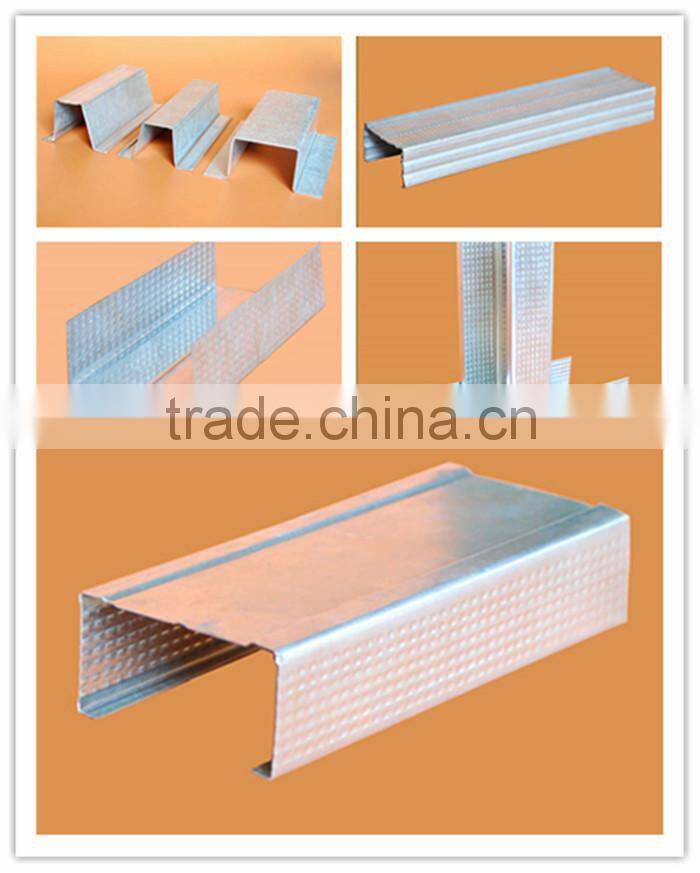

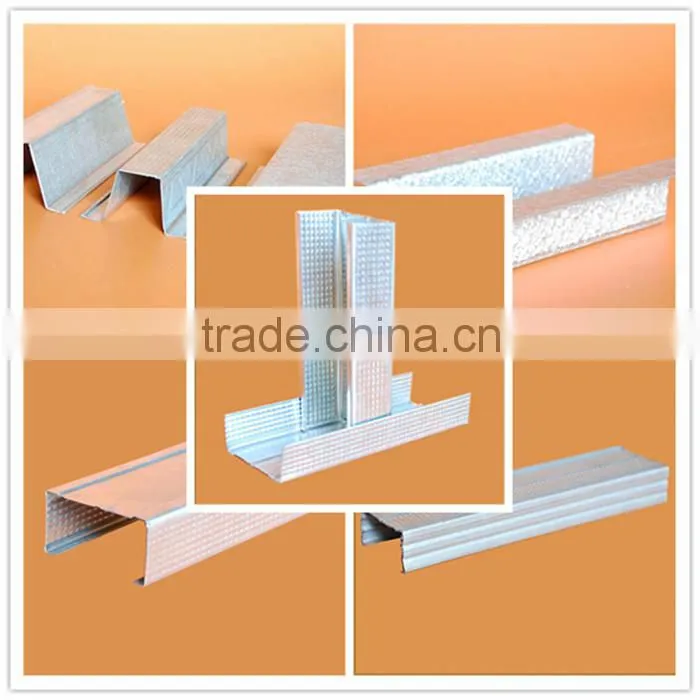

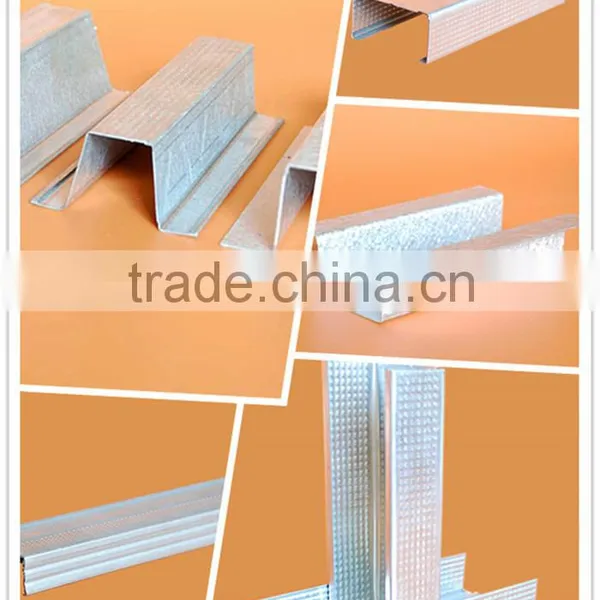

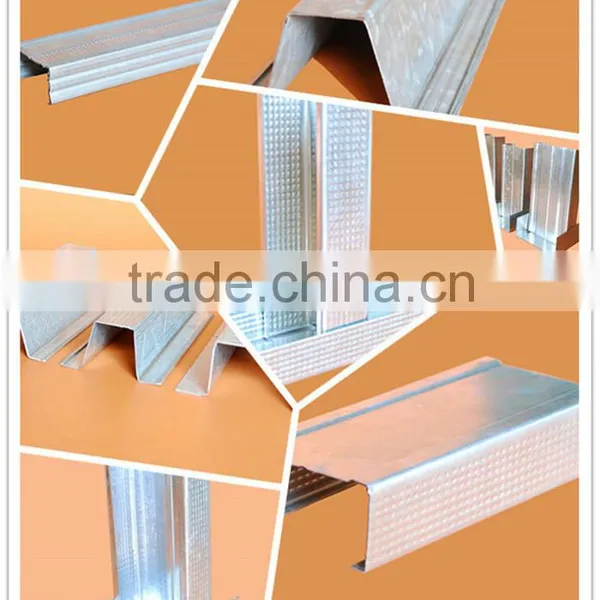

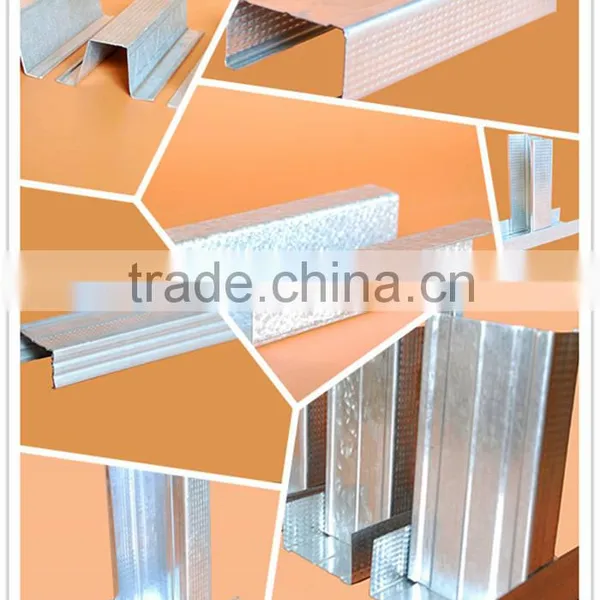

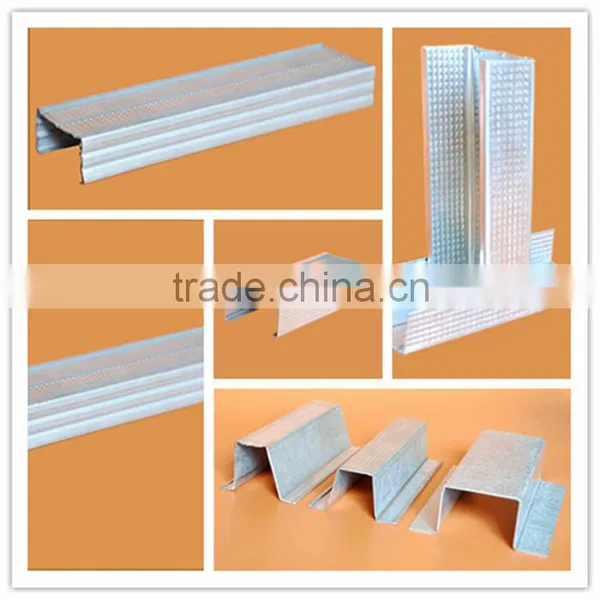

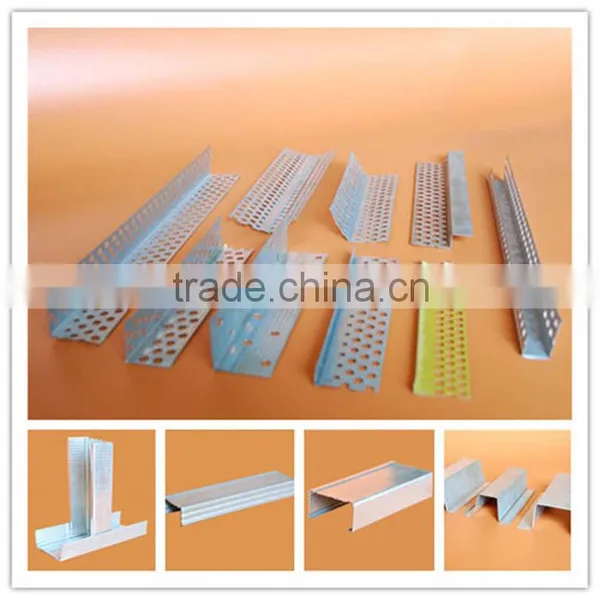

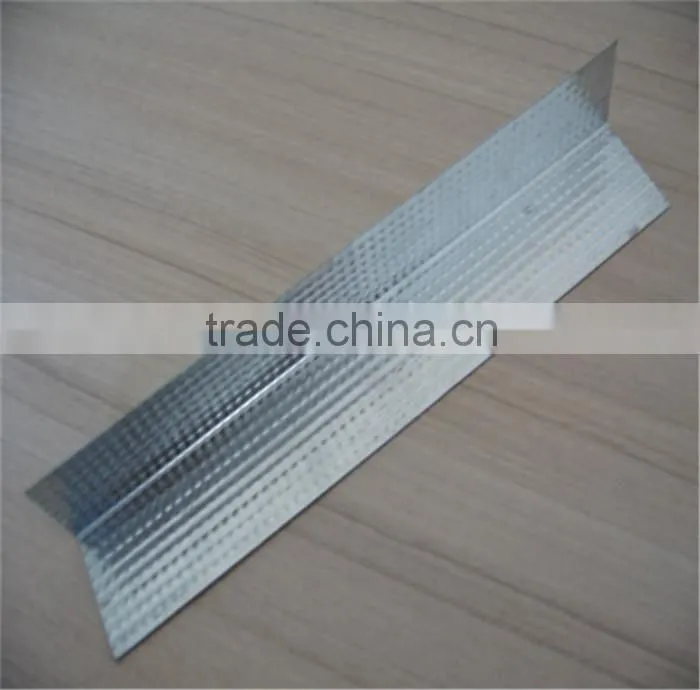

Perfiles Montante & Solera Omega Angular, Stud and Track, Furring Channel Angel
US$ 0.2 - 1
MOQ: 25 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
jianli
Model Number:
JL-0010, JL-0010
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Perfiles Montante y Solera Omega Angular ParaguayUS$ 0.2 - 1MOQ: 25 Tons -
Perfiles Montante & Solera Perfiles Omega Angular, Furring ChannelUS$ 0.2 - 1MOQ: 25 Tons
-
Perfiles Montante y Solera Omega Angular/ Stud and Track/ Furring ChannelUS$ 0.2 - 1MOQ: 25 Tons
-
Perfiles Montante & Solera Perfiles Omega AngularUS$ 0.2 - 1MOQ: 25 Tons
-
Hot Sales Perfiles Montante & Solera Omega AngularUS$ 0.2 - 1MOQ: 25 Tons
Place of Origin
Hebei, China
Brand Name
jianli
Model Number
JL-0010, JL-0010
Material
Other, Galvanized Sheet, galvanized steel

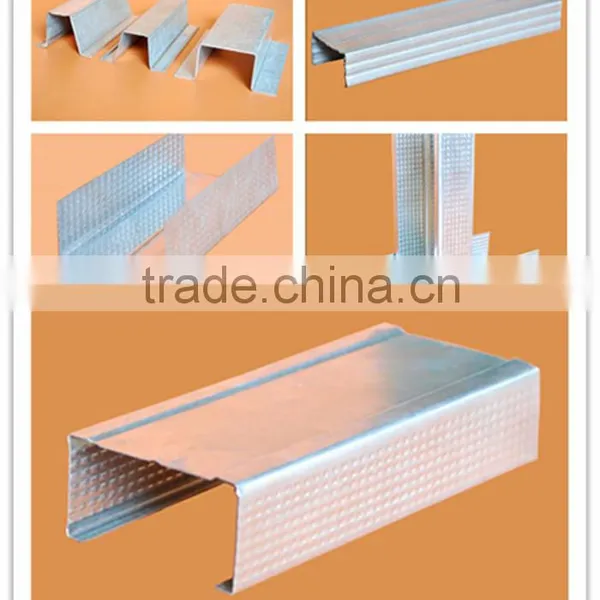

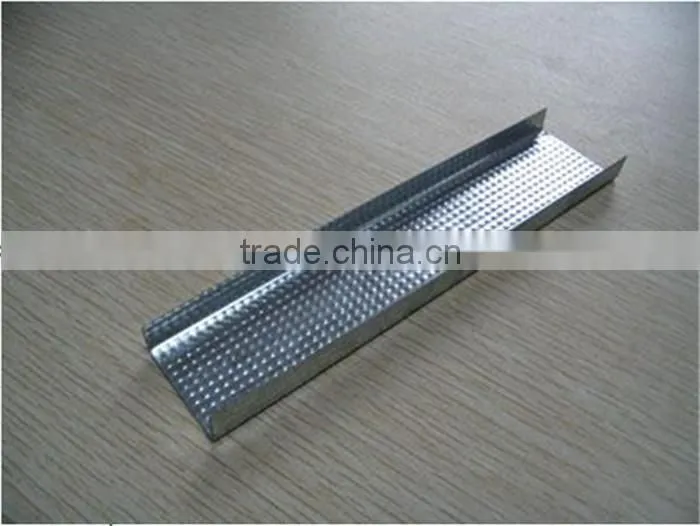

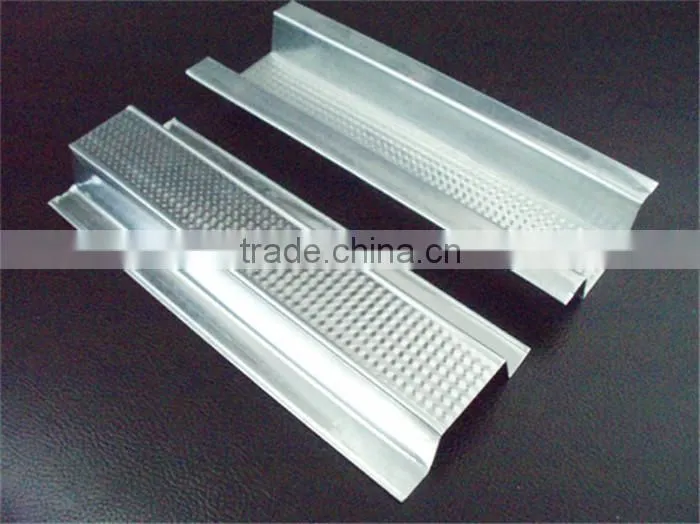

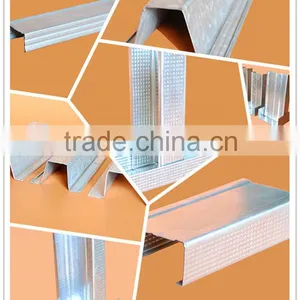

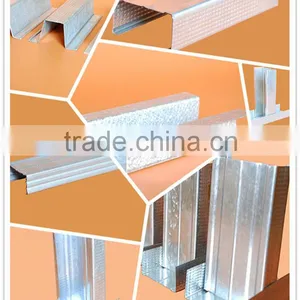

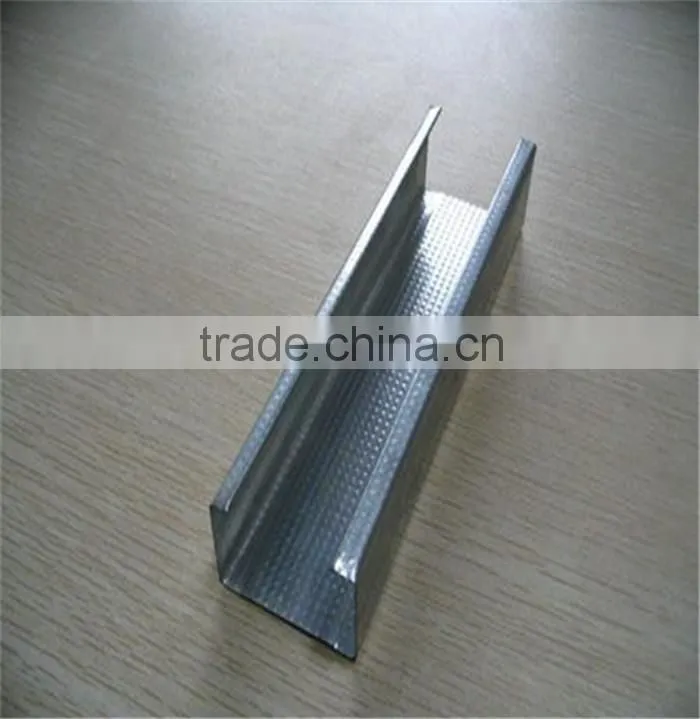

Perfiles montante & solera omega angular, stud and track, furring channel angel
Specification
| 1. Specification of South America market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness(mm) | Length(mm) |
| Stud | 41*32 | 0.4--1 |
8FT--10FT 2440--3050 |
| 64*32 | |||
| 76*32 | |||
| 92*32 | |||
| 92*41 | |||
| 100*35 | |||
| Track | 41*25--40 | 0.4--1 |
8FT--10FT 2440--3050 |
| 64*25--40 | |||
| 76*25--40 | |||
| 92*25--40 | |||
| 100*25--40 | |||
| Corner bead | 32*32 | 0.3--0.7 | 8FT--16FT 2440--4800 |
| Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length |
| Main channel | 38*12 | 0.4--0.8 |
8FT--16FT 2440m--4800m |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 | |||
| 2. Specification of Malaysia market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| U channel | 41*23 | 0.3-0.5 | 2440, 2740, 3050 |
| 44*22 | |||
| 48*22 | |||
| 50*23 | |||
| 75*24 | |||
| Roof and Ceiling | |||
| Commodity | Specificaion (mm) | Thickness (mm) | Length (mm) |
| C section | 75*34*36 | 0.7--1 | 3660---5800 |
| 100*50 | |||
| Batten | 58*35*23 | 0.5--0.8 | 3660--5800 |
| 65*32*26 | |||
| 84*30*32 | |||
| Furring Channel | 30*9 | 0.25--0.4 | 3050--4880 |
| 34*11 | |||
| 3)Specification of Middle East market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*35/40 | 0.4--1 | 3000 |
| 70*32/35 | |||
| 75*35/40 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--1 | 3000 |
| 70*25--50 | |||
| 100*25---50 | |||
| Ceiling | |||
| Commodity | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 | |
| 4. Specification of Eastern Europe market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*50 | 0.4--0.7 | 3000 |
| 75*50 | |||
| 100*50 | |||
| Track | 50*25--50 | ||
| 75*25--50 | |||
| 100*25--50 | |||
| Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
| 5. Specification of Myanmar market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.6 | 3000 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 | |||
| Roof and Ceiling | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| C sectionC section | 75x34x36 | 0.7--1.5 | 5800 |
| 100x50x50 | |||
| BattenBatten | 64x24x24 | 0.4--0.6 | 5800 |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3--0.5 | 3960 |
| Main channel | 18x28 | 0.5--0.8 | 3050 |
| Furring channel | 50x17 | 0.4-0.5 | |
| 6. Specification of Thailand market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.55 | 2400, 3000 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 | |||
| Roof and Ceiling | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 75x34x36 | 0.7-1.5 | 6000 |
| 100x50x50 | |||
| Batten | 65x25x26.5 | 0.4-0.6 | |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3-0.5 | 4000 |
| 7.Specification of Philippines market | |||
| Partition | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*32 | 0.4--0.8 | 3000 |
| 64*32 | |||
| 75*35 | |||
| 92*35 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--0.8 | 3000 |
| 64*25--50 | |||
| 75*25--50 | |||
| 92*25--50 | |||
| 100*25--50 | |||
| Roof and Ceiling | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |
| 8. Specification of Ausralia market & New Zealand | |||
| All Australia products make with high quality galvanized metal with zinc coating 275g/m2 | |||
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 | 2400-3600 |
| 64x33.5x35.5 | |||
| 76x33.5x35.5 | |||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||
| V-Corner bead | 30X30 | ||
| L -Corner bead | 30X6 | ||
| L-Corner bead | 30X10 | ||
| L -Corner bead | 30X13 | ||
| L -Corner bead | 30X16 | ||
| J -Corner bead | 30X10X13 | ||
| Z -Corner bead | 30X10X10 | ||
| Z -Corner bead | 30X10X6 | ||
| Roof and Ceiling | |||
| Commodity | Specification (mm) | Thickness (mm) | Length (mm) |
| Top cross rail | 25x21 | 0.55/0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 | 2700,3000,4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Purchasing guides
- SRA is proud to have one of the industry’s most technically knowledgeable, experienced, and professional sales team in the industry. You’ll find that their dedication, attention to detail, and problem solving skill will make finding the best solutions for your unique project an easy process.
- Since building conditions and requirements vary from region to region, we’ve assigned team members to specific regions based their unique experience and training. Please tell us your country or region to learn more about the dedicated SRA Salesperson in your region and how they can ensure success on your next light steel building project.
About us

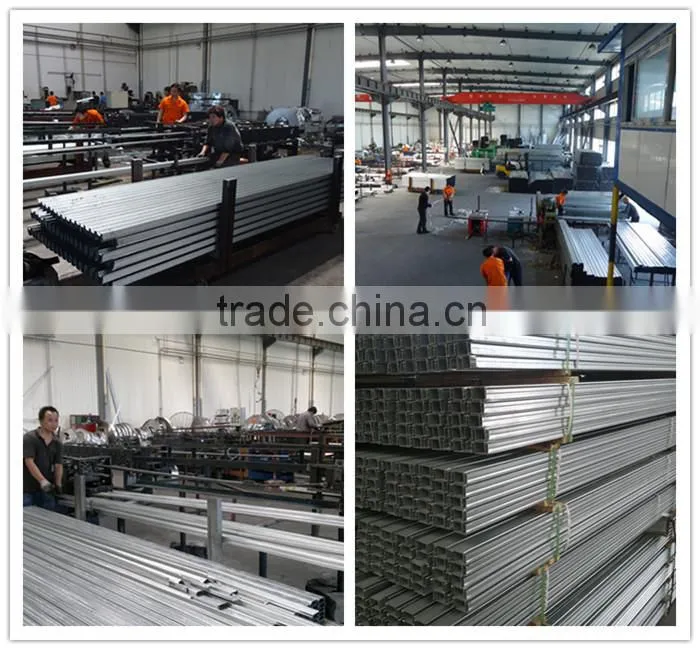

SRA LIGHT STEEL FRAME FACTORY

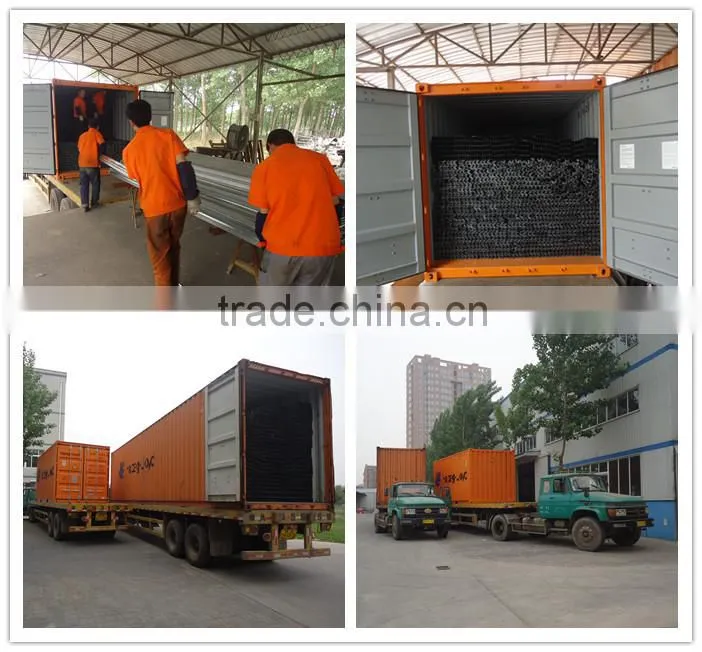

LOADING LIGHT STEEL FRAMING
