Specifications
LED To HDMI Main Board For TVPlug and use
vga,dvi,hdmi,dp port

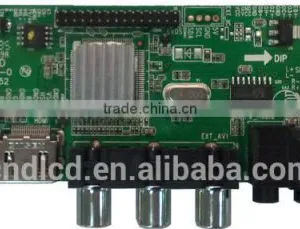

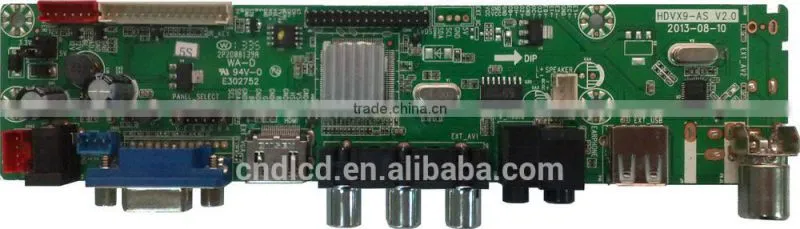

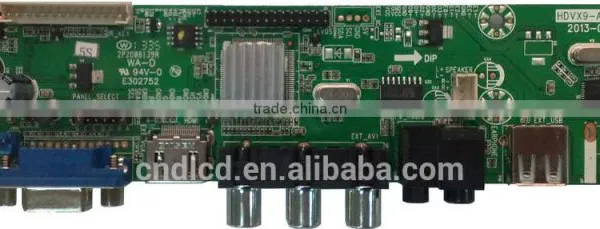

HD LCD TV main control board support 3D TV
Special Features:
1,this board main for worldwide analog TV system,such as SAMSUNG, CMO, AU, LGP,SHARP,BOE etc
2,support PAL+SECAM/NTSC system, optional full standard system
3,the product is suitable in the 1920 * 1200
4,Dynamically adjust picture's color , contrast ratio, definition
5,this motherboard software support online updates
6,Reliable, High stability, Low noise, low power consumption.
7,It can reappear real world image color and sound
8,Certificate:ISO9001:2008
products details
| IC | TSUMV59XU | ||
| Market Area | China | ||
| OSD Language | English, French, German, Italian , Spanish , Portuguese | ||
| Match Screen | Interface | Single Dual LVDS | |
| Resolution | Max 1920x1080@60Hz | ||
| Video Input |
TV |
Received frequency | 49MHz – 863MHz |
| Input impedance | 75 | ||
| Color system | PAL, SECAM/NTSC | ||
| Sound system | BG, DK, I, L/M,N | ||
| USB | USB document support format | ||
| Video | Color system | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio input | PC | Earphone input | 0.2 – 1.5 Vrms |
| Video | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Component | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Audio output | Frequency | 100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal) | |
| Loudspeaker output | 2x10W(8) (optional 3W) THD+N<10% | ||
| Key interface | Menu,CH+,CH-,VOL+,VOL-,source, stand b | ||
| Power | Input requirement | 12V, 5V, 5VSB/single+12v optional | |
| Screen power supply | 3.3V,5V, 12V | ||
| Power management | Low power consumption mode, stand by <1W(depending on the power supply) | ||
Packing:
waterproof bag and carton and 300 pieces packed in acarton.
About us
we are the leading manufacture speciallized in designing and manufacturing city difference of tv board in China with the experience of more than 8 years manufacturing ,according to the ISO 9001,2008.we help our customer develop special board up for their application and OEM service offered .
Our Advantages:
Good Quality!
High Technology!
Fine Management!
