Home > Products > PC display board > Whole-sale Special offer LED LCD LVDS Panel Driver Controller Adaptor Solution
Whole-sale Special offer LED LCD LVDS Panel Driver Controller Adaptor Solution
- 100000 Piece / Pieces per Month
- Hongkong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | MDV6614 6615 |
Product Description
Product Name: Whole-sale Special offer LED LCD LVDS Panel Driver Controller Adaptor Solution
Model No.: MDV6614VX V2.0 MDV6615VX V2.0
Key Feature

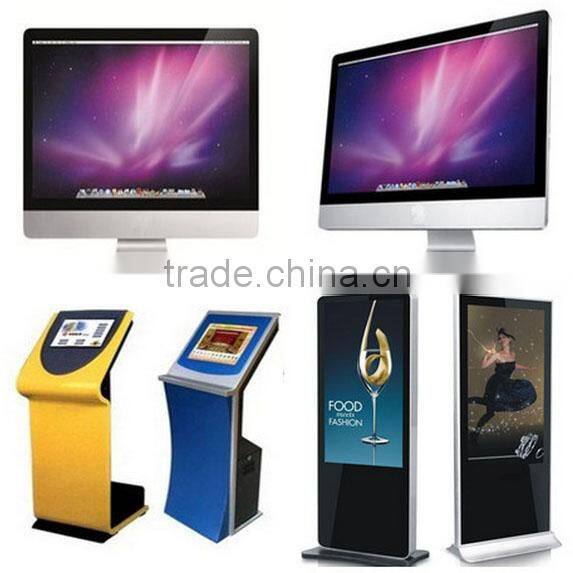

- Used for TFT LCD Panel for LCD Monitor,or Advertising Machine,Or Digital photo frame,
- Support resolution up to WUXGA 1920x1200; WUXGA(1920X1200) dot to dot display;
- LVDS max output Full HD 1920X1200;
- Input Signal: VGA + DVI;
- It is with audio power amplifying function, output 2Wx2, volume can be adjusted by Pressing key;
- Also with LED backlight driver, it can drive LED panel not larger than 32inch.
Product Feature Specification
Feature | Specification |
Input Signals | VGA: Analog RGB(0.7Vp-p), Synchronous line-field separation(TTL) |
DVI:TMDS | |
Support Model: | DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA, WSXGA+, WUXGA Etc. |
Color: | 24bit |
Line frequency : | 30-94.5KHz |
Field frequency : | 56-75Hz |
Output Signal: | Doubl LVDS Standard |
Audio Power Outpur: | 8ohm 2Wx2 optional |
Control Key | POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G |
OSD Menu | Brightness, Contrast, Auto, Phase, Clock, Field Position, Function, Reset; |
OSD Language: | Chinese, English, French, Italian, Arabian etc. |
Power Input: | 12 V(+/-0.6V)(DC)(without Amplifier, can be changed into 5V) |
Power Operation: | Normal |
Product Size: | 107mm(L)x52mm(W)x16mm(H) |
Plug & Play: | Support |
Power Management: | Stanby Power Consumption <1W |
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Software Services;

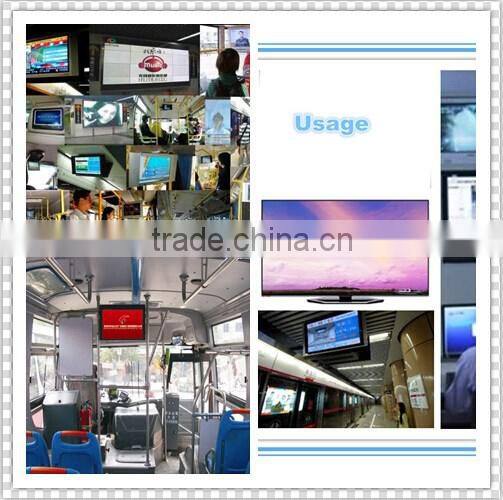

Application:
CND RD Team
Quality Assurance
Workshop and equipments
CND Certificates: ISO, Patent, Hi-Tech
Q: Where are you located? How can I get there?
A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.
Q: We are using several panel. how to match and change the software?
A: Our software supports panel select by jumpet hat. no need change software for different panel.
Q: What's delivery time? what's the shipping methord?
A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.
Q: Who we are? what's our Brand?
A:We are CND Electronic Technology (ShenZhen) Co., Ltd.
is our registered Brand.
Q: What's our core product and services?
A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions
Q: What are our product applied in, and who is our Customer?
Q: What are our capability and advantages?
6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
