Home > Consumer Electronics > Display & Accessories > LCD Module > Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV

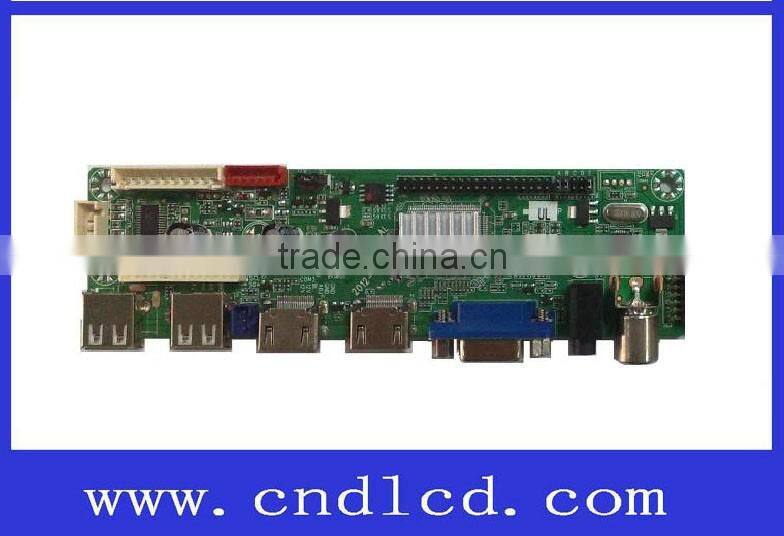

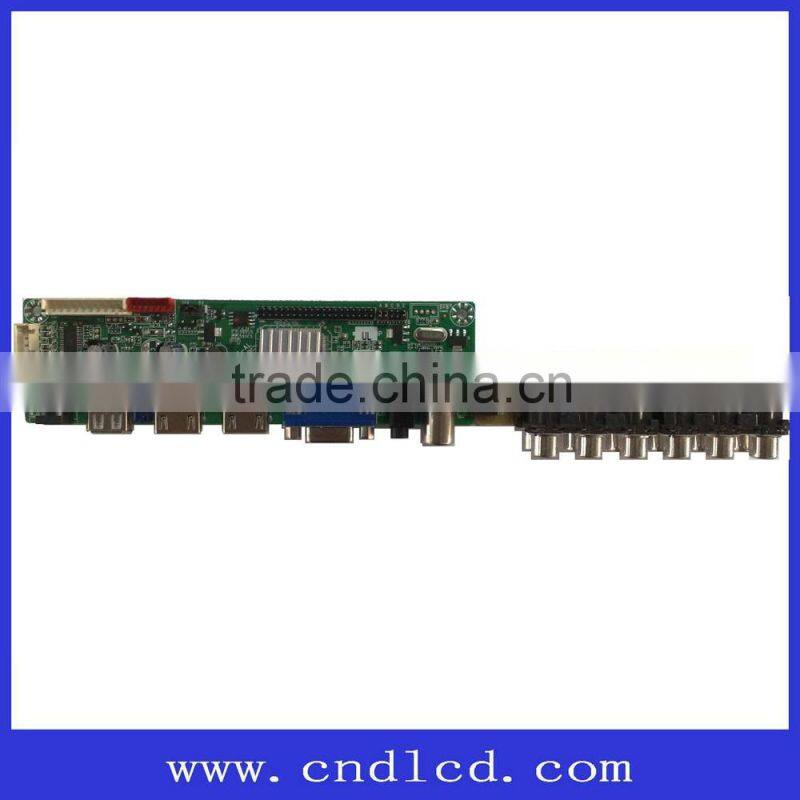

Universal LCD / LED V59 TV Board With 2HDMI 2USB 2*AV

CND Electronic Technology (Shenzhen) Co., Ltd.

Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV thumbnail-2

Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV thumbnail-3

Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV photo-1

Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV photo-2

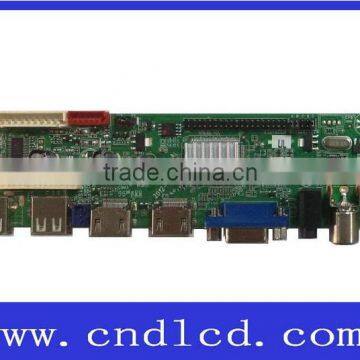

Universal LCD / LED V59 TV Board With 2*HDMI 2*USB 2*AV photo-3

US$ 8 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

HDV59S-AL

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CND

Model Number HDV59S-AL

Type TFT

Product Description

Product Name: LED LCD TV Board

Model No.: HDV59S-AL

LED LCD TV Mother Driver Controller Main Card Board Key Feature

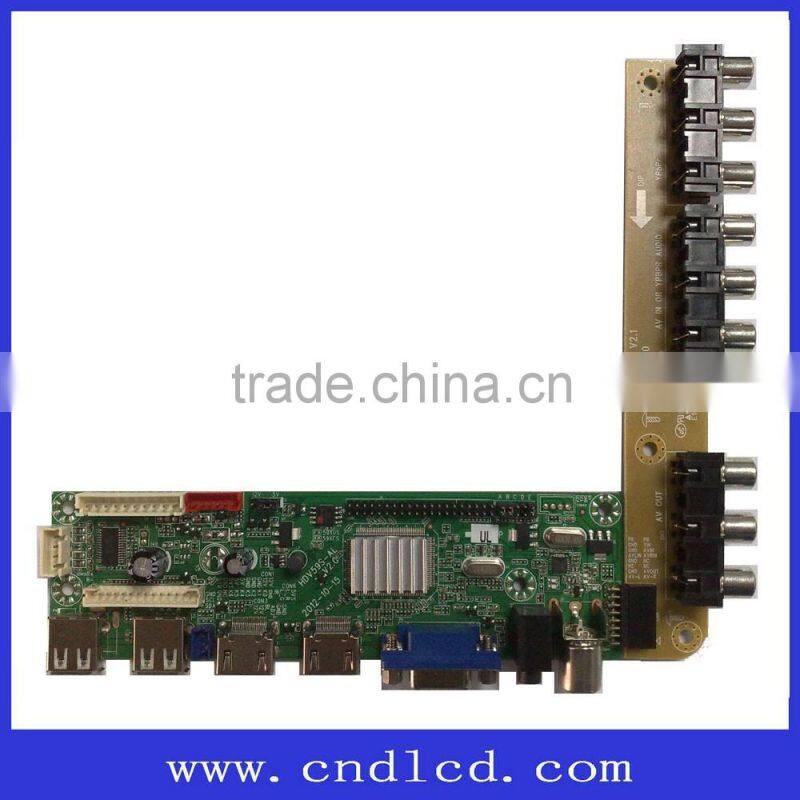

with much expansion port can realize L type port, mainly used in LED screen
with ultra-thin machine; And single/double bottom out type port, mainly used in
LCD/PDP and ordinary cabinet
TV system support PAL+SECAM/NTSC system,optional full standard system
Max supports FULL HD 1920X1080 resolution TFT-LCD screen
One VGA port,support 1920X1080@60Hz input
2 HD digital multi-media port(HDMI)1.3A, HDCP1.2 and DVI 1.0
two USB port,support Audio,Video,image etc, multi-media format
expanded port board can support1~2 AV input,1AV output,1YPBPR input
Dynamically adjust picture's color , contrast ratio, definition and so on.
Brightness, chroma instantaneous improvement function , black / white level extensions function , color compensation function
Supports control of treble or bass ,Stereo input Rating of
Audio loudspeaker output is 5W*2(8ohm)or 8W*2(8ohm)
Automatically detect input video format Reliable EMC and antistatic treatment measures

Three Versions as follows

HDV59S-LCD

HDV59S-LED

LED LCD TV Mother Driver Controller Main Card Board GENERAL DESCRIPTION

This tv board is suitable for worldwide analog TV system PAL/NTST/SECAM,
which is compatible with LCD panel mainstream manufacturers,such as
SAMSUNG, CMO, AU, LGP,SHARP,BOE etc,It can reappear real world
image color and sound,main IC adopts MSTAR single chip TSUMV59XUS-Z1
program.

LED LCD TV Mother Driver Controller Main Card Board Products Specification

Main Chip	TSUMV59XUS-Z1
OSD Language	English, French, Arabian, Italian, or Customized
Panel	Interface		Single or Dual LVDS,2X15pin
	Resolution		Max 1920x1080@60Hz
Video input	TV		Frequency Receiving		49MHz – 863MHz
			Input resistance		75ohm
			Color System		PAL, SECAM/NTSC
			Sound system		BG, DK, I, L/M,N
	PC		R,G,B+H/V		Max 1920x1080@60Hz
	HDMI		480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	Component		480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	USB		To play Picture, Movie, Music, TXT
	Video		Color System		PAL/SECAM/NTSC
			Video amplitude		1.0 Vp-p ±5%
Audio Input	Computer		Earphone Input		0.2 – 1.5 Vrms
	Video		L/R RCA Input		0.2 – 1.5 Vrms
	Component		L/R RCA Input		0.2 – 1.5 Vrms
Audio Output	Frequency		100Hz - 15000Hz @±3dB (1KHz 0dB Signal)
	Power Output		5WX2(8ohm) /8WX2(8ohm) THD+N<10%
Power	Input		Optional: +12V or Built-in Large Power Interface
	Panel-drive Voltage		5V, 12V(remark:For 3.3V Panel, need special treatment)
	Power Management		Standby <1W(based on the power)
Remote control Press Key Interface	Stand by,Source, Menu,Pro+,Pro-,Vol+,Vol-
Interface	Input	USB		2xUSB
		HDMI		2xHDMI
		PC		1xD-SUB 15pin terminal
		PC-RGB Audio		1x earphone port(black)
		Vedio		2xRCA(yellow)
		Audio		2xRCA (white, red)
		TV		1xIEC Connector 75ohm
		Component		1 set RCA(Yellow,RED,White)

Packaging & Shipping

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

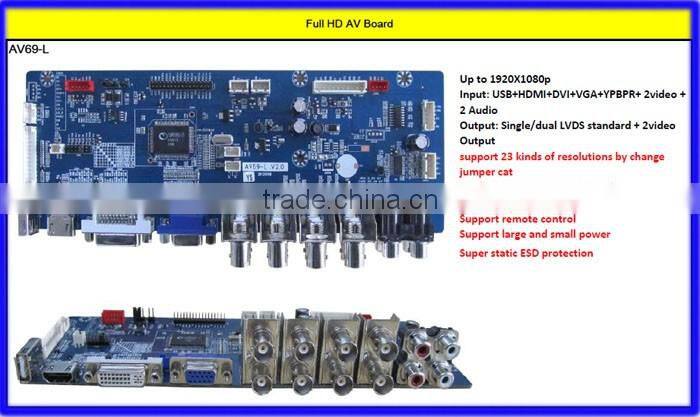

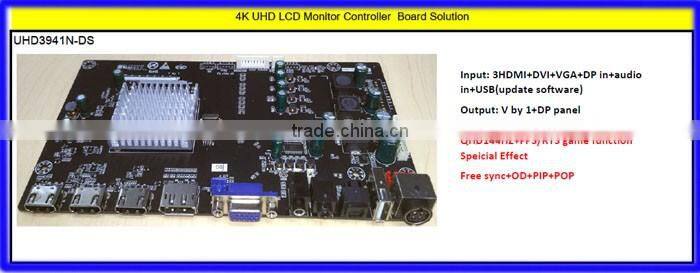

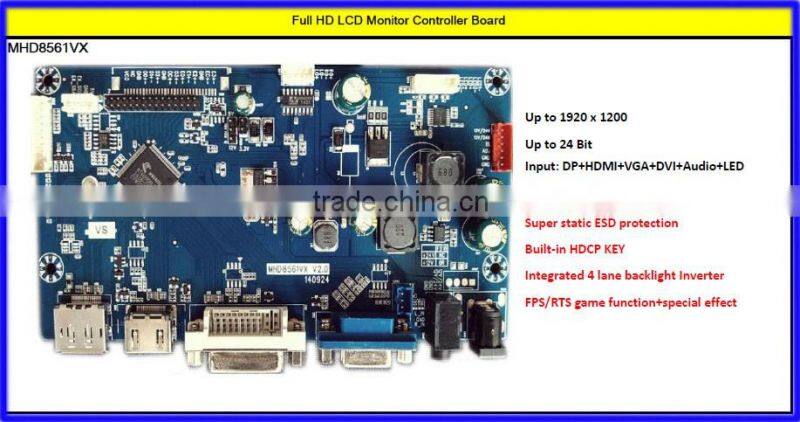

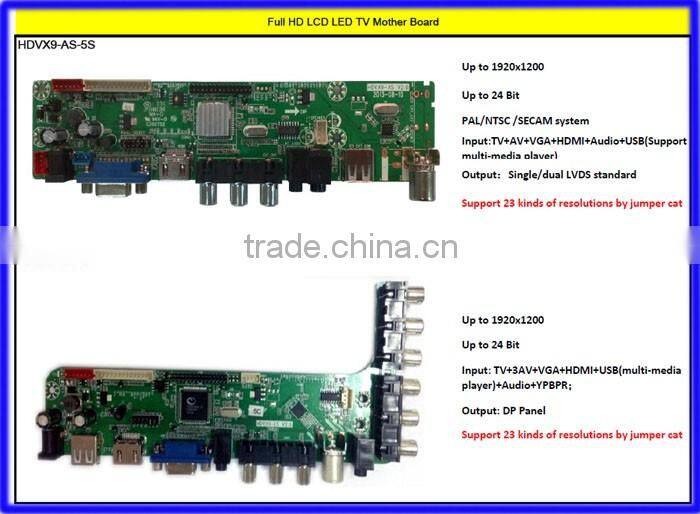

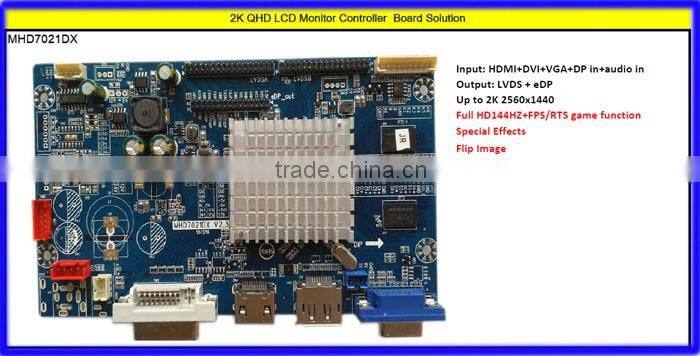

CND LCD monitor or TV Controller Driver Board Product Catagory

CND LCD monitor or TV Controller Driver Board Application:

Company Information

FAQ

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: We are using several panel. how to match and change the software?

A: Our software supports panel select by jumpet hat. no need change software for different panel.

Q: What's delivery time? what's the shipping methord?

A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.

Q: Who we are? what's our Brand?

A:We are CND Electronic Technology (ShenZhen) Co., Ltd.

CND is our registered Brand.

Q: What's our core product and services?

A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

1. Mobile-TV of High-speed Railway Train for CRRC, and for subway train;

2. Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc

3. Monitors of industrial control, for instance Security-montoring

4. Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've proud that

1. CND is the only AD board solution company whose 2K board have been sold more than 100K. and

2. We're the first company developed UHD 4K board solutions.

3.CND is the first one who have passed Freesync Cetification.

4. CND is the first one developed Type-C 4K *2K board.

5. Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...

6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension

CND is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
