4 Way LED Power Supply VGA DVI to LVDS LCD Controller Solution

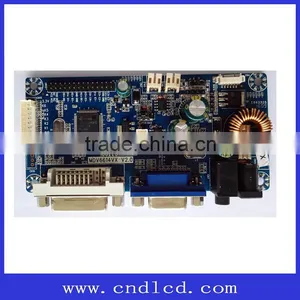

4 Way LED Power Supply VGA DVI to LVDS LCD Controller Solution thumbnail-1
4 Way LED Power Supply VGA DVI to LVDS LCD Controller Solution photo-1
US$ 4 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CND
Model Number:
MDV6614VX
Contact Supplier Request Quote Chat Now
CND Electronic Technology (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CND
Model Number MDV6614VX
Type TFT
Product Description

Product Name:  4 way LED power supply VGA DVI to LVDS LCD Controller Solution

Model No.: MDV6614VX V2.04 way LED power supply VGA DVI to LVDS LCD Controller Solution

General Description

     This Board MDV6614 is used for TFT LCD Panel for LCD Monitor,or Advertising Machine,Or Digital photo frame,support resolution up to WUXGA 1920x1200; WUXGA(1920X1200) dot to dot display, LVDS max output Full HD 1920X1200, Input Analog Signal: R G B for VGAand DVI, display color up to 24bit. Synchronous automatic detection happens when Line frequency is between 30 and 94.5HZ, Field frequency 56HZ to 75HZ.  Synchronous mode requires the Synchronous signal of line-field separation.

    It is with audio power amplifying function, output 2Wx2, volume can be adjusted by Pressing key. Also with LED backlight driver, it can drive LED panel not larger than 32inch.

  Product Feature Specification




Feature

Specification



Input Signals

VGA: Analog RGB(0.7Vp-p), Synchronous line-field separation(TTL)

DVI:TMDS

Support Model:

DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,

WSXGA, WSXGA+, WUXGA Etc.

Color:

24bit

Line frequency :

30-94.5KHz

Field frequency :

56-75Hz

Output Signal:

Doubl LVDS Standard

Audio Power Output:

8ohm 2Wx2 optional

Control Key

POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G

OSD Menu

Brightness, Contrast, Auto, Phase, Clock, Field Position, Function, Reset;

OSD Language:

Chinese, English, French, Italian, Arabian etc.

Power Input:

12 V(+/-0.6V)(DC)(without Amplifier, can be changed into 5V)

Power Operation:

Normal

Product Size:

107mm(L)x52mm(W)x16mm(H)

Plug & Play:

Support

Power Management:

Stanby Power Consumption <1W

















Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

4 way LED power supply VGA DVI to LVDS LCD Controller Solution4 way LED power supply VGA DVI to LVDS LCD Controller Solution4 way LED power supply VGA DVI to LVDS LCD Controller Solution
