Home > Consumer Electronics > Display & Accessories > LCD Module > V59 Universal LCD TV Main Board With Built-in Stero Loudspeaker, HDMI +VGA + USB

V59 Universal LCD TV Main Board With Built-in Stero Loudspeaker, HDMI +VGA + USB

US$ 6 - 8.5 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

HDVX9-AS-5S

Contact Supplier Request Quote Chat Now

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CND

Model Number HDVX9-AS-5S

Type TFT

Product Description

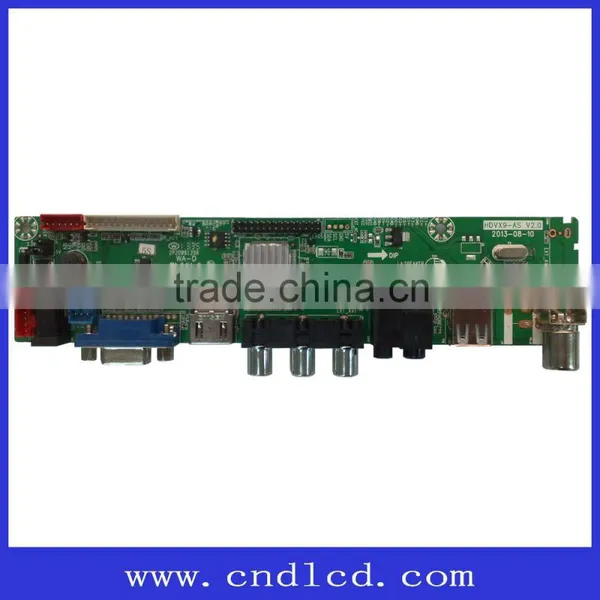

V59 Universal LCD TV Main Board with Built-in Stero Loudspeaker, HDMI +VGA + USB

Model No.: HDVX9-AS-5S

V59 Universal LED LCD TV Card Mother Board Key Features:

1. Compatible With Various analog TV system PAL/NTSC/SECAM

2. 3D board support

3. Reliable EMC and anti-static treatment;

4. Automatically detecting input video format;

5. LVDS output;

6. VGA +DVI +HDMI+USB inputs;

7. Built-in superior quality stereo speakers;

8. Multi OSD languages support;

9. Full HD 1920X1080 resolution TFT-LCD screen max support

10. Expanded port board supports 1~2 AV input,1AV output,1YPBPR input;

V59 Universal LED LCD TV Card Mother Board Product Specification:

IC	TSUMVV59XU-Z1
OSD LANGUAGE	Default Chinese/English, French, German, Italian , Spanish , Portuguese
PANEL	Interface	Single Dual LVDS,2X15 pins
	Resolution	Max 1920x1080@60Hz
Video Input	TV	Received frequency	49MHz – 863MHz
		Input impedance	75
		Color system	PAL, SECAM/NTSC
		Sound system	BG, DK, I, L/M,N
	PC Input	R,G,B+H/V	Max 1920x1080@60Hz
	HDMI	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	USB	USB document support format
	Video	Color system	PAL/SECAM/NTSC
	Video	Video range	1.0 Vp-p ±5%
Audio input	Computer	Earphone input	0.2 – 1.5 Vrms
Audio input	Video	L/R RCA Input	0.2 – 1.5 Vrms
Audio output	Frequency Response	100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal)
Power	Audio output	2x2W(8 ohm) THD+N<10%
	Input requirement	Single +12v
	Screen power supply	3.3V,5V, 12V
	Power management	Low power consumption mode, stand by <1W(depending on the power supply)

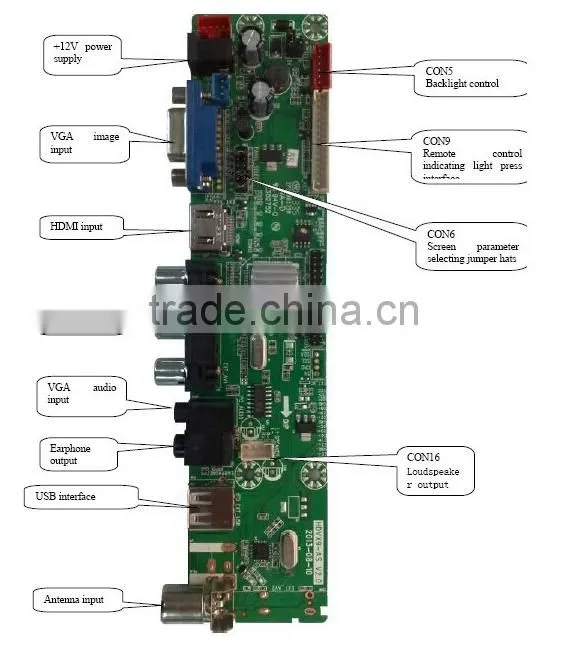

Port	Input	USB	1 USB horizontal socket
		HDMI	1 HDMI terminal
		Computer	1 D-SUB 15 pin terminal
		PC-RGB Audio	1 earphone socket(black)
		Video	1 RCA terminal(yellow)
		Audio	2 RCA terminals(white, red)
		TV	1 IEC connector 75
		Aberration	No

Packaging & Shipping

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

CND LCD monitor or TV Controller Driver Board Product Catagory

CND LCD monitor or TV Controller Driver Board Application:

Company Information

FAQ

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: We are using several panel. how to match and change the software?

A: Our software supports panel select by jumpet hat. no need change software for different panel.

Q: What's delivery time? what's the shipping methord?

A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.

Q: Who we are? what's our Brand?

A:We are CND Electronic Technology (ShenZhen) Co., Ltd.

is our registered Brand.

Q: What's our core product and services?

A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

1. Mobile-TV of High-speed Railway Train for CRRC, and for subway train;

2. Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc

3. Monitors of industrial control, for instance Security-montoring

4. Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've proud that

1. CND is the only AD board solution company whose 2K board have been sold more than 100K. and

2. We're the first company developed UHD 4K board solutions.

3.CND is the first one who have passed Freesync Cetification.

4. CND is the first one developed Type-C 4K *2K board.

5. Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...

6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension

CND is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
