Specifications
.universal lcd main board.Backlight: LED
.Resolution :HD 1920*1200
.Operating menu humanization
led driver controller board/led driver board/rgb usb hdmi interface

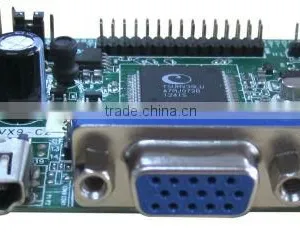

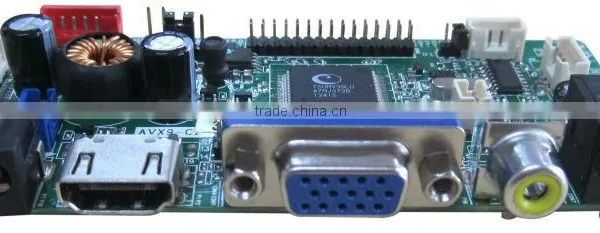

1.General description
AVX9 board is compatible with LCD panel of mainstream manufacturers,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on. It can support less than
26 inch LCD panels which resolution is up to 1920×1080.
2.Feature
.Main lcd driver borad for FULL HD 1920X1200 TFT-LCD panel
. VGA+HDMI+AV+Audio+USB+TV
. Working voltage:+12V
. OSD language:English, French, German, Italian, Spanish, Portuguese,
.support spatial noise reduction function
.support chroma instantaneous inpovement funtion
.it can treble or bass,stereo input
. Standby Power Consumption < 0.3W
.Support USB firmware upgrade and media player function
. Dimension(mm): 108mm(L)×51.3mm(W)×18mm(H)
. Competitive Price and high quaitly
.vedio audio singnal recognise automatically
.Dynamic brightness ajustment
specification :
| IC | TSUM39LU(can choseTSUM29LU) | ||
| OSD language | English , French , German, Italian, Spanish , Portuguese | ||
| Match panel | resolution | Max.:1920X1080 | |
| interface | Single/dualLVDS | ||
| voltage | 3.3V,5V,12V | ||
| Input signal | computer | Signal RGB(0.7Vp-p),Synchronous separation |
|
| video | Color sytem | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio | Earphone input | 0.2 – 1.5 Vrms | |
| Output signal | Audio | consumption:3W * 2 THD+N<10% | |
| socket:4Pin/2.0mm space | |||
| Control key | STANDARD SEVEN KEY:POWER/MENU/INPUT OPTION/CH+/CH-/VOL+/VOLCompatible |
||
| OSD menu: | Brightness, Contrast, Auto-correction, Horizontal &field position, |
||
Power supply |
4pin 2.0mm socket or 12V DC socket | ||
PCB |
108mm(L)×51.3mm(W)×18mm(H) | ||
.
our certification
ISO 9001:2008
packing:
waterproof bag and carton and 300 pieces packed in acarton.
