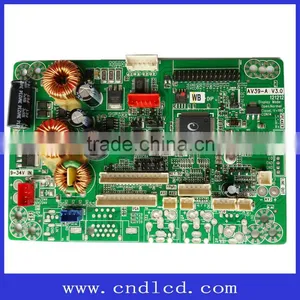

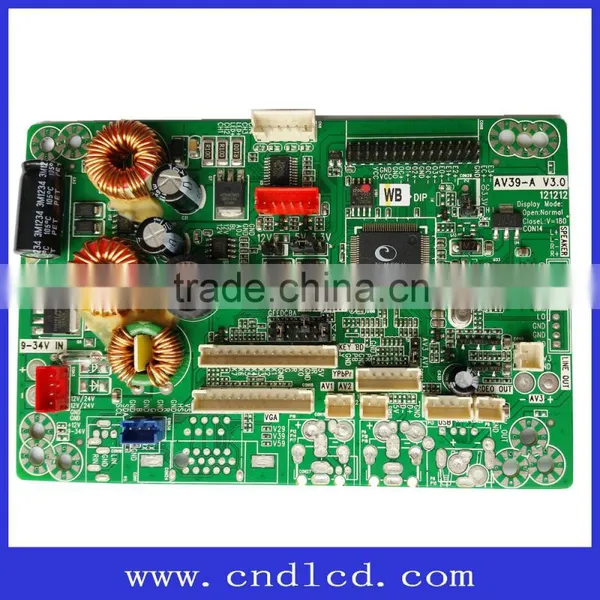

Product Name: LCD BNC Display board with HDMI VGA USB 2*AV support convert panel
Model No.: AVX9-CZ
General description
This wide range temperature A/D board is designed for industrial, marine and military grade LCDs. Its wide operational temperature range (-40 ~+80°C) can meet the requirements of the harsh ambient environments. It supports resolution from 640*480@60Hz up to 1920*1200@60Hz. This board has been applied to drive Mitsubishi, AUO, NEC LCD panels.
AVX9 board is compatible with LCD panel of mainstream manufacturers,Such
as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on. It can support less than
26 inch LCD panels which resolution is up to 1920×1080.
Key Feature
. LCD computer motherboard with vga hdmi usb
.Working voltage:+12V
.OSD language:English, French, German, Italian, Spanish, Portuguese,
.Standby Power Consumption < 0.3W
.Support USB firmware upgrade and media player function
.HDMI VGA USB 2*AV
. Single/Dual Channel LVDS
. Supporting up to1920*1080 resolution
Specification :
| IC | TSUM39LU(can choseTSUM29LU) | ||
| OSD language | English , French , German, Italian, Spanish , Portuguese | ||
| Match panel | resolution | Max.:1920X1080 | |
| interface | Single/dualLVDS | ||
| voltage | 3.3V,5V,12V | ||
| Input signal | computer | Signal RGB(0.7Vp-p),Synchronous separation |
|
| video | Color sytem | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio | Earphone input | 0.2 – 1.5 Vrms | |
| Output signal | Audio | consumption:3W * 2 THD+N<10% | |
| socket:4Pin/2.0mm space | |||
| Control key | STANDARD SEVEN KEY:POWER/MENU/INPUT OPTION/CH+/CH-/VOL+/VOLCompatible |
||
| OSD menu: | Brightness, Contrast, Auto-correction, Horizontal &field position, |
||
Power supply |
4pin 2.0mm socket or 12V DC socket | ||
|
|||
