3D Video decoding main Board Solution for Car Display
- 100000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | AVX9-CZ |
Type: | TFT |
Product Description
Product Name:

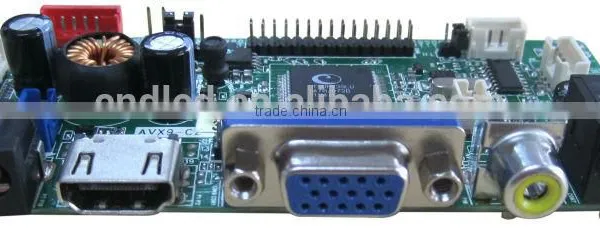

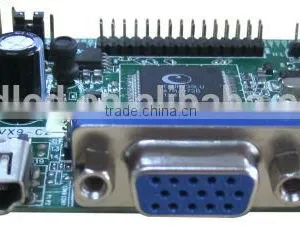

3D Video decoding main Board Solution for Car Display
Model No.: AVX9-CZ
Main Features & Application:
This board is compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on. IT can represent truly the color of image and sound in real world.Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip).
- It can support FULL HD 1920X1200 TFT-LCD panel
- ALL port can use pin socket
- One way HD digital multi-media port(HDMI)1.4,HDCP1.2 or DVI 1.0
- One way VGA input
- One way video input,can use RCA socket or BNC socket
- One way audio input,useø3.5 standard earphone socket.
- 3D video decoding(PAL/NTSC) bright color separation,space noise reducation function
- Automaticlly detecting Video input
- support4:3 and 16:9 display mode switch
- color OSD, Operating menu humanizatio
- Reliable EMC and treatment measure of anti-static
- 12V DC input
- Be used in car display,monitor system
- One way externer USB port,support updating
Product Specification:
IC | TSUM39LU(can choseTSUM29LU) | ||
OSD language | , English , French , German, Italian, Spanish , Portuguese | ||
Match panel | resolution | Max.:1920X1080 | |
interface | Single/dualLVDS | ||
voltage | 3.3V,5V,12V | ||
Input signal | HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |
computer | Signal RGB(0.7Vp-p),Synchronous separation line (TTL) | ||
video | Color sytem | PAL/SECAM/NTSC | |
Video range | 1.0 Vp-p ±5% | ||
Audio | Earphone input | 0.2 – 1.5 Vrms | |
|
| ||
|
| ||
Output signal |
|
| |
Audio | consumption:3W * 2(8ohm) THD+N<10% | ||
socket:4Pin/2.0mm space | |||
Control key | STANDARD SEVEN KEY:POWER/MENU/INPUT OPTION/CH+/CH-/VOL+/VOL- Compatible five key | ||
OSD menu: | Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction | ||
Power supply input: | 4pin 2.0mm socket or 12V DC socket | ||
PCB dimension: | 108mm(L)×51.3mm(W)×18mm(H) | ||
Plug andplay function: | support |
Why Choose CND?
Brief Introduction and Services:
1. Established in 2006, Located in ShenZhen, Over ten years experiences manufacturing.
2. Main products: Main board for LED/LCD monitors, TV, which applied in Computer, advertising, Vehicle, industrial, hospital, Financial industries, home appliance.
3. One-stop solution, save your costs & times;
4. With Strong R&D team, provide you professional technique supports and good service. we've kept investing 8% annual turnover on RD each year.
5. OEM/ODM and small/large orders are welcome;
6. High quality, On-time delivery, safe shipment, and excellent after-sale service.
7. In China, the biggest customers CRRC Corporation Limited, and Financial industrial such as ABC, BOC, CBC, etc.
