Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | AV6M16-E |
Type: | TFT |
Product Description
Product Name:

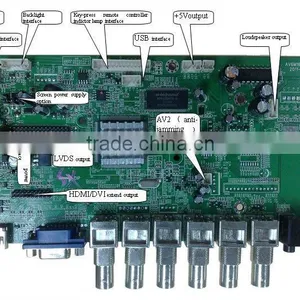

LCD Display Main Board Solution Manufacturer

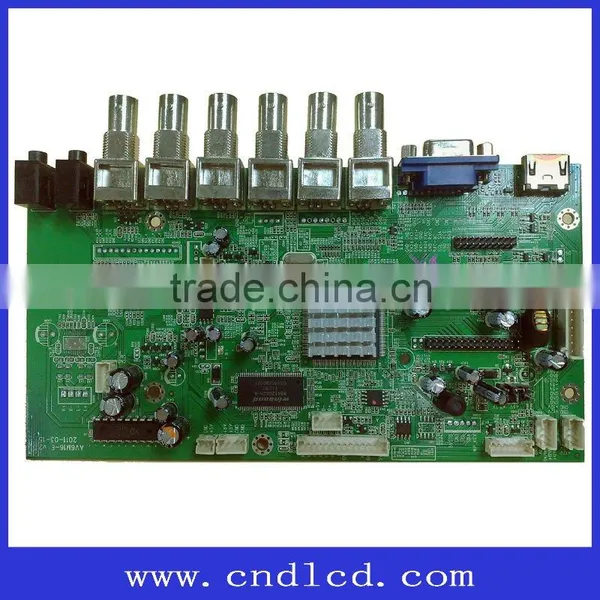

Model No.: AV6M16-E
Main Features & Application:
1. Analog High Definition port signal input maximum supported 1080P formats
2. the HDMI support to 1.3, HDCP support to 1.1
3. 3D video decode and luminance separation.
4. support 1080i's 3D video dynamic Adaptive line-by-line exchange
5. 3D video dynamic noise reduction
6. automatic 3:2 or 2:2 format test and restore; 4:3 or 16:9 switching over, non-linear scaling images
7. The MSTAR third generation ACE picture engine, it can adjust dynamically picture's color , contrast ratio, definition and so on
8. Perfect industrial set mode, convenience for productive maintenance.;
9. Dependable EMC and electrostatic prevention processing method
10. Standby <1w (according to AC the electrical source to decide), energy conservation.
11. True colour OSD, humanization operation menu, support some high level function like channel editing

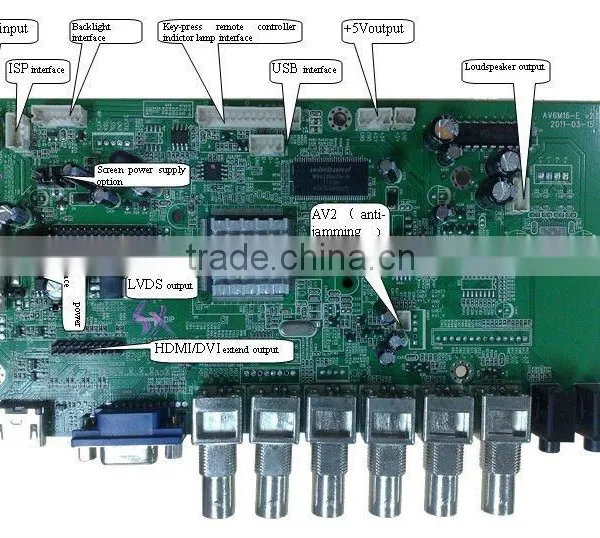

12. Support USB2.0 interface
Product Specification:
SCREEN | TYPE | TFT-LCD |
RESOLUTION | Max.:1920X1080 | |
INTERFACE | SIGNAL/DUAL 8/10bit LVDS; | |
VOLTAGE | 3.3V,5V,12V | |
PC-RGB | MODE | DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA |
HORIZONTAL SYNC RANGE | 30-75KHz | |
FIELD SYNC RANGE | 56-75Hz | |
DISPLAY COLORS | 16777216 | |
MAX MODE | 1920X1080@60Hz | |

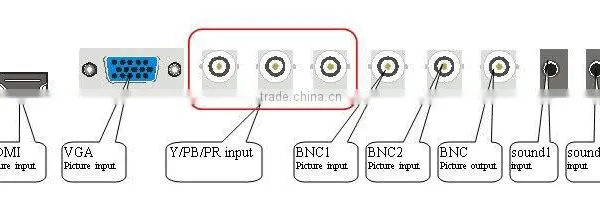

INPUT SIGNAL | AV/ S-Video/ YPBPR | COLOR SYSTEM:PAL/NTSC/SECAM SYSTEM |
AVSIGNAL: CVBS/1.0Vp-p@75ohm | ||
S-VIDEO:Y:1Vp-p@75ohm /C: 0.286Vp-p@75ohm | ||
480i/P,576i/P,720P,1080i/P | ||
BNC OPTION: BNC INPUT, BNC OUTPUT | ||
RGB | SYNC : HORIZONTAL Field SEPARATION ,TTL, POSITIVE OR NEGATIVE | |
SIGNAL RANGE : 0.7Vp-p@75ohm | ||
HDMI/DVI | SOPPORT FORMAT: 480i/P,576i/P,720P,1080i/P | |
COMPATIBLE: HDMI 1.3 /HDCP 1.2 | ||
Audio | SIGNAL RANGE : 500mV rms | |
USB | SUPPORT MP3 JPG PICTURE | |
OUTPUT SIGNAL | AV | SIGNAL RANGE :CVBS 1.0Vp-p |
Audio | POWER : 3W * 2 | |
SOCKET:4Pin/2.0mm SPACE | ||
CONTROL KEY-PRESS | FIVE/SEVEN KEY(OPTION):POWEER/MENUU/INPUT OPTION/CHANNEL+/CHANNEL-/VOLUME+/VOLUME- | |
OSD MENU: | Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction | |
OSD LANGUAGE(OPTION): | Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Turkish | |
POWER INPUT: | B:5Vstb,12V,5V ,5V/12V | |
EXTERNAL Adapter: 12VDC | ||
SIZE : | 189.0mm(L)×100mm(W)×18mm(H) | |
PLUG&PLAY FUNCTION : | SUPPORT |
