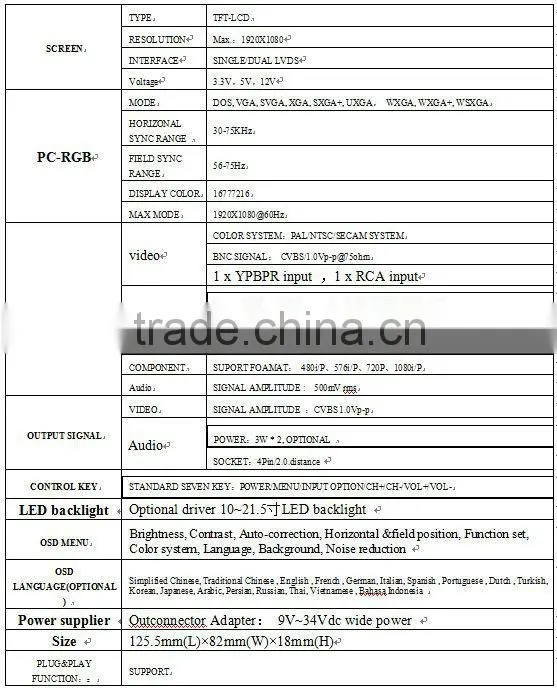

Specifications
1 Wholesale Alibaba Lcd Color Tft Technology Ad Board2 180 degree completely inverted screen function
3 With LED backlight

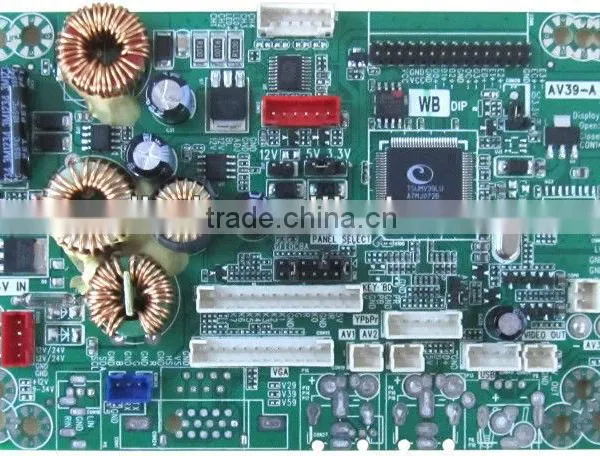

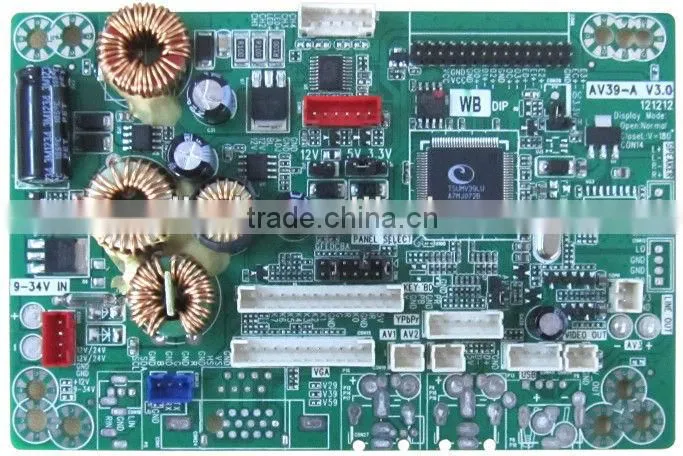

Wholesale Alibaba Lcd Color Tft Technology Ad Board
1. The driver board is mainly used in the field of vehicle-mounted,safety surveillance, which can realize OSD and 180 degree completely inverted screen function , while solved sound interference coexisted in mainstream manufacturers of in-vehicle LCD
2. Screen of TFT-LCD or LED resolution is up to 1920*1080,
3. Compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on .
4. IT can represent truly the color of image and sound in real world.
5. Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip),has mature and stable system.
6. Jumper cap to choose a positive screen or 180 degrees down screen
7. Selection resolution by jumper cap
8. Selection Universal Video inputs or anti-jamming video input by jumper cap
9. Automatically detect input video format
10. Self contained LED backlight driver module
11. 9V~34Vdc wide power input
12. Frame rate conversion
13. 2.5D video decoding ,brightness separation, 3D video dynamic noise reducation
14. 3D video dynamic Adaptive line-by-line exchange
15. Automatic 3:2 and 2:2 format detect and restore
16. 4:3 and 16:9 switching over, non-linear scaling images
17. Color OSD, Operating menu humanization
18. MSTAR ACE-5picture engine, it can adjust dynamically picture's color , contrast ratio, definition etc.
19. Reliable EMC and treatment measure of anti-static
20. Supports control of treble or bass ,Stereo input(optional)
Feature
Professional patent from CND
ISO9001:2008
Proudct display
My Factory has worker more than 700 people ,area 1200 square meters at Xixiang city Baoan district with high technology mechina and professional worker
Package way with plastic bag and Box
Our Storage housware
