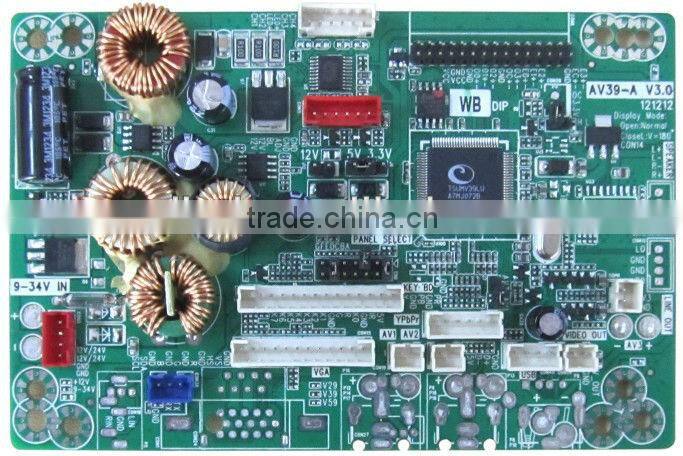

Lcd Display Control Board With High Technology Wholesale (AV39-WBL)

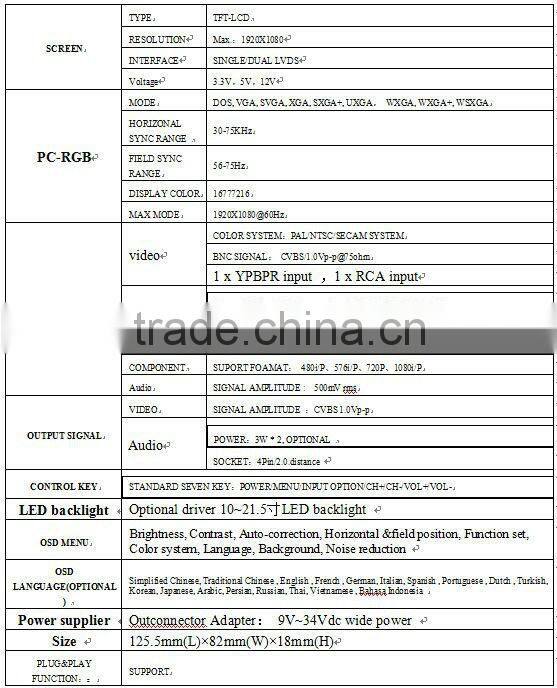

Specifications

1 Lcd Display Control Board With High Technology Wholesale Alibaba(AV39-WBL)
2 180 degree completely inverted screen function

  Lcd Display Control Board With High Technology Wholesale Alibaba(AV39-WBL)

1. The driver board is mainly used in the field of vehicle-mounted,safety surveillance, which can realize OSD and 180 degree completely inverted screen function , while solved sound interference coexisted in mainstream manufacturers of in-vehicle LCD

2. Screen of TFT-LCD or LED resolution is up to 1920*1080,

3. Compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on .

4. IT can represent truly the color of image and sound in real world.

5. Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip),has mature and stable system.

6. Jumper cap to choose a positive screen or 180 degrees down screen

7. Selection resolution by jumper cap

8. Selection Universal Video inputs or anti-jamming video input by jumper cap

9. Automatically detect input video format

10. Self contained LED backlight driver module

11. 9V~34Vdc wide power input

12. Frame rate conversion

13. 2.5D video decoding ,brightness separation, 3D video dynamic noise reducation

14. 3D video dynamic Adaptive line-by-line exchange

15. Automatic 3:2 and 2:2 format detect and restore

16. 4:3 and 16:9 switching over, non-linear scaling images

17. Color  OSD, Operating menu humanization

18. MSTAR ACE-5picture engine, it can adjust dynamically picture's color , contrast ratio, definition etc.

19. Reliable EMC and treatment measure of anti-static

20. Supports control of treble or bass ,Stereo input(optional)

                                                                      Feature

Professional patent from CND







                                                                                        ISO9001:2008





                                                    Proudct display







   My Factory has worker more than 700 people ,area  1200 square meters at Xixiang city Baoan district with high technology mechina and professional worker









 Package way with plastic bag and Box





      Our Storage housware
