Home > Electrical & Electronics > Passive Components > Capacitor > Full HD DVI Input LCD Controller Board

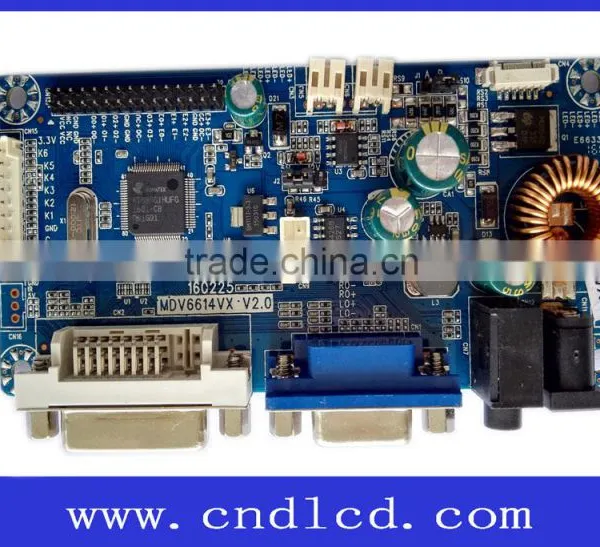

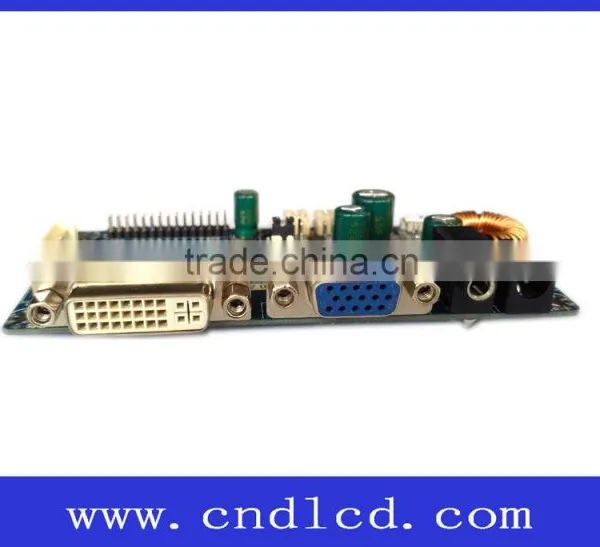

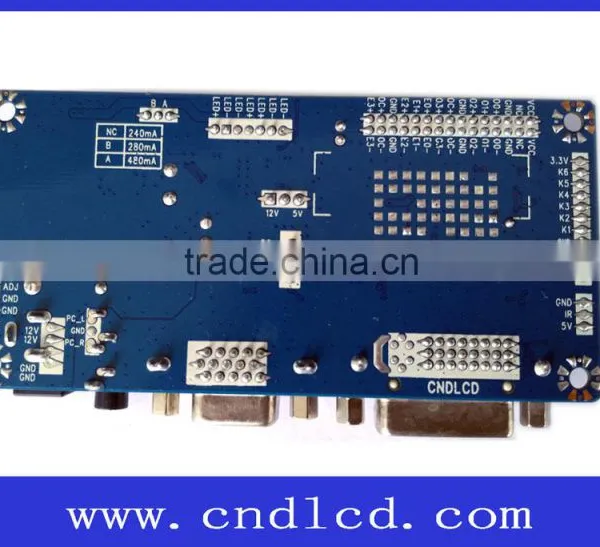

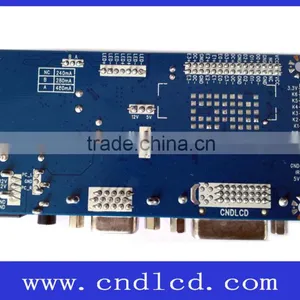

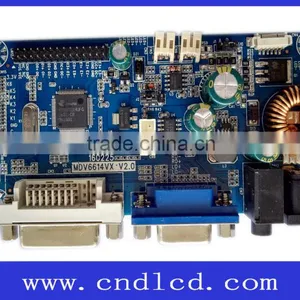

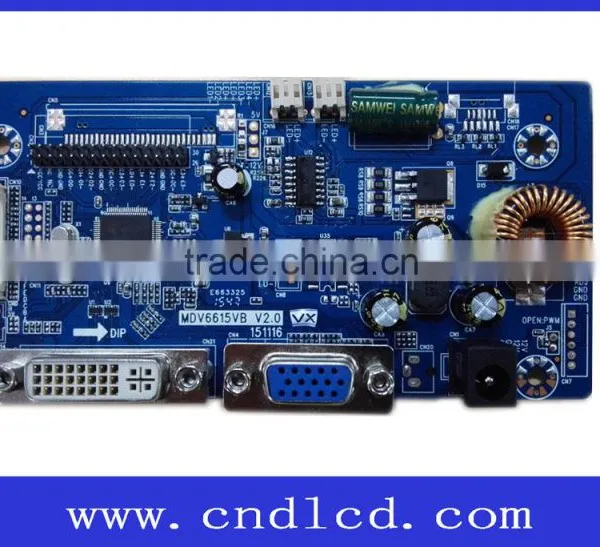

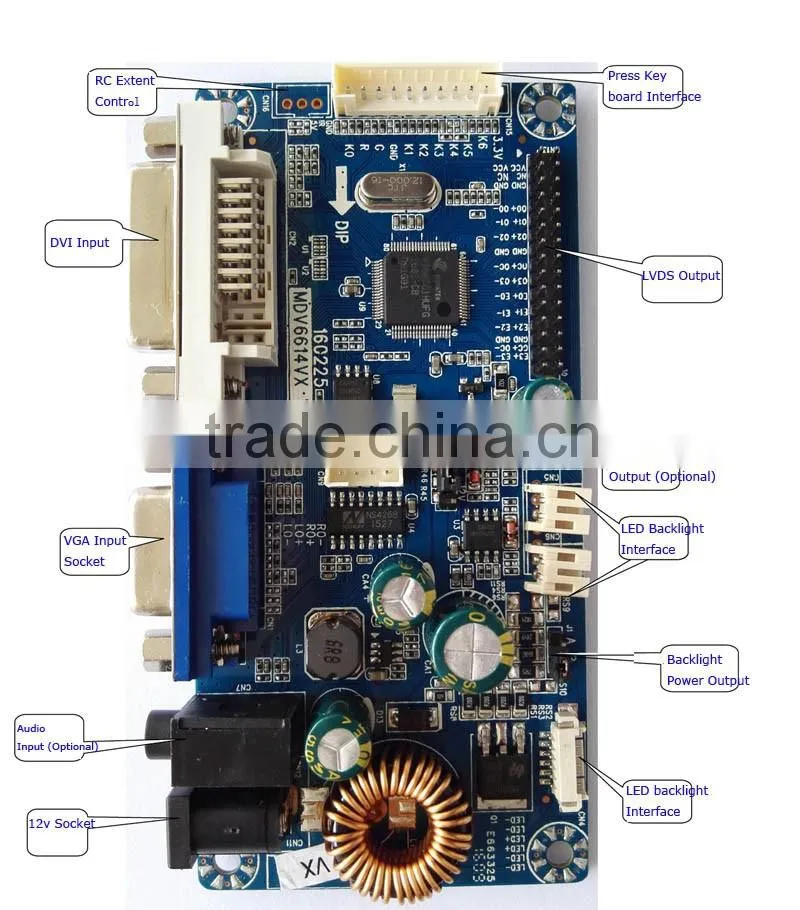

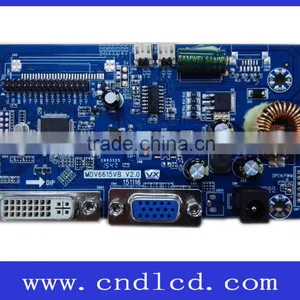

Full HD DVI Input LCD Controller Board

Full HD DVI Input LCD Controller Board thumbnail-3

Full HD DVI Input LCD Controller Board thumbnail-4

Full HD DVI Input LCD Controller Board photo-1

Full HD DVI Input LCD Controller Board photo-2

Full HD DVI Input LCD Controller Board photo-3

Full HD DVI Input LCD Controller Board photo-4

US$ 4.6 - 5 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

MDV6614

Contact Supplier Request Quote Chat Now

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CND

Model Number MDV6614

Product Description

Product Name: Full HD DVI Input LCD Controller Board

Model No.: MDV6614VX V2.0

Cheap Price Monitor AD Controller Board Key Feature

Used for TFT LCD Panel for LCD Monitor,or Advertising Machine,Or Digital photo frame,
Support resolution up to WUXGA 1920x1200; WUXGA(1920X1200) dot to dot display;
LVDS max output Full HD 1920X1200;
Input Signal: VGA + DVI;
It is with audio power amplifying function, output 2Wx2, volume can be adjusted by Pressing key;
Also with LED backlight driver, it can drive LED panel not larger than 32inch.

Cheap Price Monitor AD Controller Board Specification

Feature	Specification
Input Signals	VGA: Analog RGB(0.7Vp-p), Synchronous line-field separation(TTL)
Input Signals	DVI:TMDS
Support Model:	DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA, WSXGA+, WUXGA Etc.
Color:	24bit
Line frequency :	30-94.5KHz
Field frequency :	56-75Hz
Output Signal:	Doubl LVDS Standard
Audio Power Outpur:	8ohm 2Wx2 optional
Control Key	POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G
OSD Menu	Brightness, Contrast, Auto, Phase, Clock, Field Position, Function, Reset;
OSD Language:	Chinese, English, French, Italian, Arabian etc.
Power Input:	12 V(+/-0.6V)(DC)(without Amplifier, can be changed into 5V)
Power Operation:	Normal
Product Size:	107mm(L)x52mm(W)x16mm(H)
Plug & Play:	Support
Power Management:	Stanby Power Consumption <1W

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

Packaging & Shipping

FAQ

Q: Who we are? what's our Brand?

A: We are CND Electronic Technology (ShenZhen) Co., Ltd.

is our registered Brand.

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen, very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: What's delivery time? what's the shipping methord?

A: 3 days for some items in stock; and 15 days if out of stock, shipment via sea or air as customer requested.

Q: What's our core product and services?

A: AD/ AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc
Mobile-TV of High-speed Railway Train for CRRC, and for subway train;
Monitors of industrial control, for instance Security-montoring
Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've been proud that

CND is the only AD board solution company whose 2K board have been sold more than 100K.
CND is the first company developed UHD 4K board solutions.
CND is the first one who have passed Freesync Cetification.
CND is the first one developed Type-C 4K *2K board.
Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...
Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension

CND is the best choice for LCD / LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
