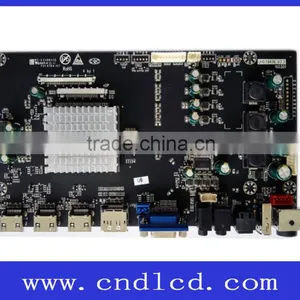

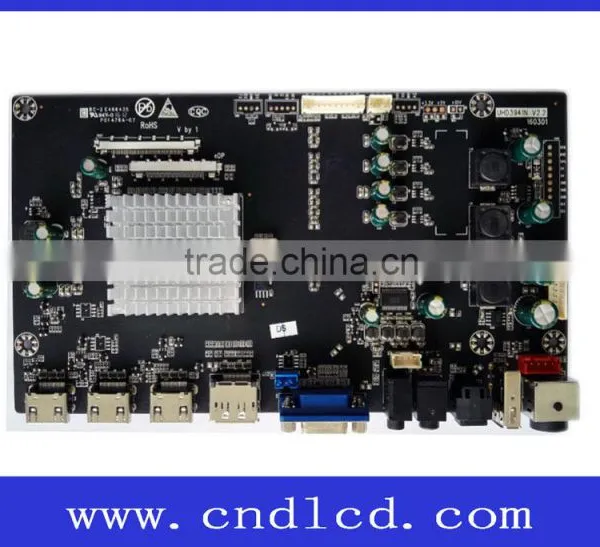

Product Name: UHD 4K x2K 4096* 2560 resolution LCD eDP & V by one Monitor Driver Board
Model No.: UHD3941N
VGA+3HDMI+2 DP+USB(Software Upgrading)
4K x 2K/QHD144HZ
FPS/RTS With Game Function + Special Effects
FREE SYNC
PIP PBP POP
4K* 2K LCD Monitor Controller Driver Board General Description:
- Adoption of 4K 4096*2160@60Hz 2K UHD(Ultra High Definition) single chip solution,
- With optional screen interfaces V by 1, and DP.
- It is mainly used for UHD Display, Security Monitor system, Medical system, Commercial Advertising Display.

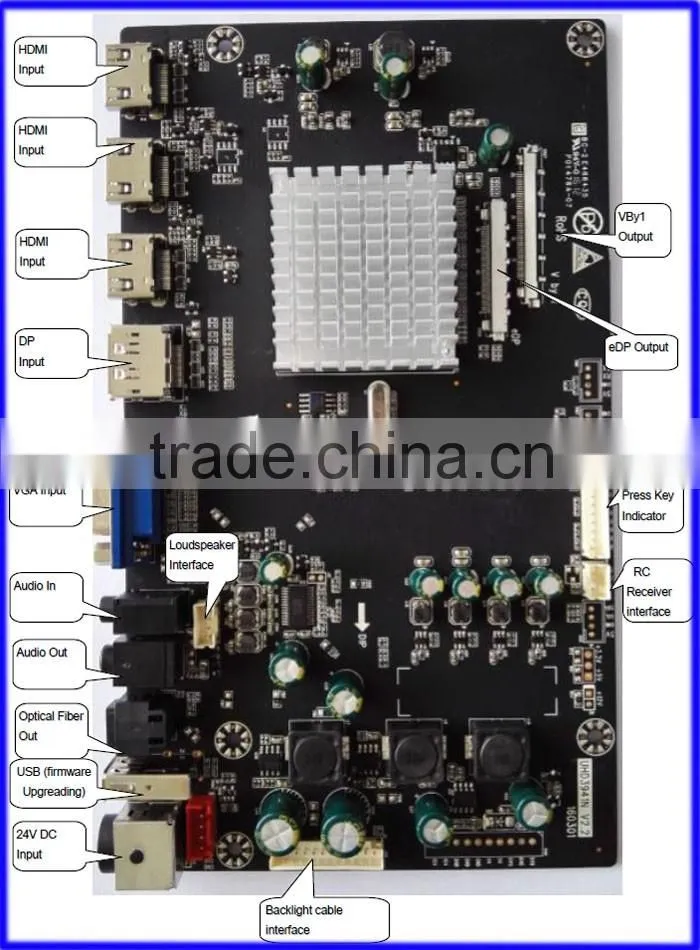

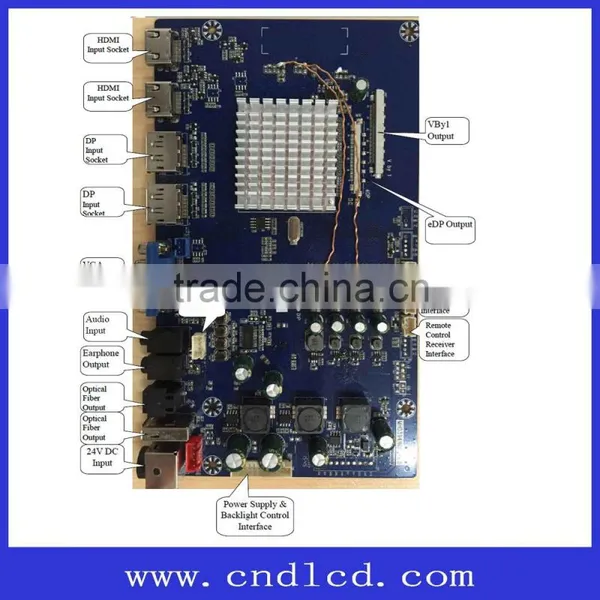

- Inputs: DPx2, HDMIx3, VGAx1, USBx1(for Software upgrading only)
- Compatible with External Power Supply +24v, and Built-in Large Power Supply (STB/+5VS/+5V/+12V)
- HDMI 2.0, Compatible with MHL3.0
- DP V1.2A
- VGA Input Max Support UXGAVGA@75Hz;
- Stereo Earphone input x1, and Stereo Earphone output x1
Feature |
Specification |
Input Signals |
1-way VGA |
2-way DisplayPort V1.2a. (4Kx2K@60Hz) | |
2-way HDMI 2.0/MHL3.0(4Kx2K@60Hz) | |
1-way USB(only for Firmware Upgrading) | |
Output |
DPTX 2.7G/5.4G |
V-by-one | |
MAX:(4Kx2K@60Hz) | |
OSD Control Key Pad |
POWER,+,-,MENU,AUTO |
OSD Menu |
Brightness, Contrast, Auto, Function, Reset |
OSD Language(Optional) |
English French German Chinese Italian Spanish Turkey Dutch Korean Russian etc |
Power Supply |
24V 4-hole DC Socket, Compatible with Built-in Large Power(STB/+5VS/+5V/+12V) |
Audio Power Output |
3WX2(4ohm) |
Power Operation |
Normal Mode |
Plug & Play |
Support |
Power Management |
Stand-by <0.5W |
PCBA Dimension |
200mm * 115mm * 18mm |
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Flexible Software to meet any custom request;
