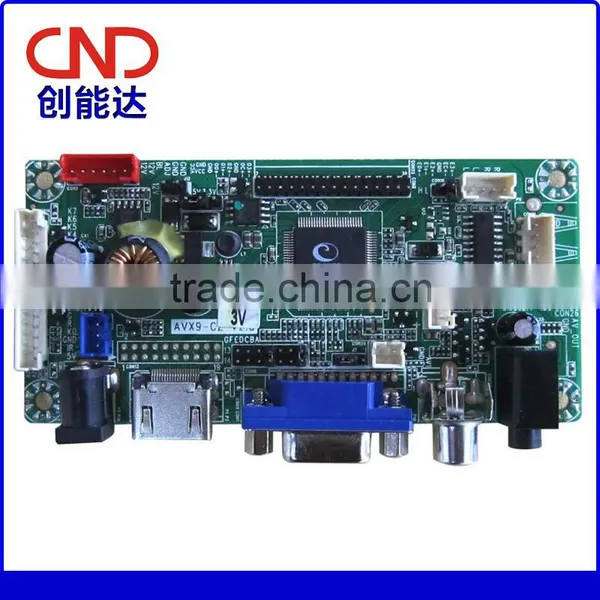

AV monitor Full HD TFT BNC security monitor control board
- 10000 Piece / Pieces per Month
- FOB HK
- Digital thermometer hygrometer used for travelling weather station pocket type
- Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
- Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
- Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
- MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
- Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | HDVX9-CZ |
Type: | TFT |
Product Description
General discription

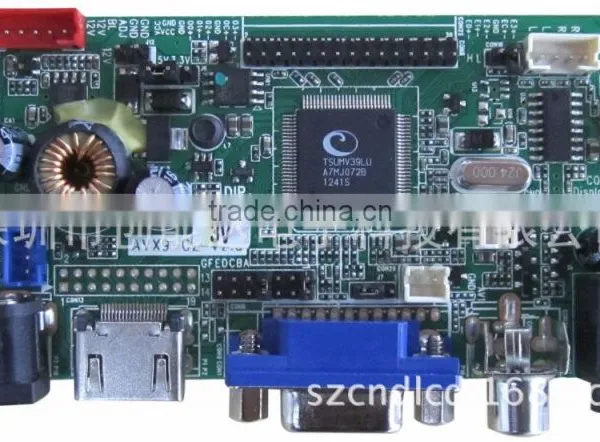

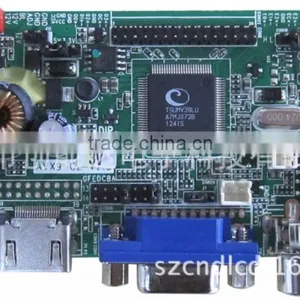

The driving board compatible for SAMSUNG, CMO, AUO, LGP,SHARP,BOE etc. Market main manufacturer LCD board. It can re-appear image color and sound of the real world. Main IC adopts case of MSTAR single chip TSUM39LU
Max.supports TFT-LCD screen with full HD 1920X1200 resolution
All ports are accessible of plug-in sockets.
One HDMI 1.4,HDCP1.2 or DVI 1.0
One VGA input
One video input, possible for plugging in RCA socket or BNC iron socket.
One audio input, using ø3.5 universal earphone socket.
3D video decode (PAL/NTSC).Separated brightness and color, space low noise function.
Automatically detect video input format.
Support screen display mode switch between 4:3 and 16:9
Colorful OSD, humanized operation menu.
Reliable EMC and antistatic handling measurement.
12V direct power supply input.
Used for vehicle-mounted and monitoring system.
One extensive USB port, supporting updating online
Product feature

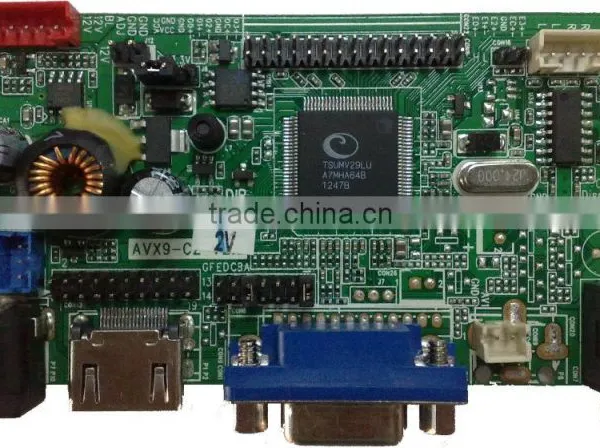

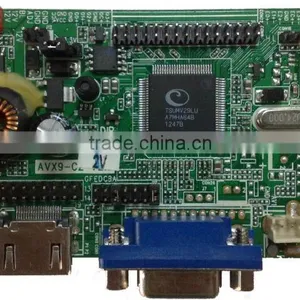

chip | TSUM39LU(TSUM29LU for option) | ||
OSD language,for option | English,French,German,Italian,Spanish,Portuguese and so on. | ||
screen | resolution | Max.:1920X1080 | |
interface | single/dual LVDS | ||
voltage | 3.3V,5V,12V | ||
Input signal | HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |
computer | Imitating RGB(0.7Vp-p),horizontal and field synchronization separated (TTL) | ||
video | Color system | PAL/SECAM/NTSC | |
Video range | 1.0 Vp-p ±5% | ||
audio | Earphone input | 0.2 – 1.5 Vrms | |
|
| ||
|
| ||
Output signal |
|
| |
audio | power:3W * 2(8ohm) THD+N<10% | ||
socket:4Pin/2.0mm pin | |||
press key | Standard seven keys:power supply/input selection/menu/CH+/CH-/V+/V- Compatible for five keys. | ||
OSD menu: | Brightness,contrast ratio,autocorrection,horizontal and field location,function installation, color system,language,background,noise reduction | ||
Power supply input: | 4pin 2.0mm socket or 12V DC socket | ||
PCB measurement: | 108mm(L)×51.3mm(W)×18mm(H) | ||
Plug and play: | support |

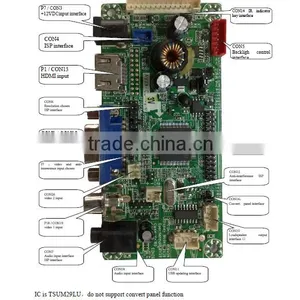

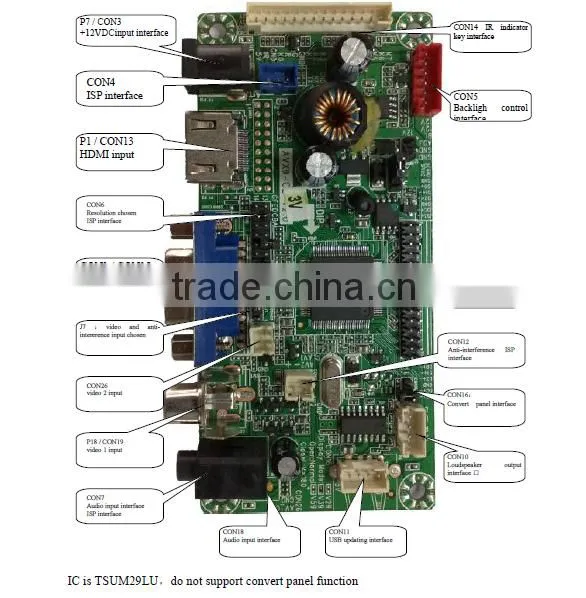

Noted:It doesn’t support screen pouring when chip is TSUM29LU.
Q: Where are you located? How can I get there?
Our office is in Shekou Nanshan Shen Zhen. It's very close to Shekou port. it take just 1h from HK airport to Shekou port.
Q: We are using several panel. how to match and change the software?
Our software can panel select auto by jump hat. no need change software for different panel.
Q: What's your main board quality . if any problem how to solver that as we are not in Shen zhen can't bring back to China.
We are be sure 100% product quality . we offer 12 months warranty. if any defective. we can send free components with next order shipment.
Q: What's delivery time? what's the shipping method?
15 days delivery time after get deposit. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.
