General Description

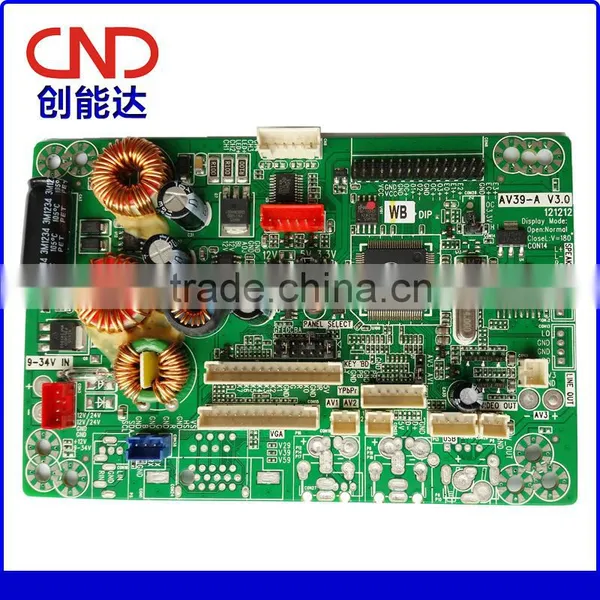

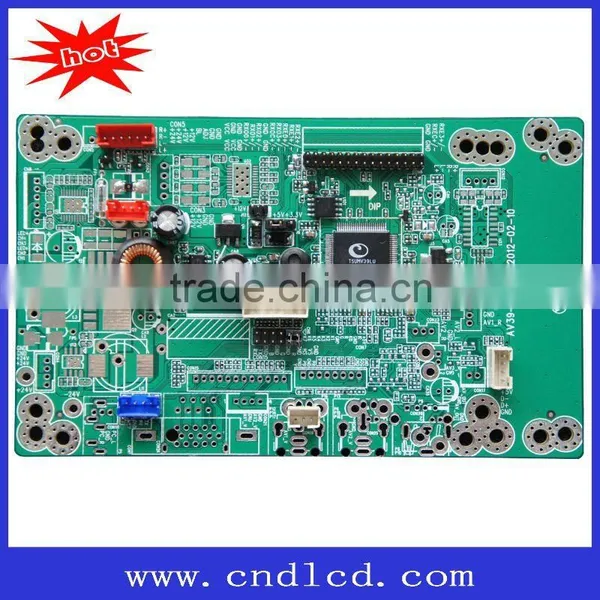

The driver board is mainly used in the field of vehicle-mounted,safety surveillance, which can realize OSD and 180 degree completely inverted screen function , while solved sound interference coexisted in mainstream manufacturers of in-vehicle LCD ,Screen of TFT-LCD or LED resolution is up to 1920*1080,Compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on .IT can represent truly the color of image and sound in real world. Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip),has mature and stable system.
- jumper cap to choose a positive screen or 180 degrees down screen
- selection resolution by jumper cap
- Selection Universal V ideo inputs or anti-jamming video input by jumper cap
- Automatically detect input video format
- Self contained LED backlight driver module
- 9V~34Vdc wide power input
-
Frame rate conversion
- 2.5D video decoding ,brightness separation, 3D video dynamic noise reducation
-
3D video dynamic Adaptive line-by-line exchange
- Automatic 3:2 and 2:2 format detect and restore
-
4:3 and 16:9 switching over, non-linear scaling imagesØ MSTAR ACE-5 picture engine, it can adjust dynamically picture's color , contrast ratio, definition etc.
- Color OSD, Operating menu humanization
- Reliable EMC and treatment measure of anti-static
Supports control of treble or bass ,Stereo input(optional
We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to provide you with excellent service of processing!
We sincerely welcome you to visit our company or contact us for cooperation!
Q: Where are you located? How can I get there?
Our office is in Shekou Nanshan Shen Zhen. It's very close to Shkou port. it taked just 1h from HK airport to Shekou port.
Q: We are using several panel. how to match and change the software?
Our software can panel select auto by jump hat. no need change software for different panel.
Q: What's your main board quality . if any problem how to solver that as we are not in Shen zhen can't bring back to China.
We are be sure 100% product quality . we offer 12 months warranty. if any defective. we can send free components with next order shipment.
Q: What's delivery time? what's the shipping methord?
15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.
