OEM A36 Steel Grating

Name: OEM A36 Steel Grating
Brand: jiuwang
SKU: 134029373

US$ 5 - 55 MOQ: 18 Square Meters

Key Specifications

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

carbon steel

Dimensions:

32*5

Hebei Jiuwang Metal Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade carbon steel

Dimensions 32*5

Place of Origin Hebei, China

Brand Name jiuwang

Model Number G325/15/50

Type Light

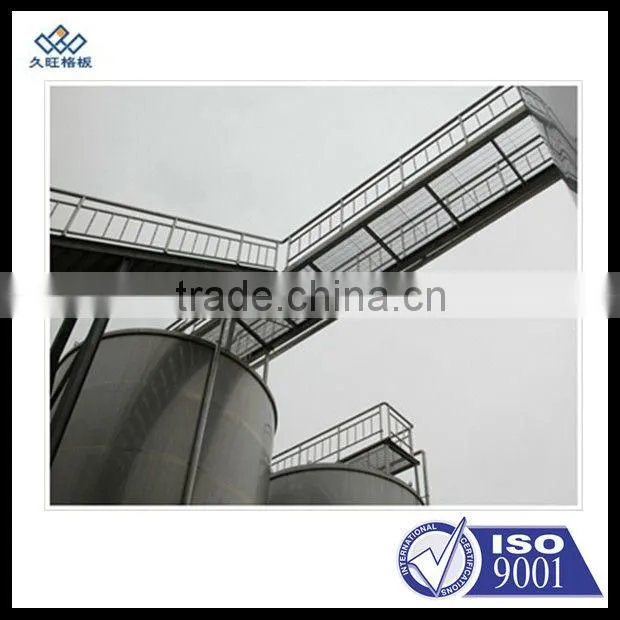

Application Steel Walkway And Floor

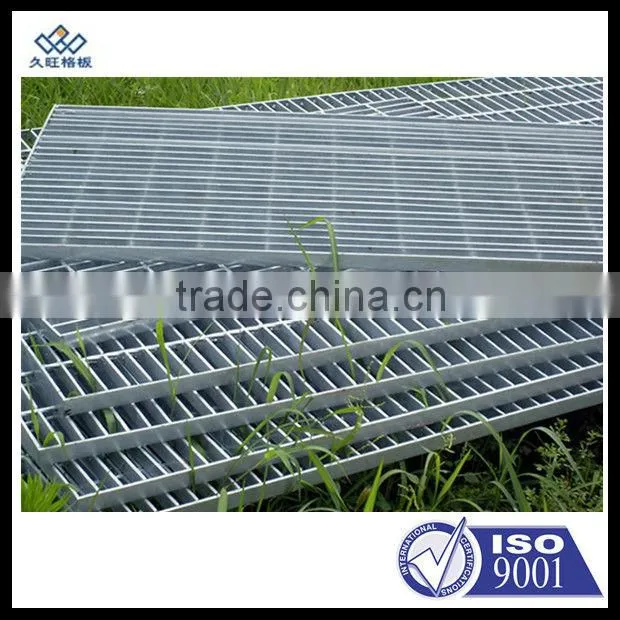

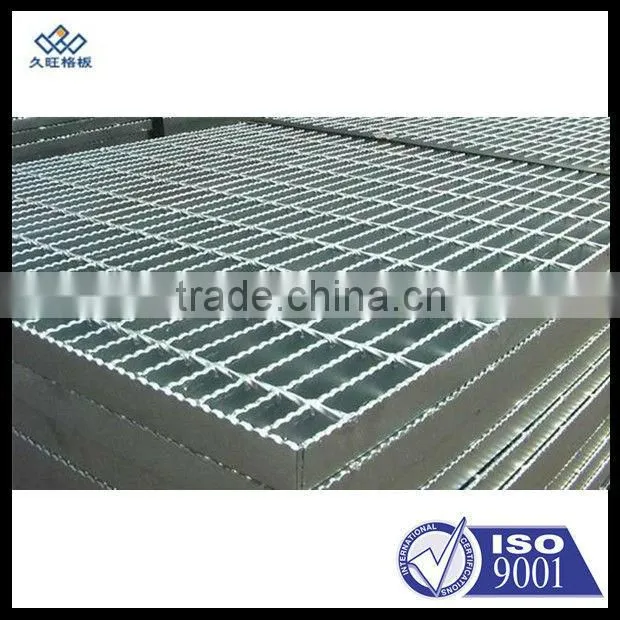

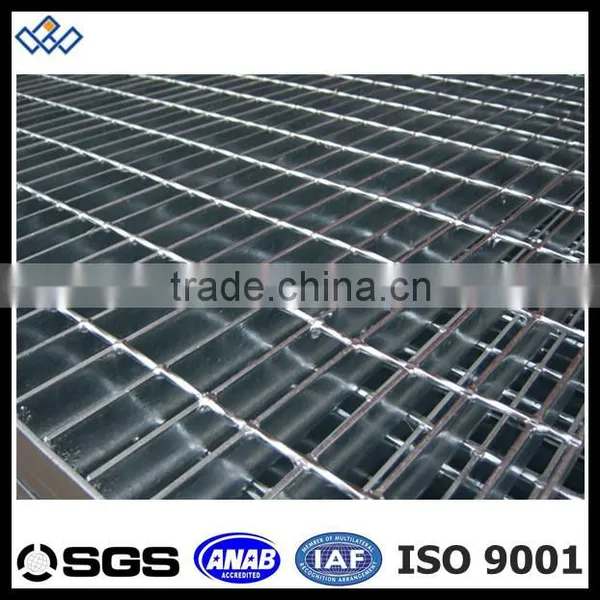

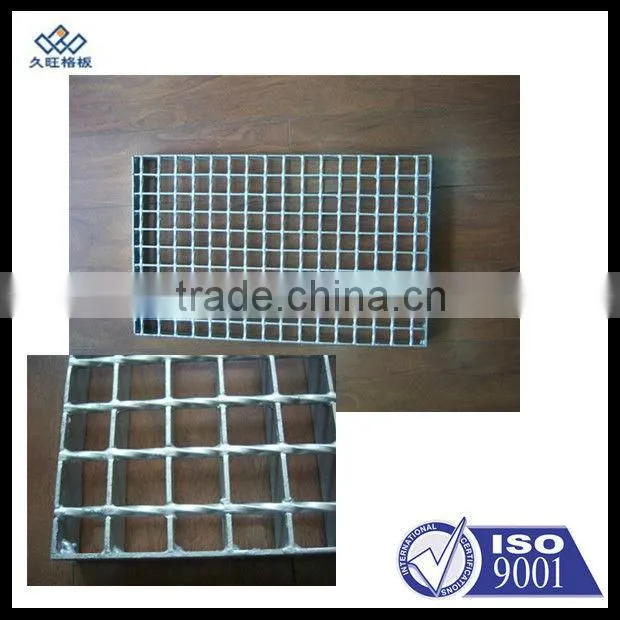

OEM A36 steel grating

Product details:

Model No.	G325/15/50
Bearing bar thickness (mm)	5
Bearing bar width (mm)	32
Cross bar diameter (mm)	6
Bearing bar pitch/distance (mm)	15
Cross bar pitch/distance (mm)	50
Surface treatment	galvanized
Standard	China: YB/T4001.1-2007 UK: BS4592-1-1995 USA: ANSI/NAAMM(MBG531-88) Australia: AS1657-1985
Certificate	ISO9001

Other details:

Package	Safety package or naked
Delivery	Within 20-30 days after receiving the deposit
Payment terms	EXW: 100% T/T. FOB: T/T, 30% deposit, 70% balance payment before shipping. CIF: T/T, 30% deposit, 70% balance payment at the sight of copy of B/L.
HS code	7308900000
Price validity	Within 7 days

Common sizes of steel grating:

Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar load width× thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Item No.	Bearing Bar Pitch	Cross Bar Pitch	Specification of bearing bar load width× thickness
Item No.	Bearing Bar Pitch	Cross Bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
