Help CenterAustralia AS3996 CLASS B/CLASS D Trench Grating
Related Products
-
Fan Steel Grating ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters -
Hebei Jiuwang Mild Steel Grating Supplier- ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Hebei Jiuwang Customized Irregular Shape Grating Supplier- ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Hebei Jiuwang Customized Shape Grating Supplier- ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters
-
Special Shaped Grating Supplier- ISO 9001 WITH 20years FactoryUS$ 10 - 30MOQ: 10 Square Meters

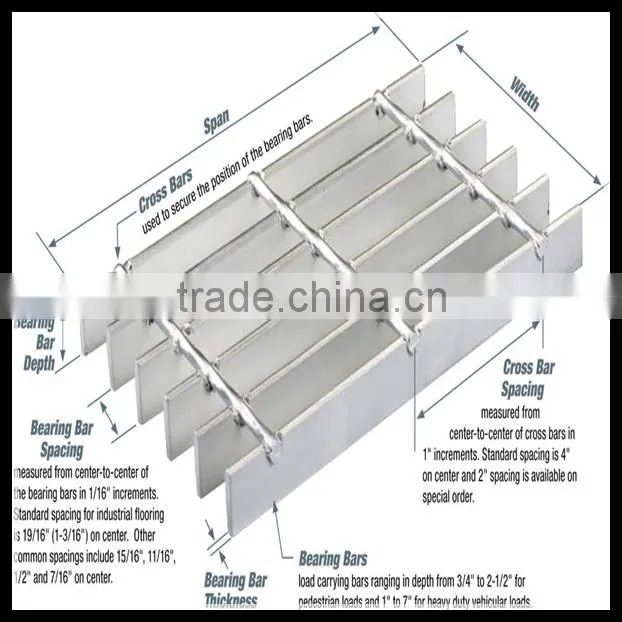

1.what is HDG trench grating ?(galvanized trench grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products
Bearing bar pitch |
Cross bar pitch |
load steel size ( Width ×Thickness) |
|||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Bearing bar pitch |
Cross bar pitch |
load steel size (Width ×Thickness) |
|||||
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
3. HDG steel trench grating common introduction
Features: |
Durable, heat-resistant wear-resisting, fight stress is strong. |
|
Useage:
|
Widely used in coal, mining, petroleum, chemical industry in the screening and filtration, dehydration, desliming etc . It has very high strength and carrying capacity, Our company can make various shapes of screening filtering device according to customer request.
|
Material: |
Carbon steel, Stainless steel and so on |
|
Surface treatment:
|
Hot-dipped-galvanized ,electro galvanized or PVC coated ....
|
Size: |
Standard or OEM(Making as the customers request). |

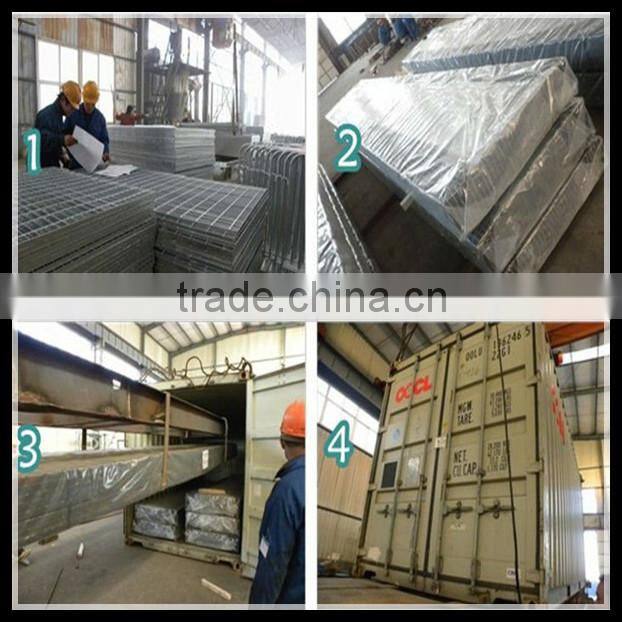

Packing: |
Naked or packing as the customers reques
|

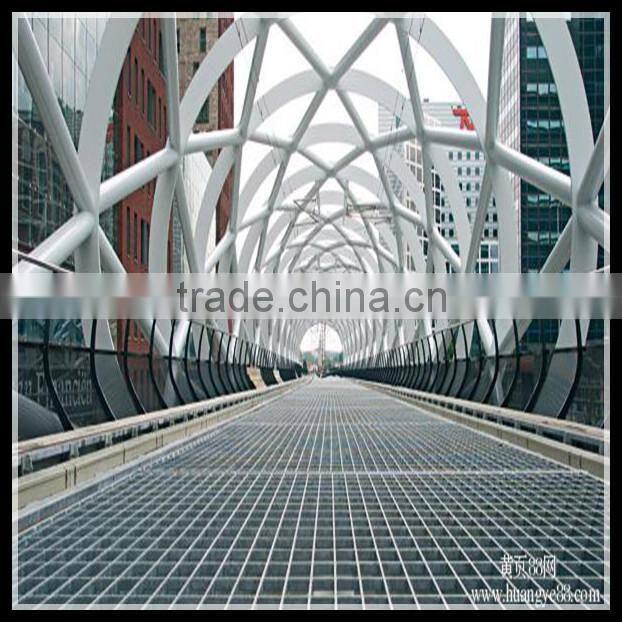

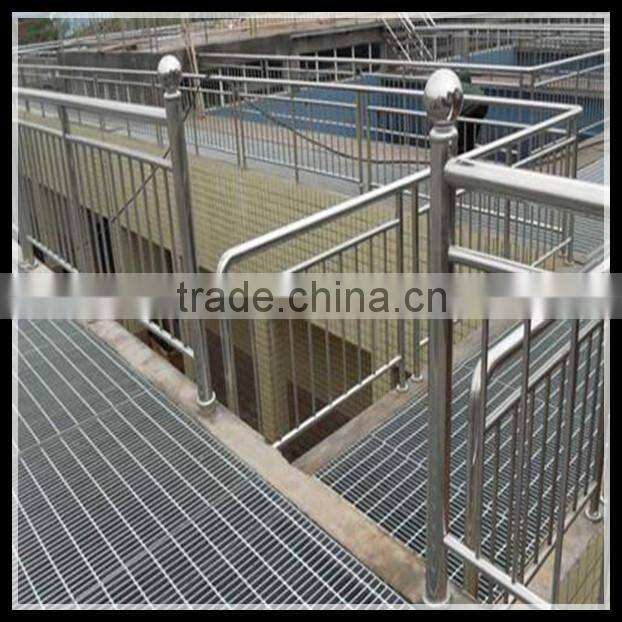

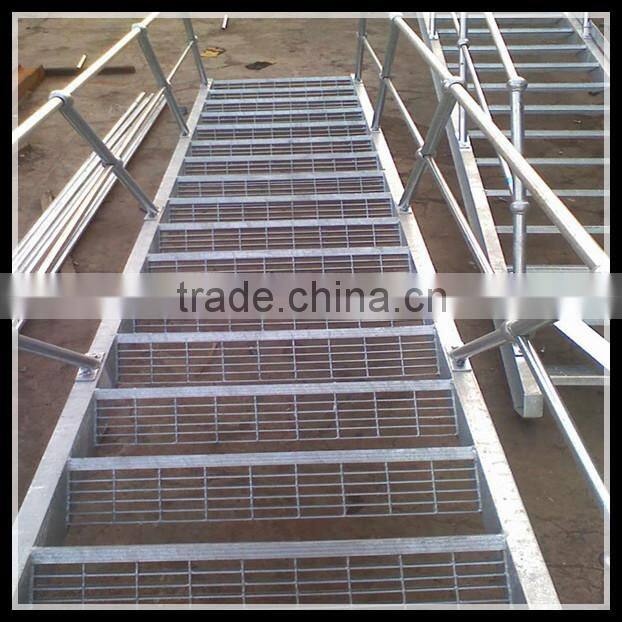

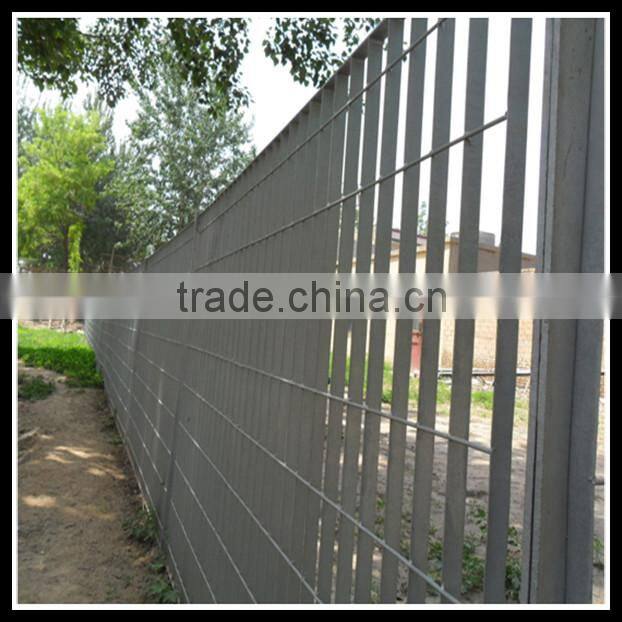

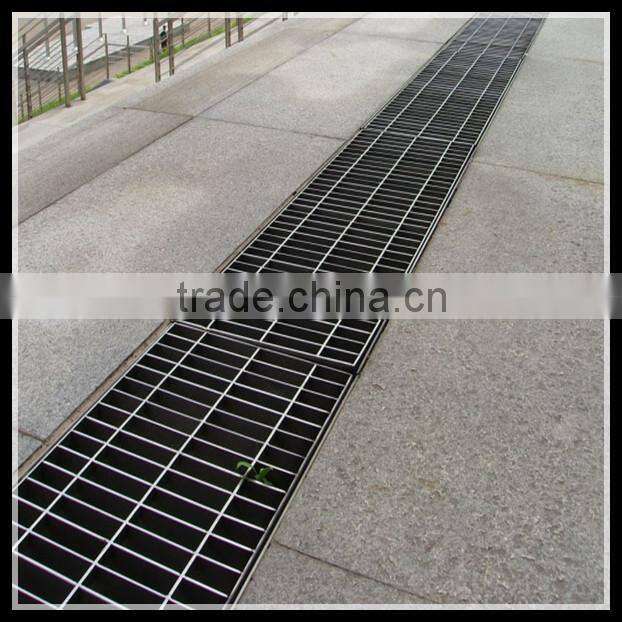

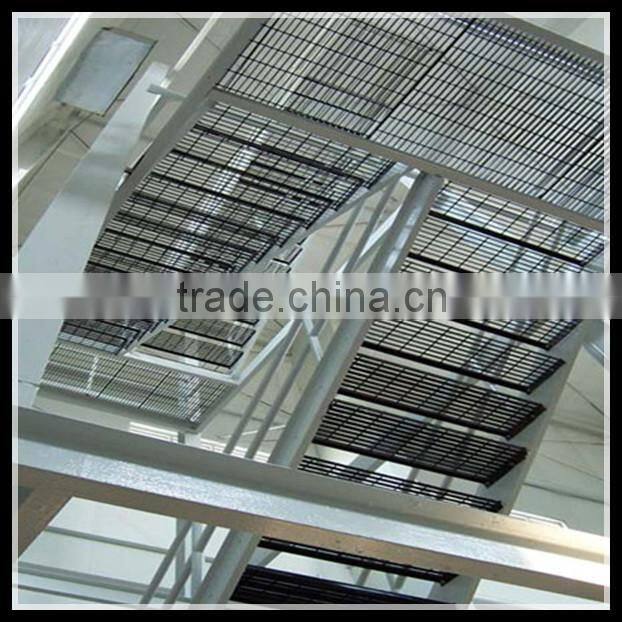

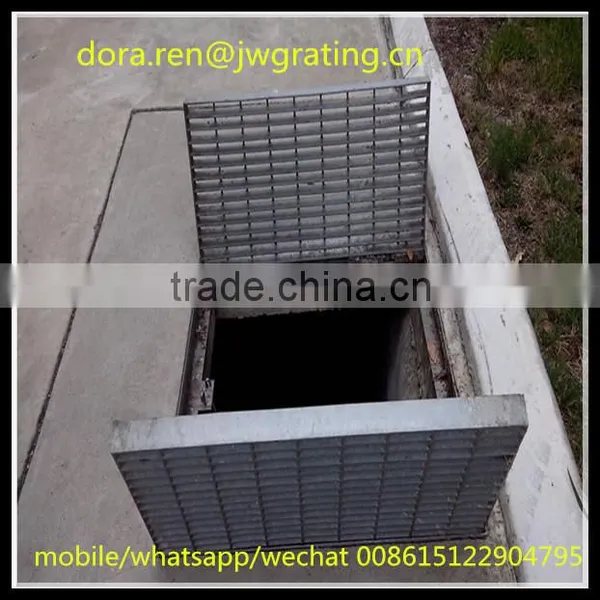

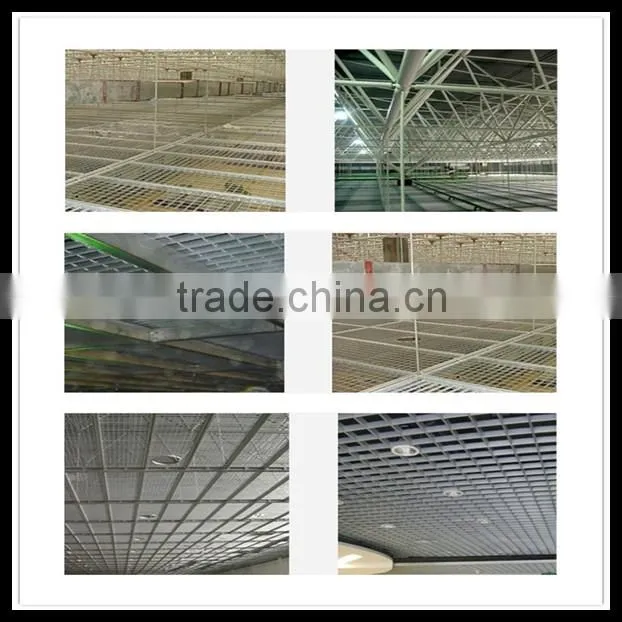

4.steel trench grating application
