platform floor steel grating specification
- 220000 Square Meter / Square Meters per Month
- tianjin
- T/T
- galvanized steel dock walkways grating ISO 9001 WITH 20years factory
- steel grating for humid floor or a dark, very humid,oil &greasy environment ISO 9001 WITH 20years factory
- pedestrian walkway grating manufacturer ISO 9001 WITH 20years factory
- galvanized steel grating walkway
- galvanized catwalk
- steel grating platform
Product Details
Place of Origin: | Hebei, China | Brand Name: | JIUWANG | Model Number: | 19-W-4; 15-W-2,12.5/25/30/32.5/35/40/50mm.etc |
Material: | Other, Steel, steel |
Product Description

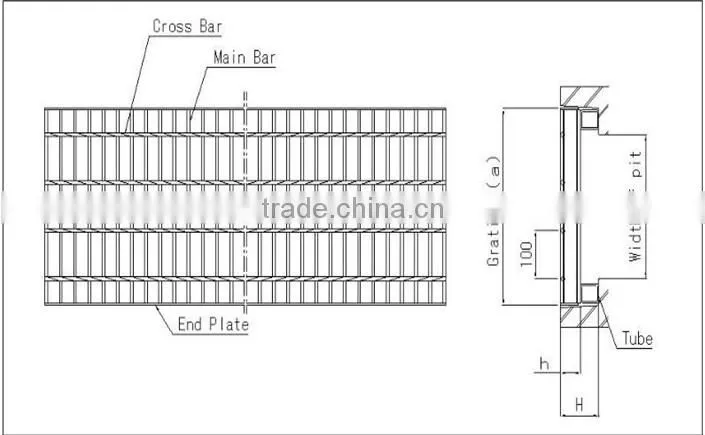

Specifications
1.steel grating specification2. tenstile &corrosion
3.beautiful surface
4.hot dipped galvanized
1.what is steel grating ?(galvanized steel grating ) --Hebei Jiuwang Metal Wire Mesh Co., Ltd has approved ISO 9001-2000 Quality Management System in 2001. Main products include steel grating, stair treads & industrial ladder, trench grating cover, handrails, grating clips, cable tray , which are used in Petrochemical Industry, Oil Fields, Boiling Platform, Seaport and Vessel Construction, Power Plant, Industrial Floor Platform, Municipal Engineering and so on.
Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
3.platform floor steel grating payment & delivery details
Package Safety package or naked
Delivery Within 20-30 days after receiving the deposit
Payment terms EXW: 100% T/T.
FOB: T/T, 30% deposit, 70% balance payment before shipping.
CIF: T/T, 30% deposit, 70% balance payment at the sight of copy of B/L.
HS code 7308900000
Price validity Within 7 days
4.steel grating application
