Specifications
1.offshore oil platform grating2. tenstile &corrosion
3.beautiful surface
4.hot dipped galvanized
5.ISO9001

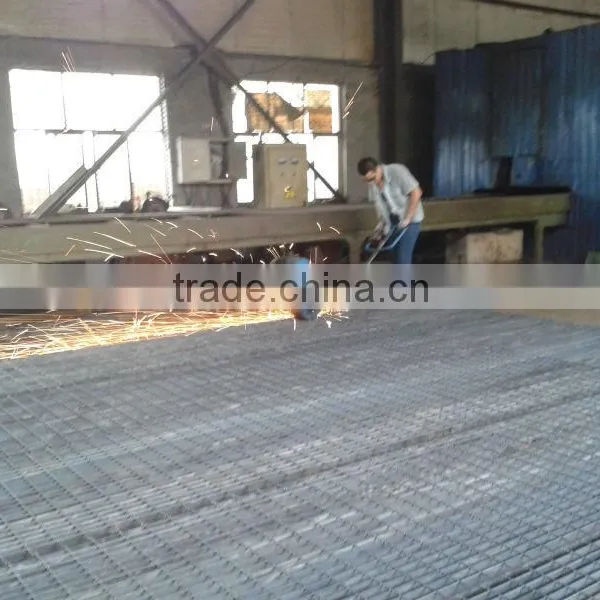

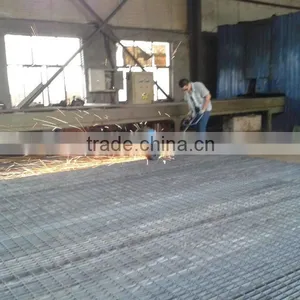

1.what is off shore oil platform steel grating ?( steel platform & walkway grating ) -- steel grating ( platform grating ) is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products
2. HDG offshore oil platform grating specification Bearing bar pitch |
Cross bar pitch |
load steel size ( Width ×Thickness) |
|||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Bearing bar pitch |
Cross bar pitch |
load steel size (Width ×Thickness) |
|||||
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
3.international standard - offshore oil platform grating
Steel Grating Standard | |||
|
Steel Grating Standard |
Steel Standard |
Galvanizing Standard |
China Standard |
YB/T 4001.1-2007 |
GB700-88 |
GB/T13912-2002 |
USA Standard |
ANSI/NAAMM (MBG531) |
ASTM (A36) |
ASTM (A123) |
U.K. Standard |
BS4592 |
BS4360 (43A) |
BS729 |
Australia Standard |
AS1657 |
AS3679 |
AS1650 |
Deutsche Standard |
DIN24537 |
DIN17100-80 |
DIN50976 |
4. offshore oil platform grating common introduction-
Features: |
Durable, heat-resistant wear-resisting, fight stress is strong. |
|
Usage:
|
Widely used in coal, mining, petroleum, chemical industry in the screening and filtration, dehydration, desliming etc . It has very high strength and carrying capacity, Our company can make various shapes of screening filtering device according to customer request.
|
Material: |
Carbon steel, Stainless steel and so on |
|
Surface treatment:
|
Hot-dipped-galvanized ,electro galvanized or PVC coated ....
|
Size: |
Standard or OEM(Making as the customers request). |
Packing: |
Naked or packing as the customers reques
|
5.delivery terms- hot dip galvanized off shore oil platform steel grating
Delivery |
Within 15-20 days after receiving the deposit |
Payment terms |
EXW: 100% T/T. FOB: T/T, 30% deposit, 70% balance payment before shipping. CIF: T/T, 30% deposit, 70% balance payment at the sight of copy of B/L. |
HS code |
7308900000 |
Price validity |
Within 7 days |

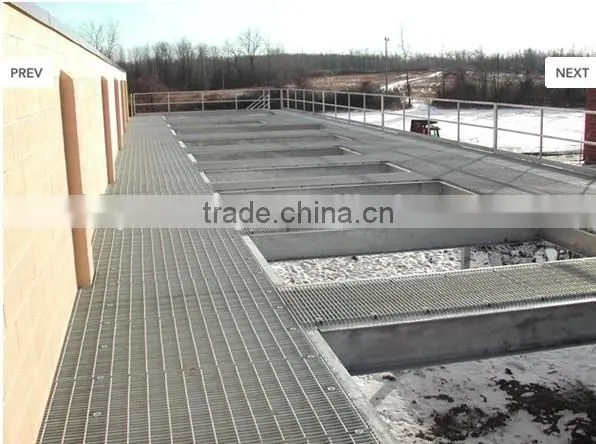

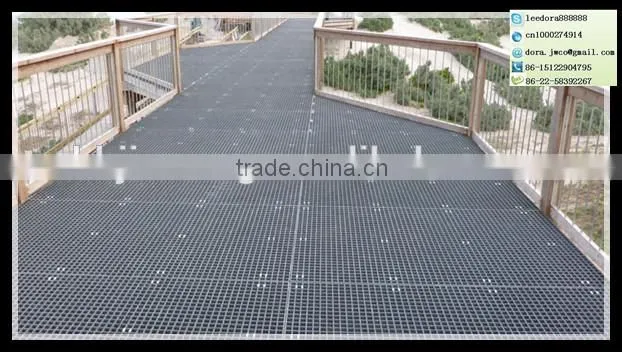

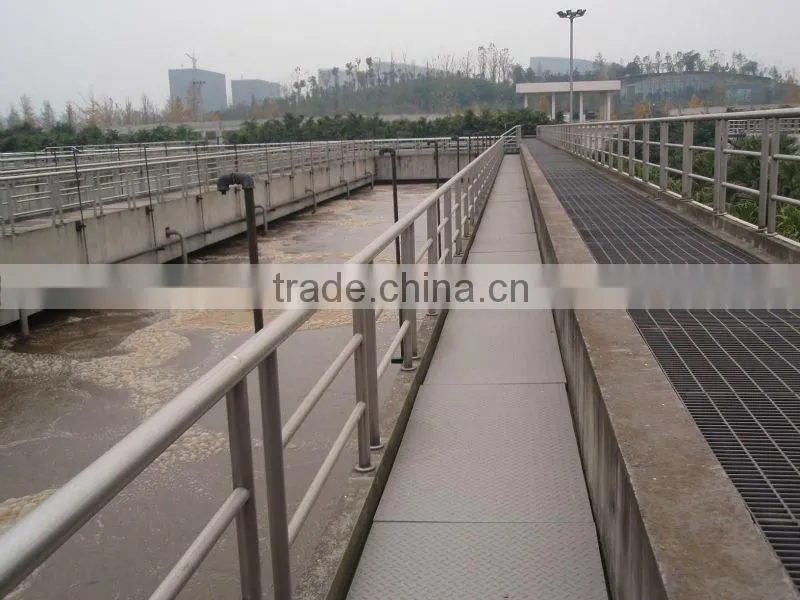

6 hot dip galvanized offshore oil platform grating application
