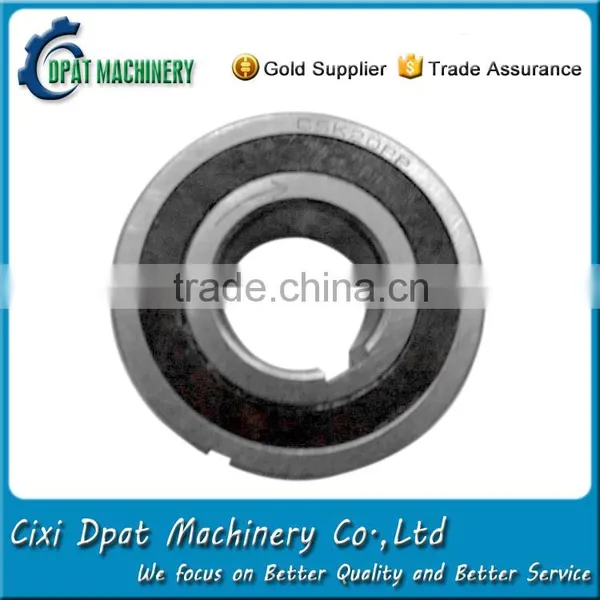

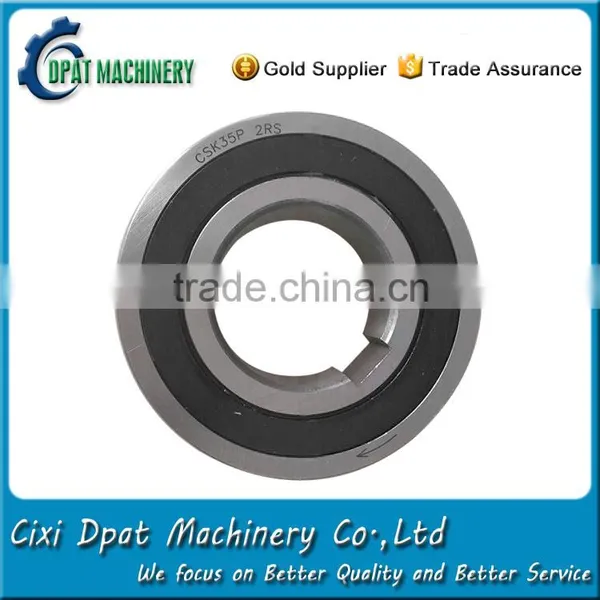

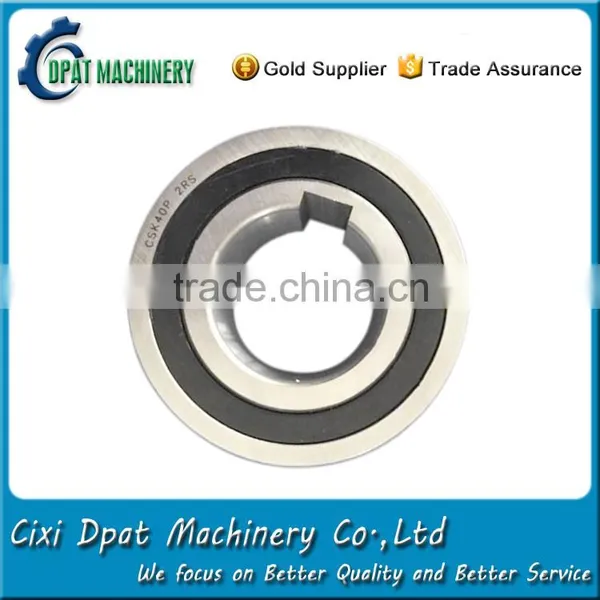

High torque csk30 sprag type clutch one way bearing from China supplier

High torque csk30 sprag type clutch one way bearing from China supplier

The CSK model freewheel is a sprag type clutch integrated into a 6200 series ball bearing (except sizes 8 and 40). It provides you with a one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space.

The CSK model freewheels can be used in backstop, overrunning or indexing applications.

The CSK model freewheels are available with bores to 40mm (1.57") and torque ratings to 384 lb. ft. They are supplied filled with grease and are maintenance free.

Features and benefits

The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6.

Operating temperature range: -40° F (-40° C) to 212° F (+100° C).

Applications

The one way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

If you need products as follows, you can "click" the related pictures.

Cixi Dpat Machinery Co.,Ltd is an experienced professional manufacturer and exporter. Our product including: Roller bearing, Ball bearing, One Way Clutch Bearing, Auto Bearing and Auto parts.

We follow the market trend, focus on better quality and better service, exchange experience with domestic and foreign enterprises, and make effort to explore overseas markets, so that Dpat bearings sold overseas.
