High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway

High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway thumbnail-1
High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway thumbnail-2
High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway thumbnail-3
High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway photo-1

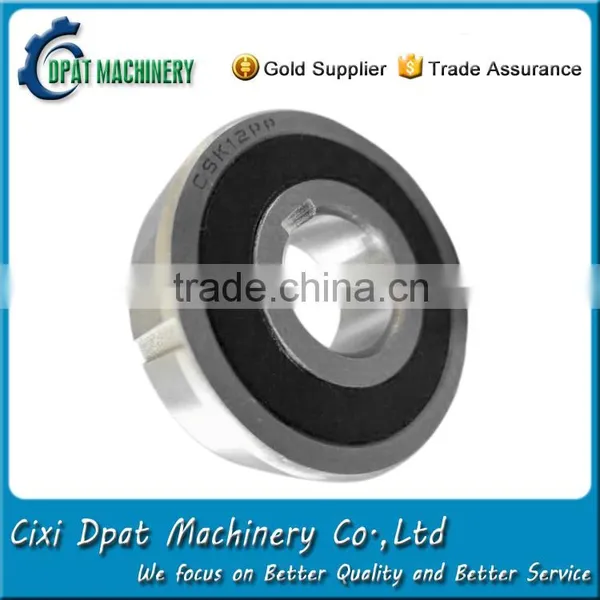

High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway photo-2

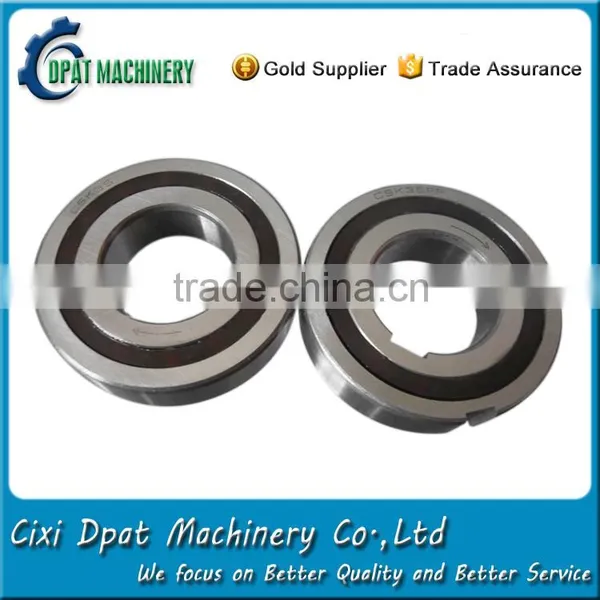

High Torque CSK 40 PP Bearing 40x80x12 One Way Bearing With Keyway photo-3
US$ 5 - 10 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dpat
Bore Size:
8, 40
Outside Diameter:
22, 80
Contact Supplier Request Quote Chat Now
Cixi Dpat Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Dpat
Bore Size 8, 40
Outside Diameter 22, 80
Model Number csk 40 pp
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN ZZ 2RS
Number of Row Single Row

High torque CSK 40 PP bearing 40x80x12 one way bearing with keyway

Product Description

High torque CSK 40 PP bearing 40x80x12 one way bearing with keyway



The CSK model freewheel is a sprag type clutch integrated into a 6200 series ball bearing (except sizes 8 and 40). It provides you with a one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space.



The CSK model freewheels can be used in backstop, overrunning or indexing applications.



The CSK model freewheels are available with bores to 40mm (1.57") and torque ratings to 384 lb. ft. They are supplied filled with grease and are maintenance free.



Features and benefits



The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6.

Operating temperature range: -40° F (-40° C) to 212° F (+100° C).



Applications



The one way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

Product catalog

High torque CSK 40 PP bearing 40x80x12 one way bearing with keyway



High torque CSK 40 PP bearing 40x80x12 one way bearing with keyway

Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static

CSK..P

(BB..-1K )

(KK..P)

(OW..P)

 d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 – 325 3000 80 22     15.54 12.25 0.5 7

CSK..PP

(BB..-2K)

(KK..PP)

(OW..PP)

 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7

CSK..P-2RS

(BB..-2GD-1K)

(KK..P-2RS)

(OW..P-2RS)

 12 – 9.3 10000 32 14     6.1 2.77 0.05 3
15 – 17 8400 35 16     7.4 3.42 0.07 4
17 – 30 7350 40 17     7.9 3.8 0.09 5.6
20 – 50 6000 47 19     9.4 4.46 0.145 6
25 – 85 5200 52 20     10.7 5.46 0.175 6
30 – 138 4200 62 21     11.7 6.45 0.27 7.5
35 – 175 3600 72 22     12.6 7.28 0.4 8.2
40 – 325 3000 80 27     15.54 12.25 0.6 10
