hydraulic steel coil decoiling machine

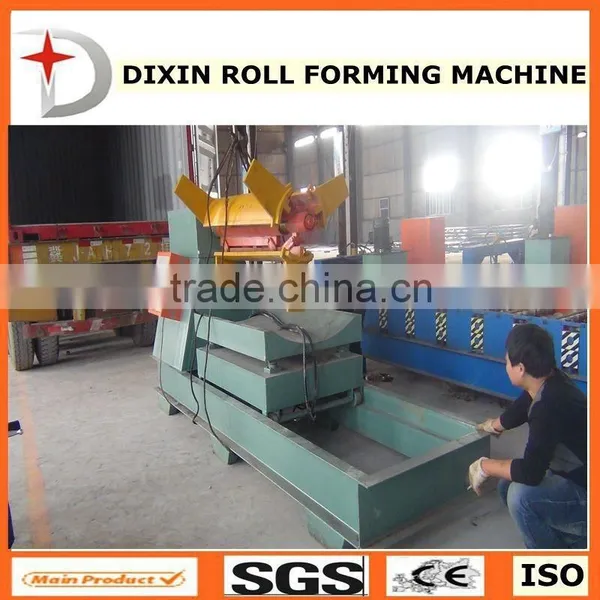

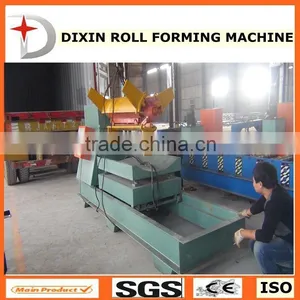

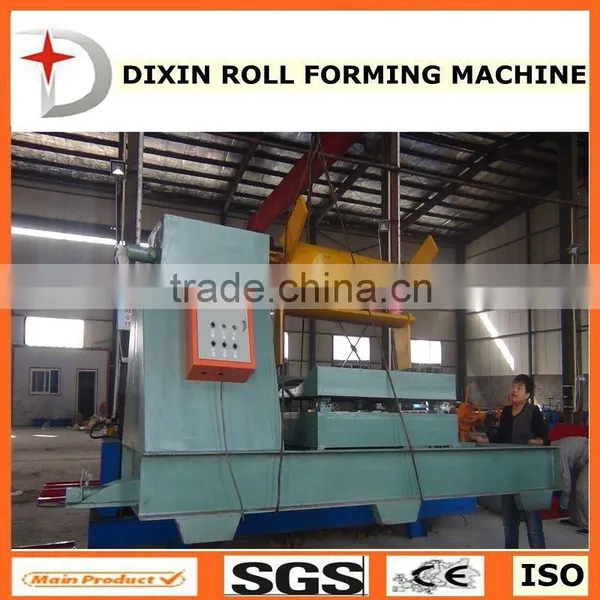

5 ,8,10 ton hydraulic decoiler(machine same as picture)
Automatic decoiler: 5t,6t,10t,15t..... customer designed
Parameters of hydraulic decoiler:
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 3KW
(3) Motor power of Hydraulic station : 2.2KW
(4) Inside dia of coil : 500-530mm
(5) Outside dia of coil : 1300mm
(6) Width of coil : 1250-1300mm
(7) Weight of coil : 5T,6T,10t,15t
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1250mm×1800mm
(12) Voltage of control : 3P/3800V/50HZ or as customer request
Equipment maintenance. Easily
1Decoiler can be installed and work at a workshop for a long time use and low maintenance cost against rust from rain or water.Also keep the air flow to make it dry
2Lubricant should be feeded regularly to the machine gear,chain and moving parts to reduce friction.
3Check the power lines connected right before starting roll forming machine by clicking the button
4Any inquiry about panel roll forming machine,just call us or e-mail us.A instant response and better advice will be available in 12 hours.If necessary,sevearl related technicans of forming machine will offer on-site service.TEL:0086-0317-8187572
Package of automatic rolling machine 1 Main forming machine and un-coiler is naked. 2 Tighten to container with steel wirerope and welded machine with container by angel iron. 3 PLC system and motor can be packed in waterproof plastic coverage if needed and necessary. Three sets of roll forming machine can be loaded in one 20-foot container
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
Welcome to visit our factory,If you have any question,do not hesitate to contact us:
Email:cocowang @czdixin.cn
Tel:+86 18231737651
Skype:105
