autoamtic metal sheet slit line
1.Parameters:
1) Max width:880-1250mm,thickness:0.2-1.0mm prepainted sheet, galvanized sheet,zinc sheet.
2) Slitting pieces:adjustable (cutting blades can be adjustable for any width pieces,max to nine piecex, different width already slitted for recoiler adjusted by spacer:the core of recoiler)
3) Working speed:0-30m/min,
4) Total power:about 3+7.5+4+7.5+4=26 KW
5) Simple automatic uncoiler(uncoiler core can be easily taken away and changed)
Power:3 KW
PLC Control System
Foreward and backward
Speed control
Automatic stop bar(to make the whole line work at the same speed automaticly)
6) Electric control system (Famous Delta PLC controller + Delta inverter + Button control (same as your factory machine,same use method)

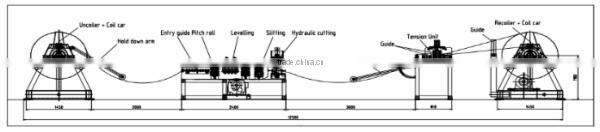

2.Production line
Include:
1) Simple automatic uncoiler without moving car.adjustable coil core diameter:480-610mm
Simple automatic uncoiler(uncoiler core can be easily taken away and changed)
Power:3 KW
PLC Control System
Foreward and backward
Speed control
Automatic stop bar(to make the whole line work at the same speed automaticly)
2) Entry guide pitch roll;
Leveling part (5+7 rollers);
Adjust slitting shaft and blades;
Hydraulic cutting by PLC control and set length
7.5KW Motor and 4 KW Pump station;
Scrap recoiler
3) Tension unit:Hold down arm+Separator + Tension Unit
4) Hydraulic recoiler with moving&lifting car:5 ton support
With moving&lifting car for more easy and fast work.
Coil core diameter: we will design you min core diameter 410mm to 600mm.

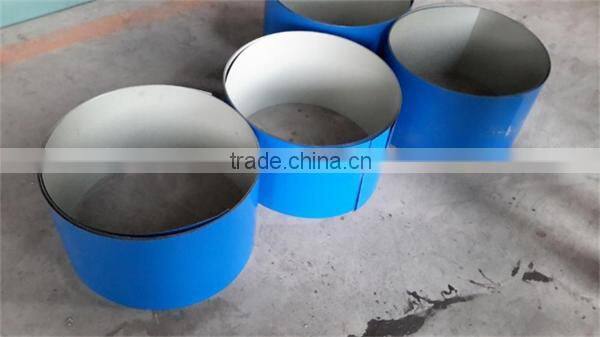

It is strong as picture show.It can roll from 10m to 2000 meters roll.
We also can design as your requirement.

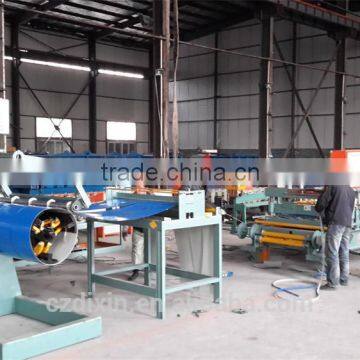

3.Machine picture

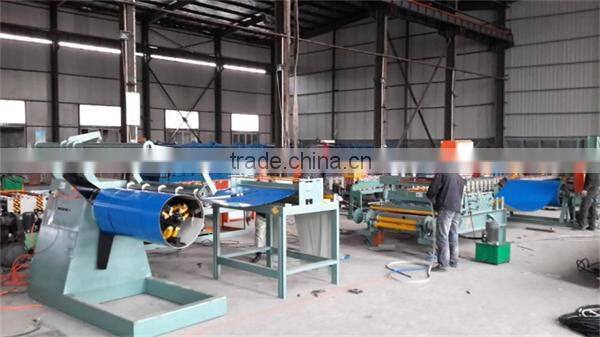

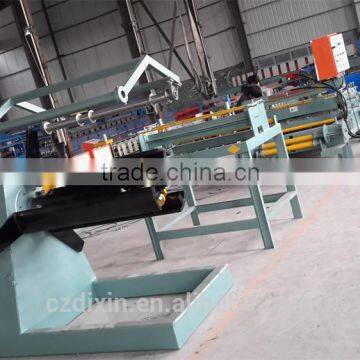

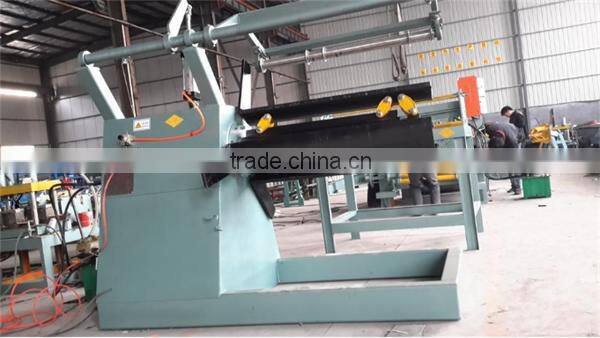

A.Simple Automatic Uncoiler.max support weight:5tons
Simple automatic uncoiler(uncoiler core can be easily taken away and changed)
Power:3 KW
PLC control system
Foreward and backward
Two speed control
Automatic stop bar(to make the whole line work at the same speed automaticly)

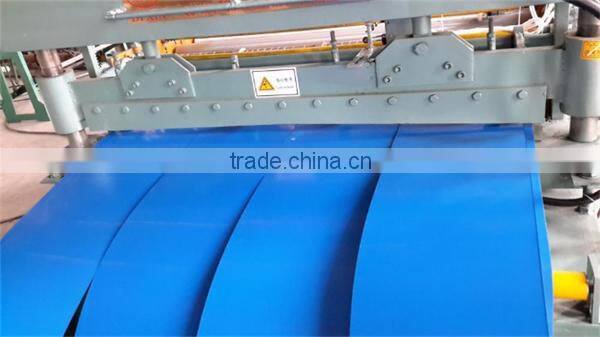

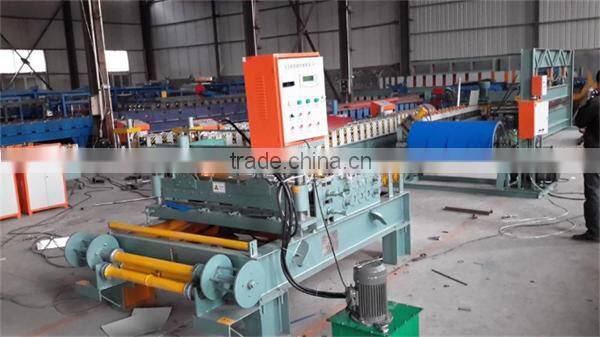

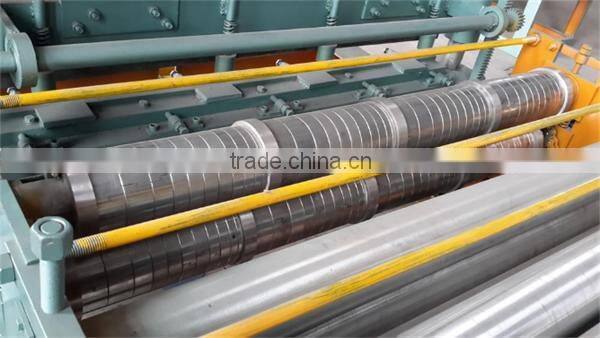

B. Slitter and Cutter as picture show
1) We add PLC control part for hydraulic cutting and length setting additionally
2) Entry guide pitch roll;leveling part (5+7 rollers);adjust slitting shaft and blades;hydraulic cutting by PLC control and
Length set;7.5KW Motor and 4 KW Pump station; scrap recoiler
3) PLC control+7.5KW Motor and 4 KW pump station

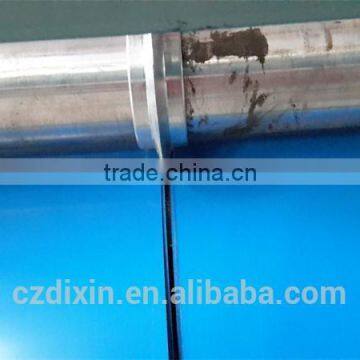

Adjustable slitting pieces and slitting width.

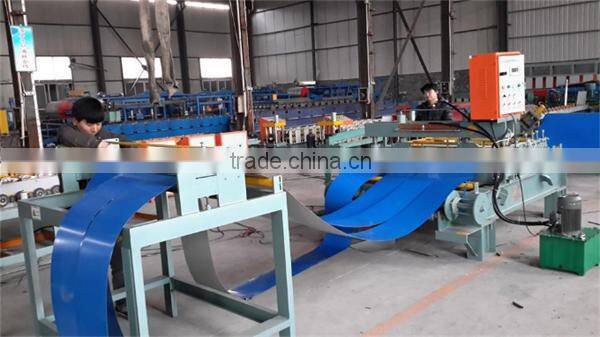

C. Tension Unit as picture show
Tension unit:Hold down arm+Separator + Tension Unit
Separator separate the steel strip. fabric, rubber roll, diameter 80mm.

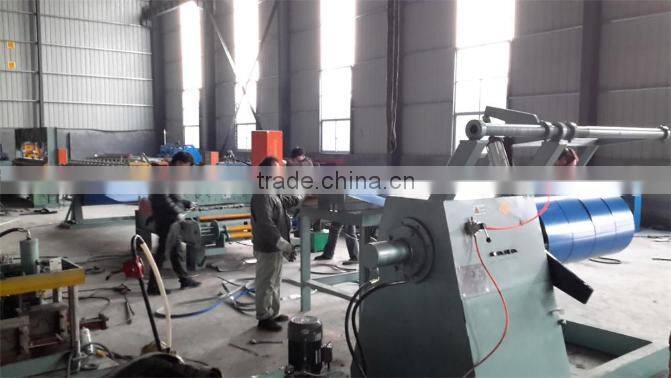

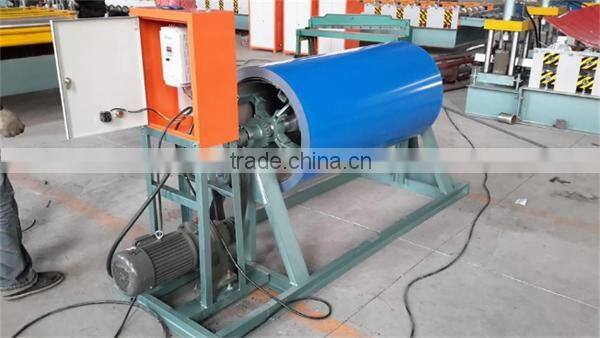

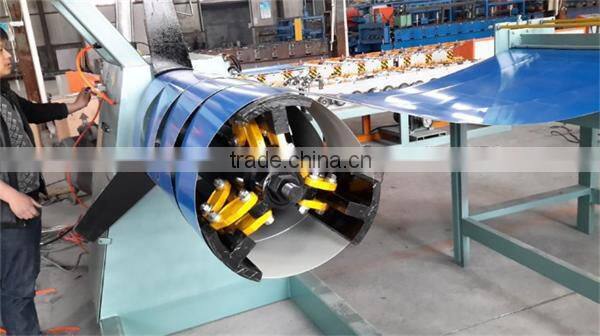

D. PLC Hydraulic Recoiler
big core of recoiler,the machine will be much more strong! 410-550mm
1 We design the one with moving&lifting car.
2 Hold down arms
3 Separate spacer
4 PLC control speed and automatic touch stop bar.
5 Motor:4KW,Pump station:3 KW
6 Support Weight:5 tons
4. Before paying balance money and loading,we demo the machine to work well.
