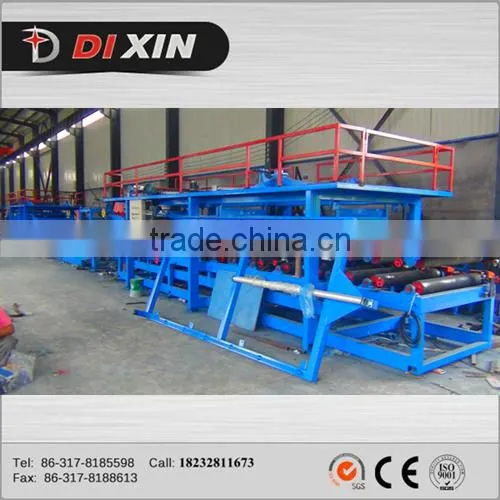

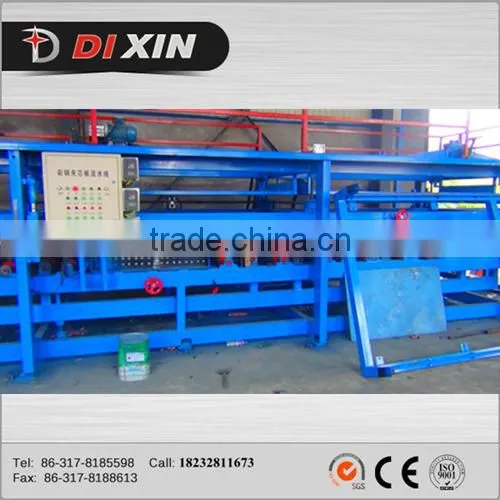

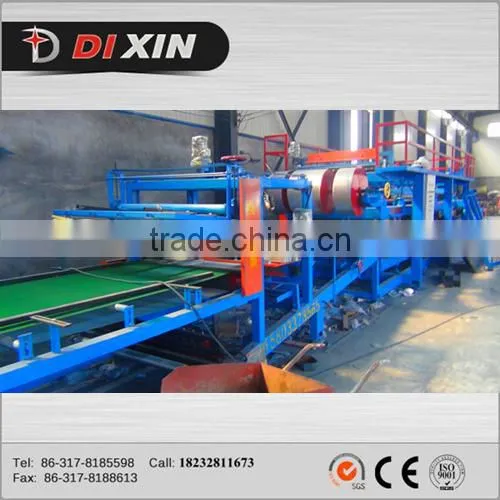

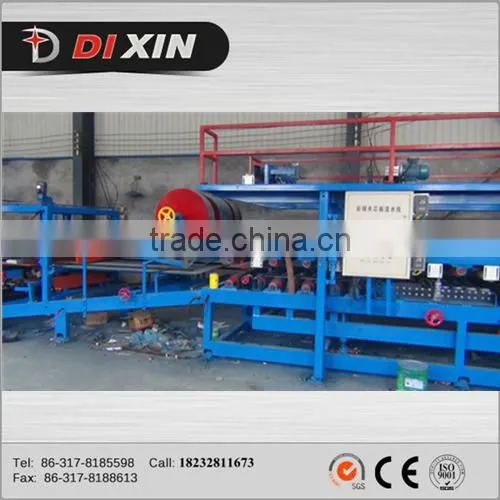

Automatic EPS Sandwich Panel Roll Forming Machine

FOB Price

USD $25,000 - $38,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Tile Type:	Colored Steel	Use:	Roof
Production Capacity:	4-4.5m/min	Place of Origin:	Hebei, China	Brand Name:	DIXIN
Model Number:	sandwich panel making machine	Power(W):	32kw	Voltage:	380V
Dimension(LWH):	7.351.21.5	Weight:	25T	Certification:	CE ISO SGS
Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

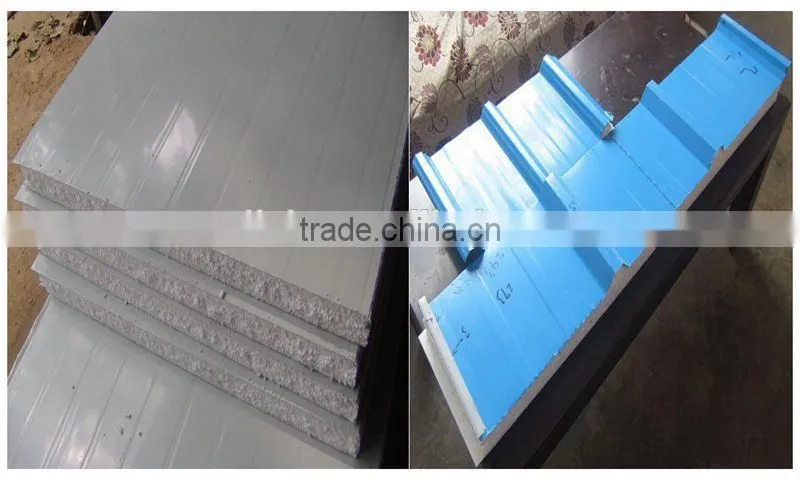

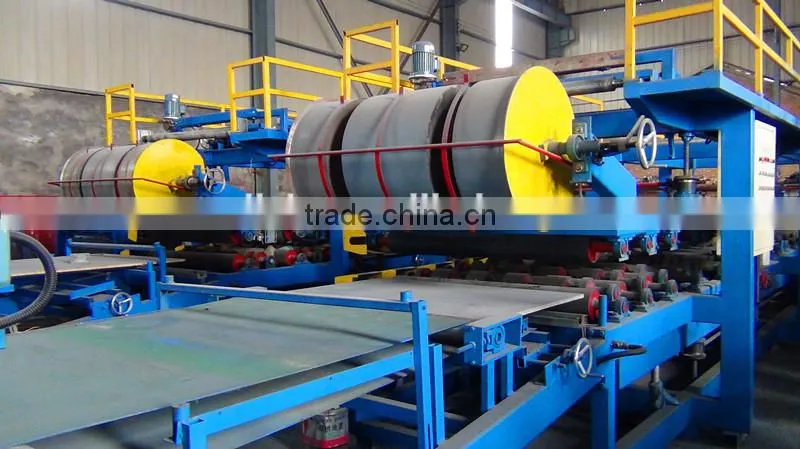

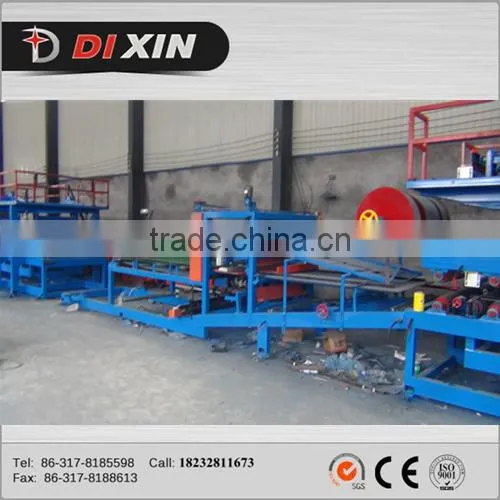

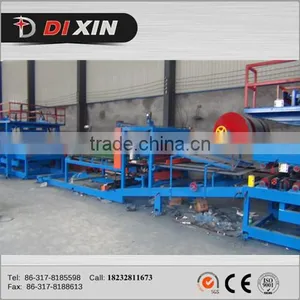

Sandwich Panel

production line

Technical parameters

sandwich panel production line standards
Length	Min cut length: 3 m Max stacker length: 15 m
raw material standards
Coil thickness	0.4~0.6mm (the coil surface should be flat, no arch and the others surface trouble.)
Material coil yield strength	235MPa
Material coil max width	see detailed profile drawings.
Material coil max weight	5 T
Material coil inner diameter	Φ508,Φ610 mm

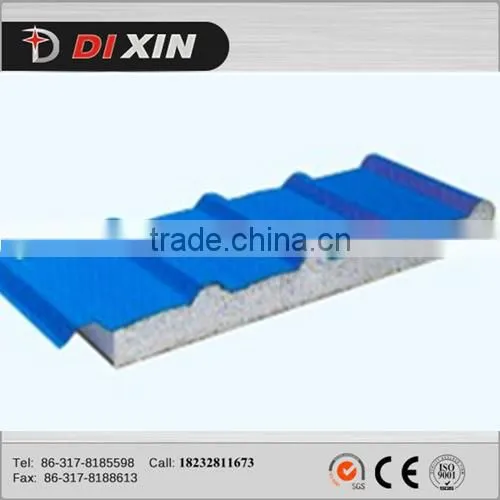

EPS core material
density	≥18Kg/m3
straight rate	≤1mm/m
arch degree	≤3mm/m
panel surface	shoule be flat no flat degree is ≤1.5mm/m,
sandwich panel length	longer than 5 meters
wool material
fiber length	≥100mm
cubage density	≥100Kg/m3
sandwich panel length	≥3 meters

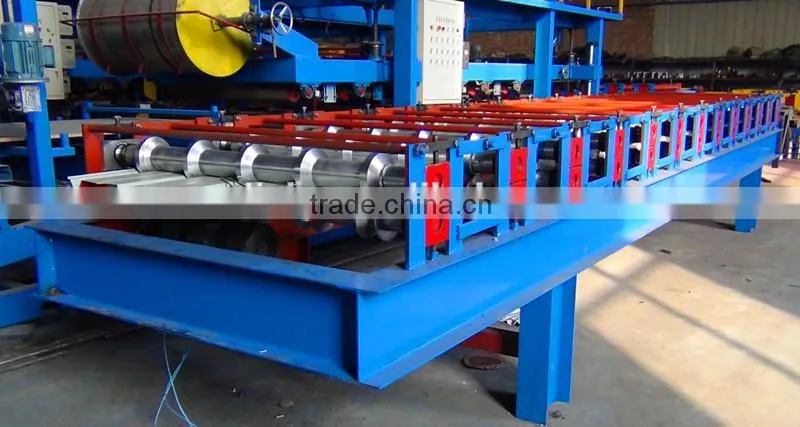

Main parameters

No.	main parameter of roll forming machine
1	suitable material	Color Steel plate, galvanized sheet
2	Width of the plate	1200mm
	effective surface	950/960/970/980mm
3	Rows of rollers	14 rows
4	Size	*7.51.31.2m*
5	Total power	4kw
6	Thickness of raw material	0.3-0.8mm
7	Productivity	8-10m/min
8	diameter of shaft	80mm
9	Weight	About 4T
10	Voltage	380V 50Hz 3phase

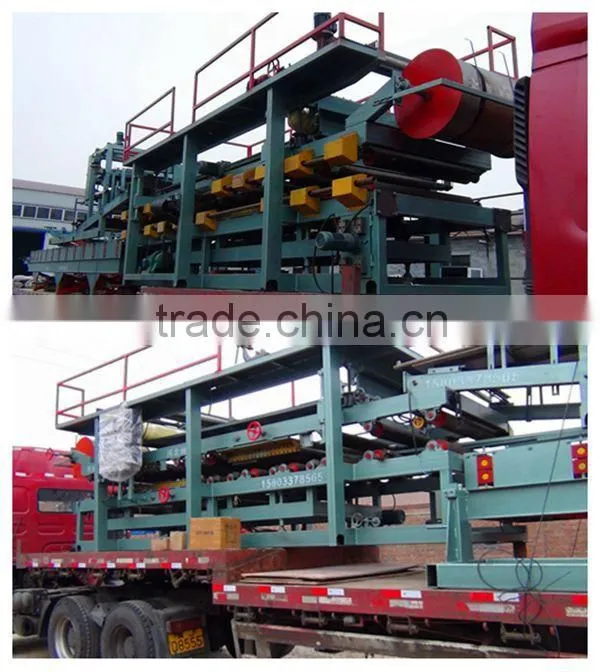

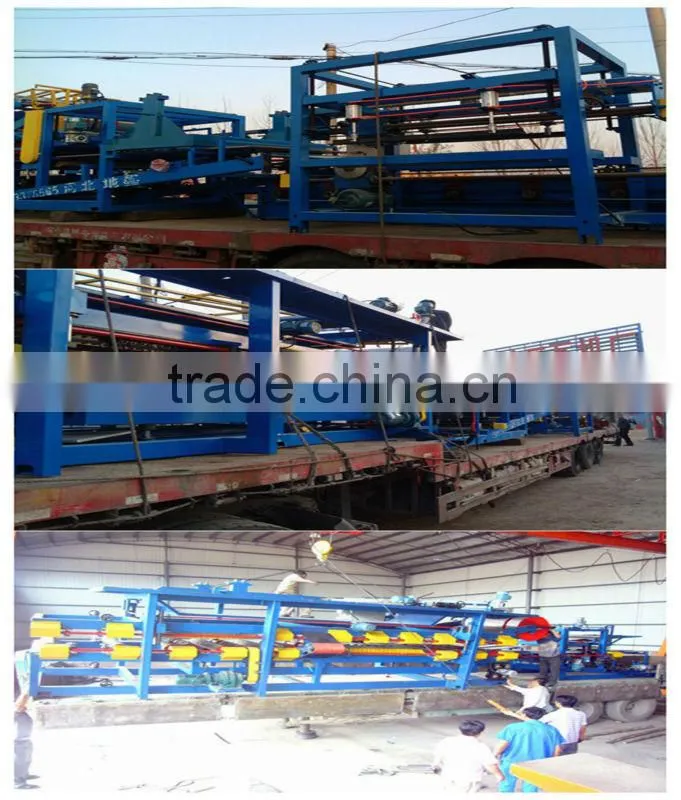

loading

certificate

Cangzhou Dixin Roll Forming Machine Co., Ltd.: Contact nameBetty Han; Phone86-317-8185598; AddressEast National Road No. 104, Fuzhuang Development Area, Liubali Township, Nanpi County
