metal rofing ridge cap forming machine rollformer machine
Machine Description |
Quantity |
Delivery time |
Container Type |
metal rofing ridge cap forming machine rollformer machine |
1 SET |
45 working days after receiving deposit |
One 40GP |
ridge cap forming machine rollformer machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
metal rofing ridge cap forming machine rollformer machine Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting
→Products receiving

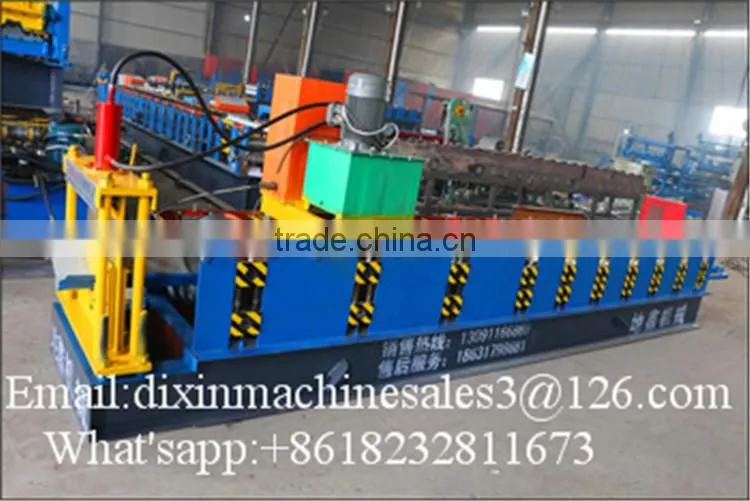

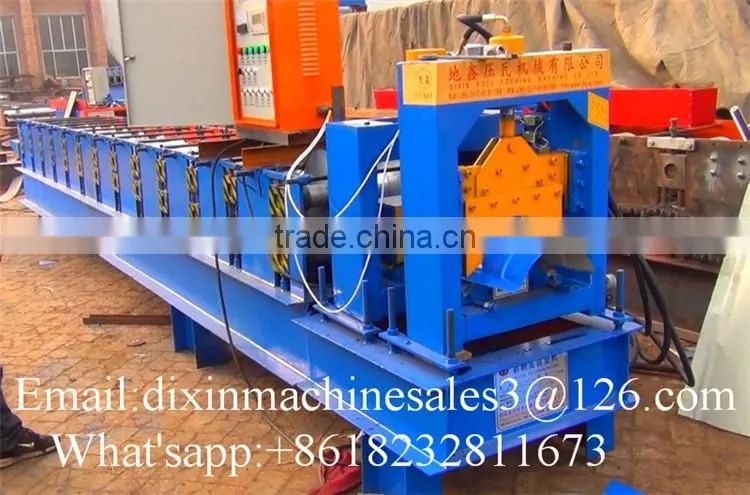

Main picture of metal rofing ridge cap forming machine rollformer machine
2. technical parameters of metal rofing ridge cap forming machine rollformer machine
| 1 | Name of commodity & specification | metal rofing ridge cap forming machine rollformer machine | |||||
| 2 | Main motor power | 4kw, 3 phase | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 400mm H-Beam | |||||
| 8 | Backboard Thickness | 18mm | |||||
| 9 | Chain Size | 33mm | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-0.8mm | |||||
| 12 | Feeding Width | 600mm | |||||

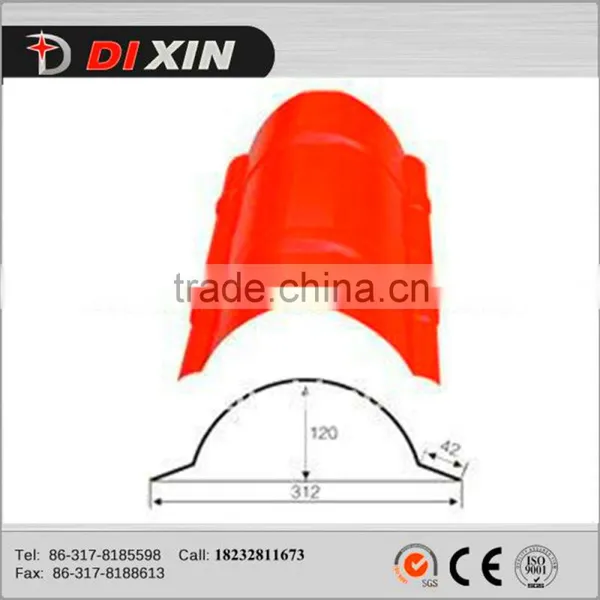

| 13 | Effective width | 312mm | |||||
| 14 | Productivity | 0-9m/min | |||||
| 15 | Roll Station | 14 | |||||
| 16 | Roller Diameter | 65mm | |||||
| 17 | Roller material | 45# steel | |||||
| 18 | Cutter material | Cr12 , quenched | |||||
| 19 | Cr-Plating Size | 0.05mm | |||||
| 20 | Overall Size | 7500×1000×1200mm | |||||
| 21 | Total Weight | 3T | |||||
| 22 | Components |
Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Glazed Tile Pressing Device--------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
|||||

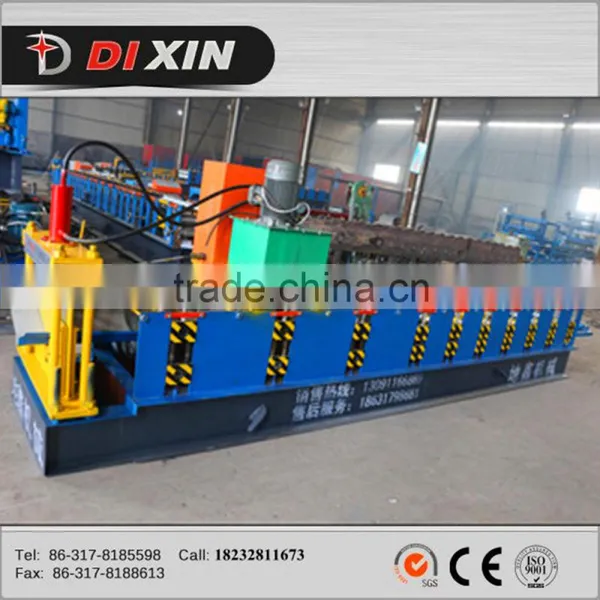

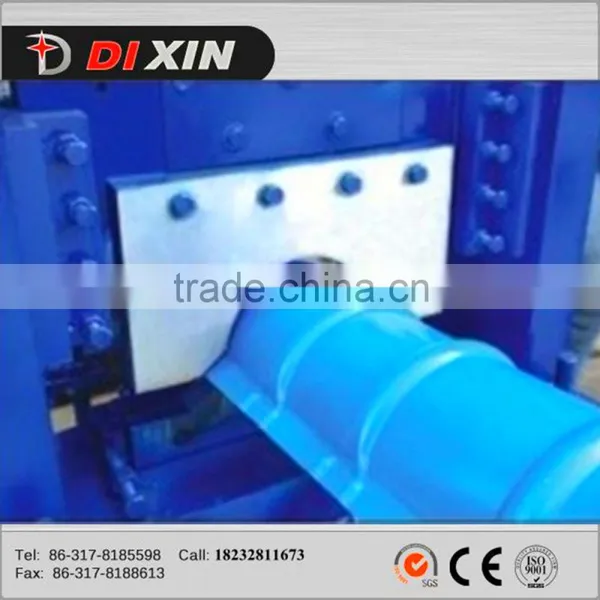

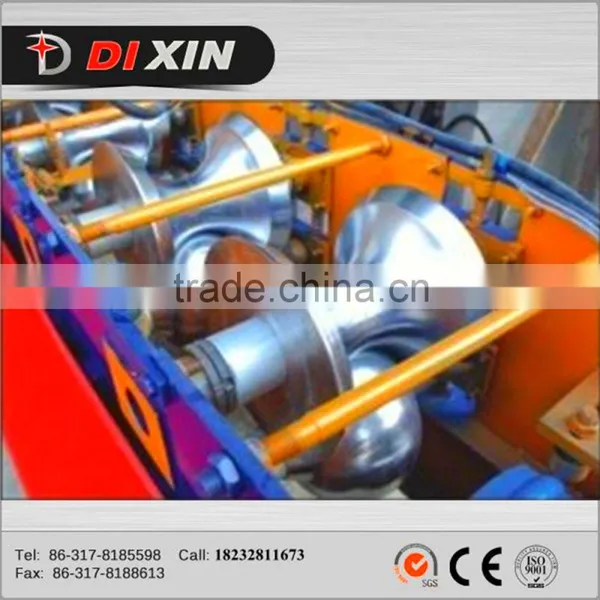

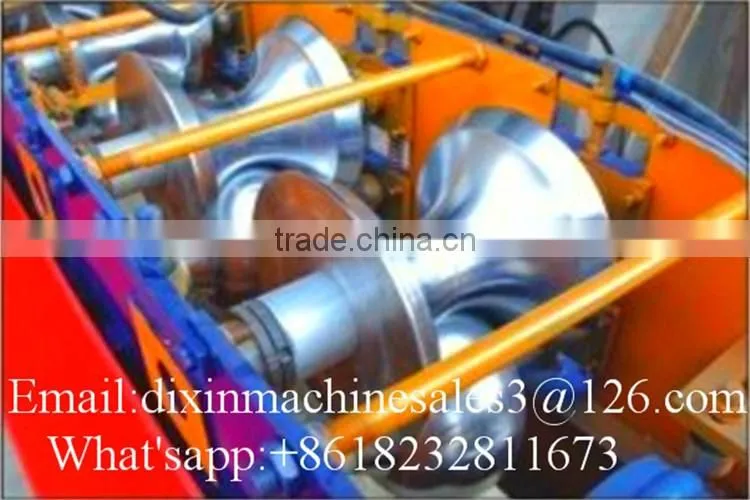

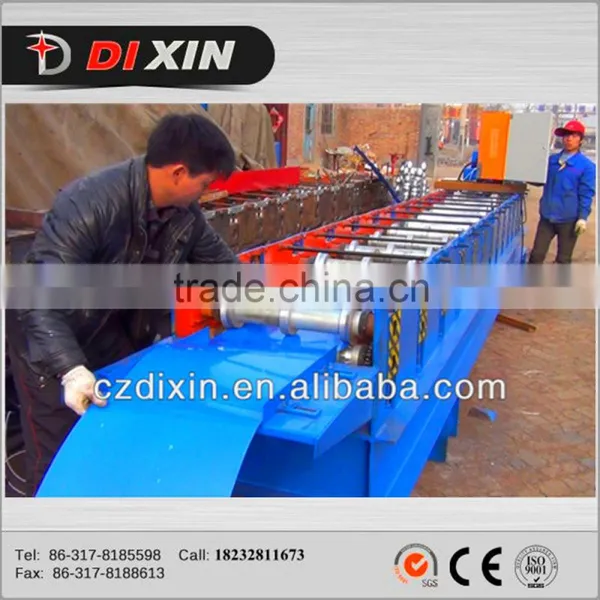

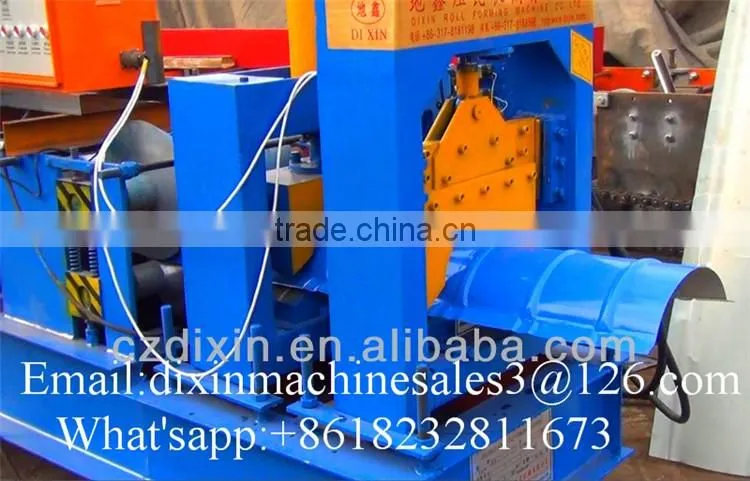

More pictures of metal rofing ridge cap forming machine rollformer machine

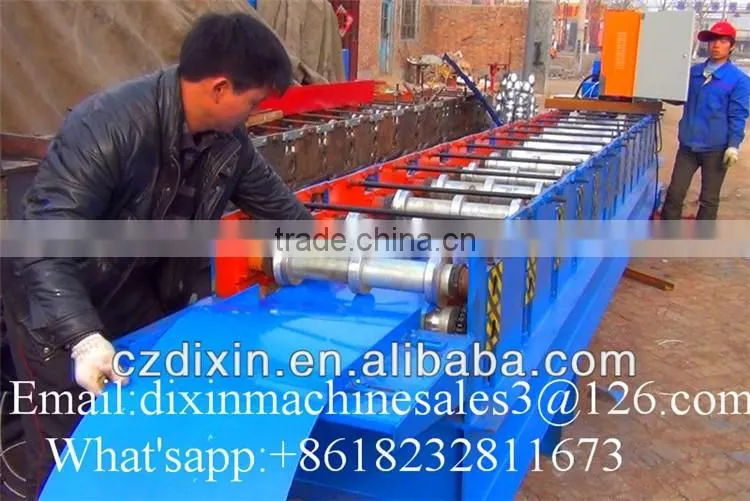

Processing line of ridge cap forming machine rollformer machine
4. other panel of metal rofing ridge cap forming machine rollformer machine
The machine is bare packing.
Usually one machine can be put into one 20feet container.
We use steel wire to fix the machine in the container.
Advantages of metal rofing ridge cap forming machine rollformer machine
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
Welcome to contact me directly:
What'sapp:+8618232811673
