China Door Frame Omega Keel Roller Form Machines Profile Machine

Name: China Door Frame Omega Keel Roller Form Machines Profile Machine
Brand: DIXIN
SKU: 134002907

US$ 6,500 - 8,500 MOQ: 1 Set

Key Specifications

Condition:

New

Work Pressure:

16Mpa

Production Capacity:

8-10m/min

Cangzhou Dixin Roll Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Work Pressure 16Mpa

Production Capacity 8-10m/min

Place of Origin Hebei, China

Brand Name DIXIN

Model Number DX-U/L

Voltage 380V/50HZ 3Phase(as Customer's Request)

Power(W) 3 -4KW

Dimension(L*W*H) 3000*800*1400mm

Weight 2.5T

Certification CE BV

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

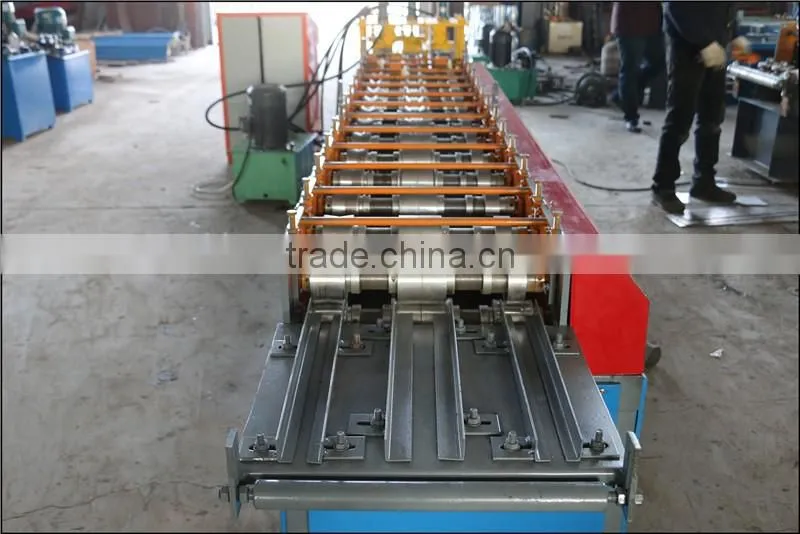

alibaba china Door Frame Omega Keel Roller Form Machines profile machine

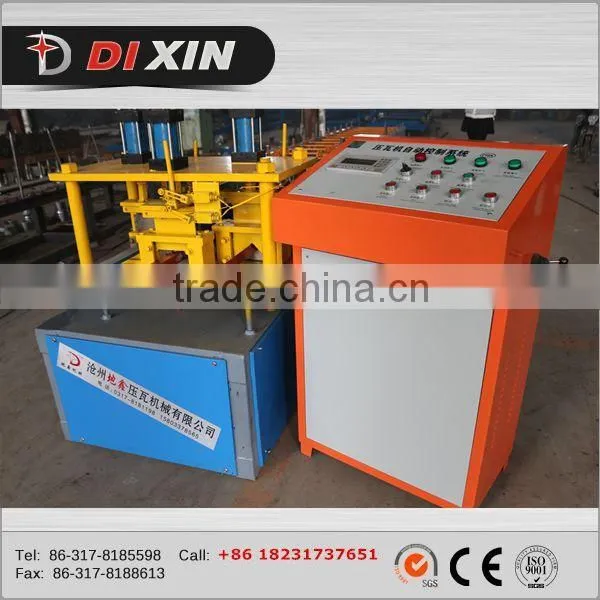

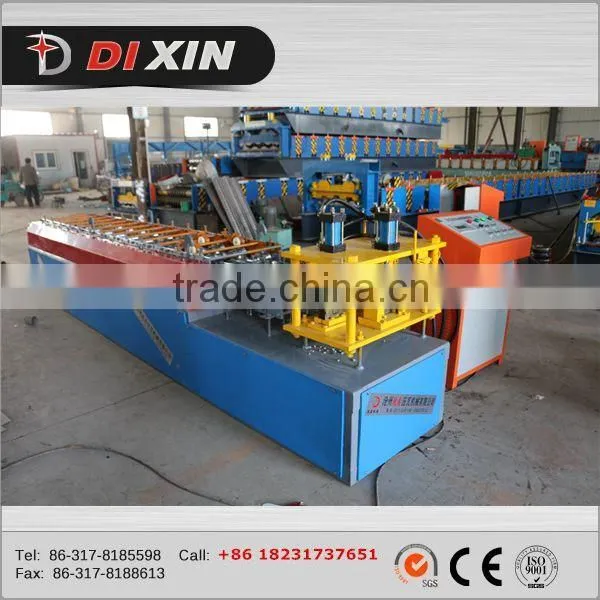

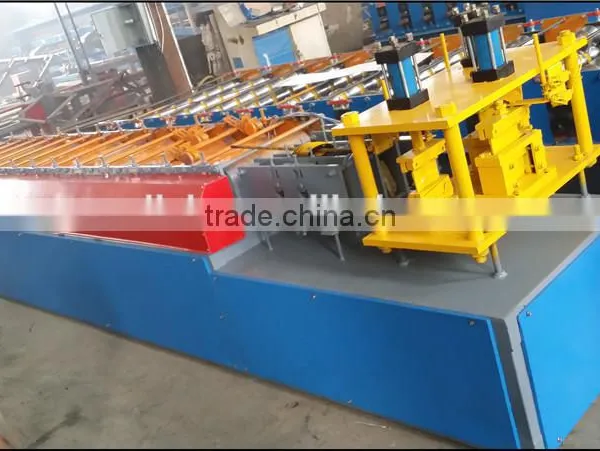

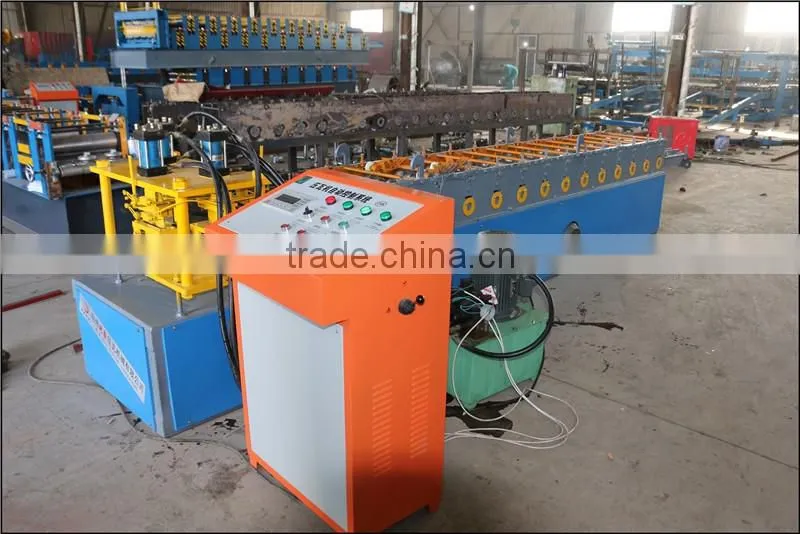

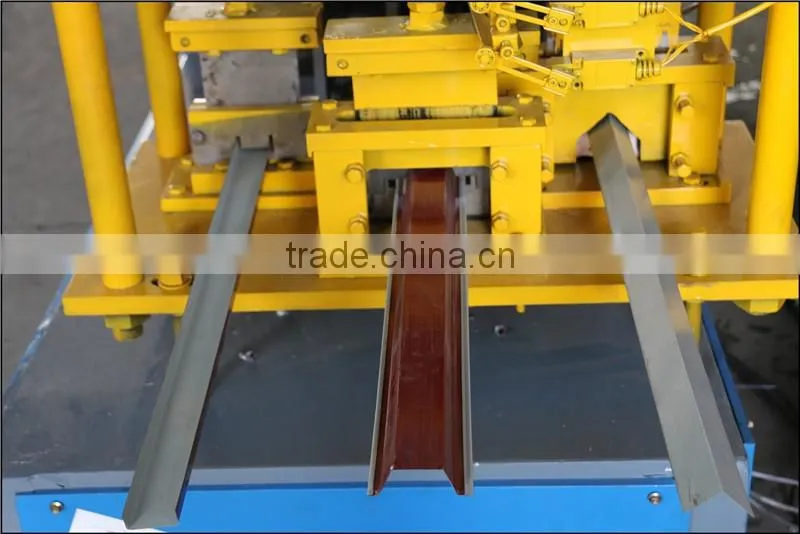

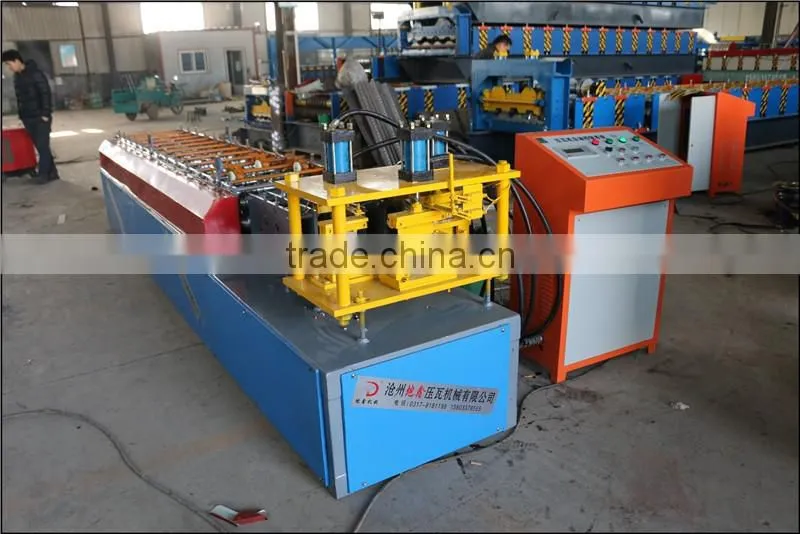

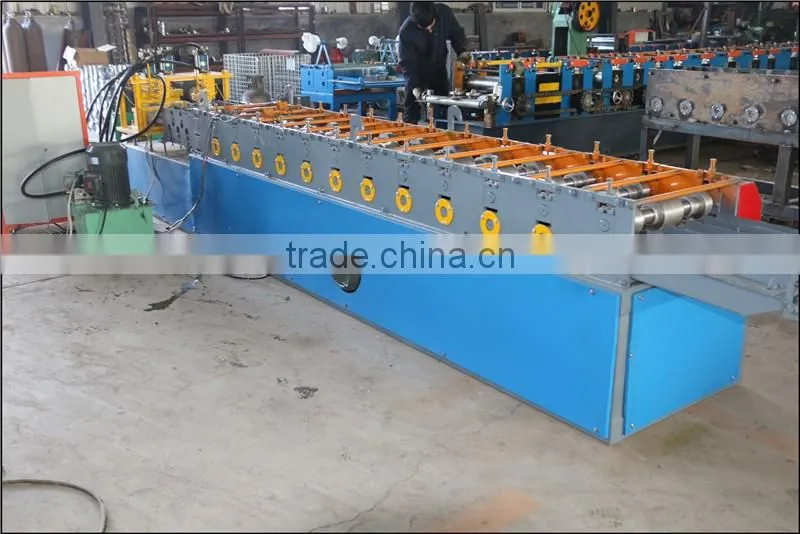

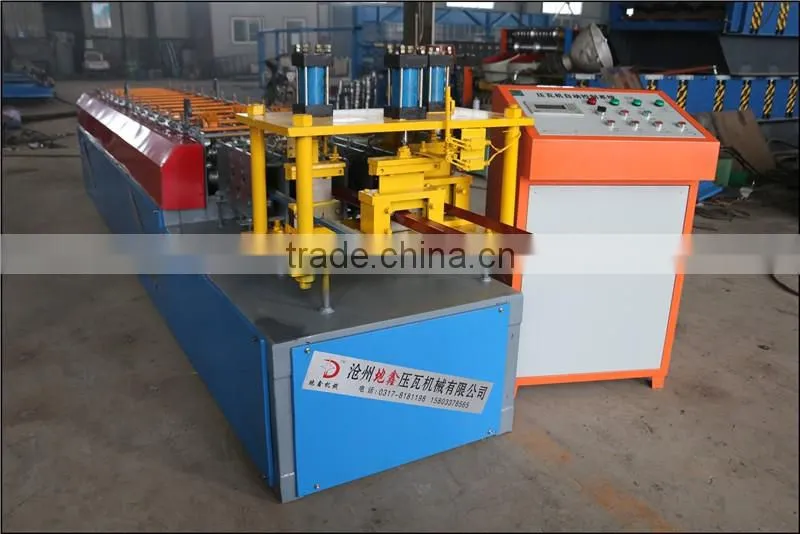

Detailed Images

Technical parameters:

1	Name of commodity & specification	DIXIN new design and good quality lip channel machine
2	Main motor power	4kw, 3 phase
3	Hydraulic motor power	4kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	200mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-1.2mm
14	Productivity	8-12m/min
15	Roll Station	11
16	Roller Diameter	50mm
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	2500×900×1000mm
21	Total Weight	2T
22	Components	Manual Uncoiler-------------------1 set
		Guiding Platform------------------1 set
		Coil Strip Leveler------------------1 set
		Main Machine of Roll Forming------1 set
		Electric-Motor---------------------1 set

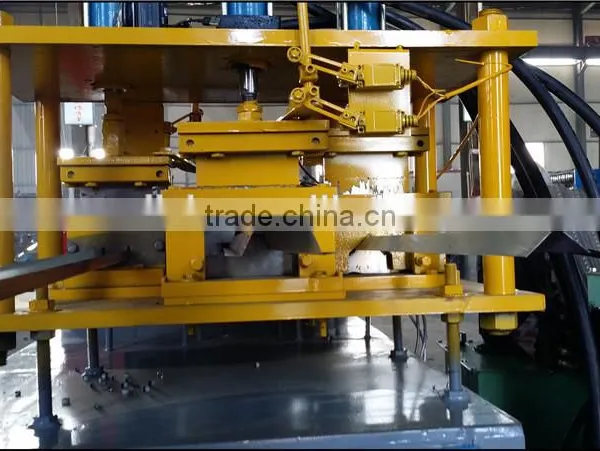

		Cutting Device--------------------1 set
		Hydraulic Station------------------1 set
		PLC Control-----------------------1 set
		Supporter Table-------------------1 set
23	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

24	Package	nude in the container
25	Minimum order quantity	1 set
26	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

27	Delivery time	30 working days later after receiving the deposit
