Specifications
fiber optic laser welding machinebrand
c high precision
3.CE &ISO approved
4. in stock
automatic welding machine fiber optic laser welding machine
Advantage of fiber optic laser welding machine:
COMPREHENSIVE..... From XT LASER, you get state of art technological laser systems designed by our own engineers and CAD draughtsman and specially tailored to your needs. This is why from XT LASER. you get comprehensive laser competency from A to Z. | ||
USER FRIENDLY..... The XT LASER LWI Chambertype unifies intuitive operation, excellent design and ergonomics in fascinating way. Convince yourself. | ||
CUSTOM MADE..... The innovative XT LASER LWI Chambertype offers flexible solutions in individual applications. Customer specific modifications are made easily, at any time, from spot diameter and focus length to pulse modulation and handling systems. | ||
ECONOMICAL..... The XT LASER Chambertype stands for the highest performance and functionality at an unbeatable and really exceptional cost-performance ratio. Because quality must be affordable |
Features of fiber optic laser welding machine:
Model | XTW-200 |
Working table dimension | 200mm X 100mm(customized) |
Welding depth | 0.1-2mm |
Max output power | 200W |
Laser wavelength | 1064nm |
Pulse width | 0.3-20ms |
Welding frequency | 1-100HZ |
Pump source | Xenon lamp |
Single pulse engrgy | 105J |
Consumed power | 18KW |
Electrical source | 220V ±10%/50HZ/40A |
Adjustable facula size | 0.2-2mm |
Waveform number | 16 |
Power consumed | ≤6KW |
Cooling Mode | Water-cooling |
Control of worktable | Manual+CNC Programming (optional) |
Consumable material | krypton lamp / filter / water / electricity |
Optional accessories | Anti-laser glasses |
Usage environment | Clean,no shaking,Temperature 13 °C -28 °C, humidity 5% -75% |

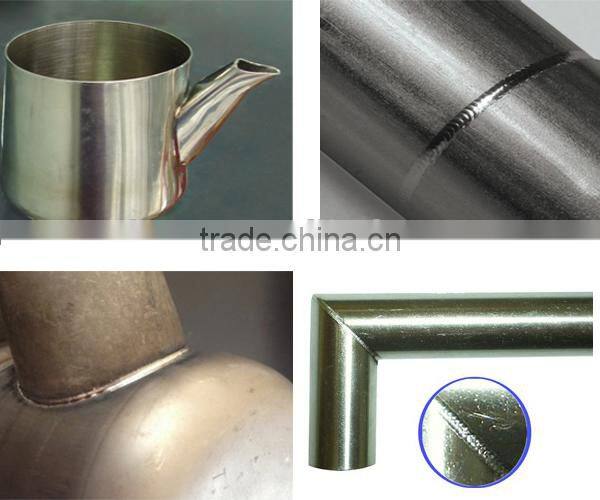

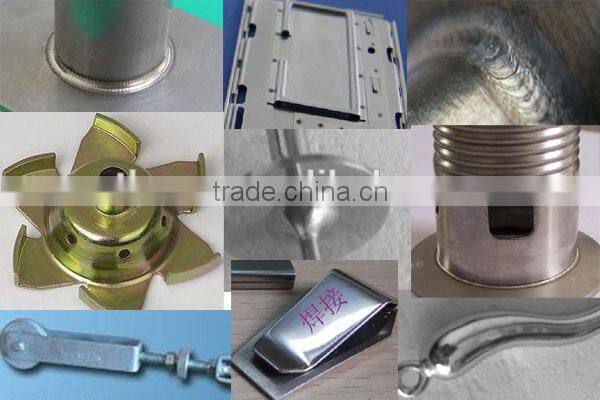

Application of fiber optic laser welding machine :
Metal,gold and siver Jewelry, nickel, tin,copper, aluminum,steel and their alloys laser welding
1. The whole set of machine is guaranteed for one year, not including normal replacement of wearing parts.
2. 24 hour technical suppot by email or calling +86-18602717601
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition
About us:
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004. t is a professional manufacturer engaged in the research,development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
Packaging and Delivery:
Name Card:
♣Priced less than comparable laser markers,XINTIAN laser is an unbeatable combination of high performance and low cost and we are also finding overseas distributor for our marker machine
