2014 hot saleLaser Cutting Machine for silicon steel
2 years warranty
24 hours online Servic

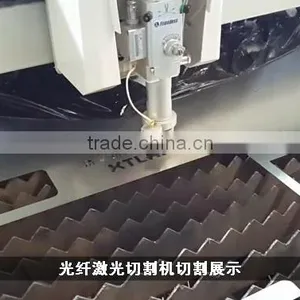

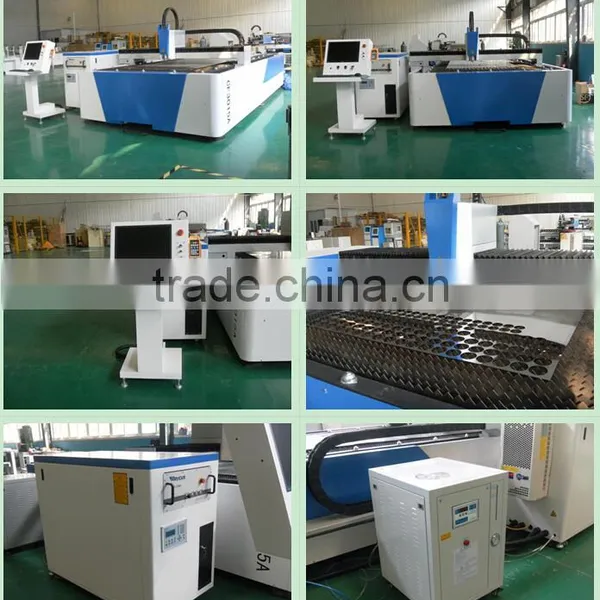

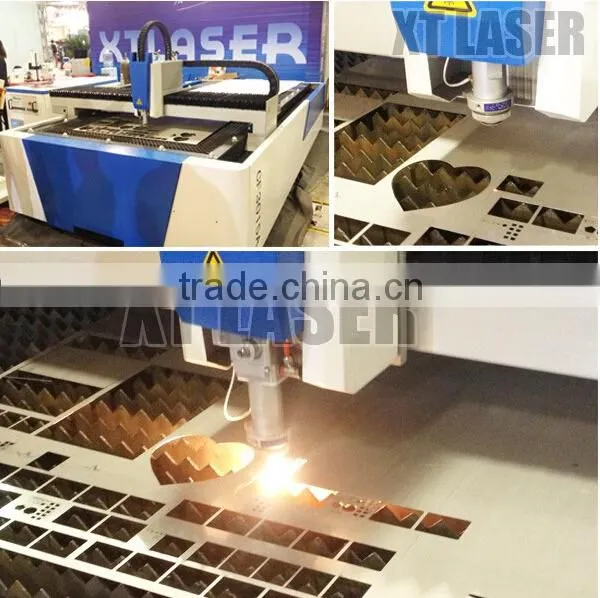

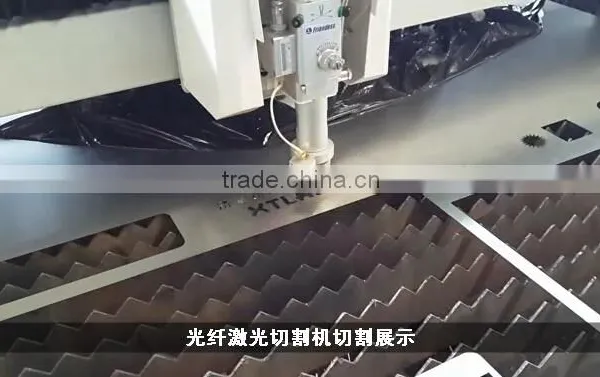

Machine sample photos of Laser Cutting Machine for silicon steel
Features of Laser Cutting Machine for silicon steel
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed
and cutting precision of equipment, extend the time of using.
3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area
4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control,
it can meet the precision parts processing,
stable dynamic performance,also can work for long hours.
5. The cutting section with good quality:Mechanical follow-up cutting head system, cutting head always follows the material
to keep the cutting point location unchanged,
which insures smooth cutting section without processing again.
It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling, auxiliary gas and laser light.
7. Sample structure, easy operation, stable laser device and low maintenance cost.
Specifications of Laser Cutting Machine for silicon steel
Original place |
Jinan,China |
Brand |
XT LASER-laser cutting machine |
Model |
XTC-F500-laser cutting machine |
Laser |
Germany IPG laser or Raycus(optional) |
Laser wave length |
1064 nm |
Optic route |
Fixed |
Transport way |
Ball screw |
Working area size |
1500*3000 mm |
Laser Rated Output Power |
500W |
Cutting materials |
stainless steel,carbon steel,alloy steel,ect. |
Graphic format support |
PLT,DXF,BMP,DST,DXP |
Digital control |
Yes |
Configuration structure |
Cantilever Type |
Control software |
CNC |
Total power consumption |
8KW |
Max cutting speed |
12m/min |
Cutting thickness |
≤5mm |
Reposition accuracy |
±0.03mm |
Min kerf width |
≤0.1mm |
Auxiliary Air |
Oxygen |
Working range |
X*Y*Z=1500*3000*150mm |
Control axis No. |
X/Y/Z |
Operating Voltage |
380V/50Hz |
Cooling way |
Water cooling |
Environment temperature |
5-40°C |
Automatic regulating-hight system |
Made in USA |
Silk rod |
Made in Taiwan |
Guide rail |
Made in Taiwan |
Laser lens |
Made in Singapore |

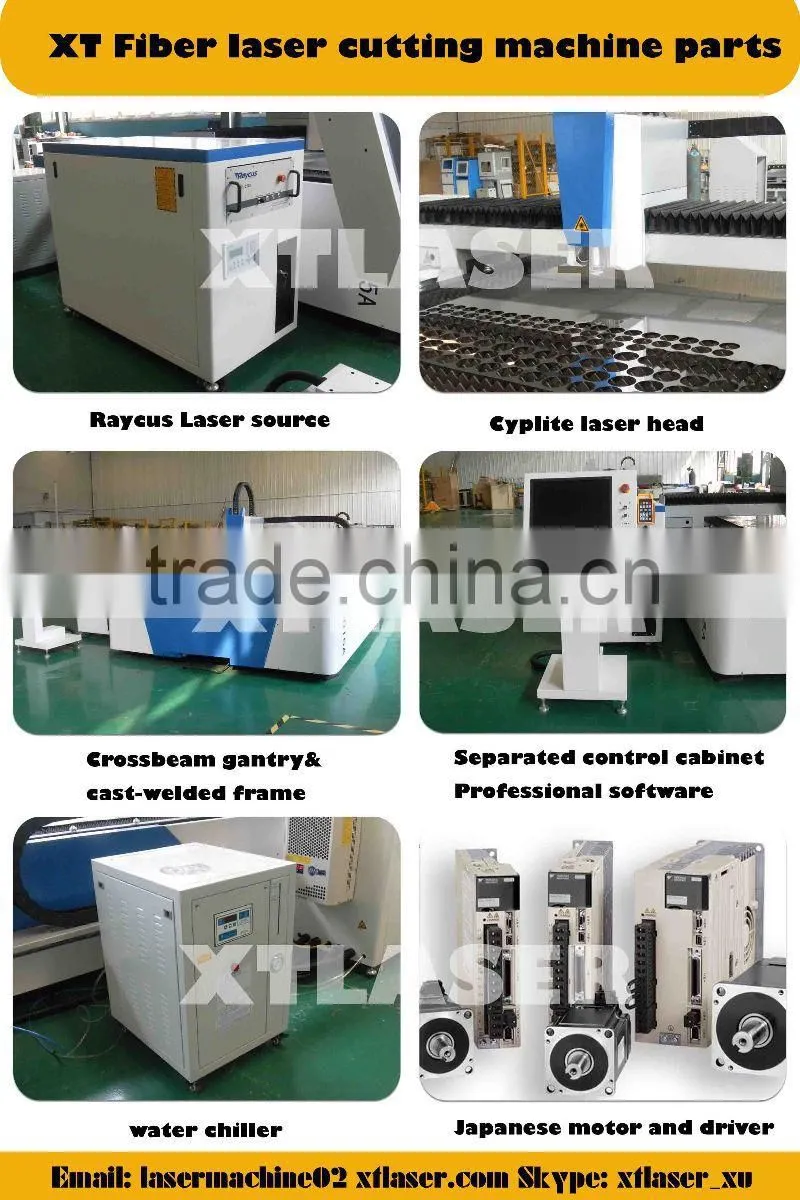

Optional configurations |
500W laser is available. |
Electrical components |
Omron or Schneider |
Servo motor drive system |
Japan Mitsubishi/Yskawa |
Laser head follower |
Automatic cutting tracking system,Focal-height with automatic adjustment according to the plate material's flatness, adjust the cutting focus in time and assure the quality. |
Air Consumption |
Use compressed air if the cutting thickness is less than 2mm,if not,use the oxygen |
Consumption |
electricity,air |
Cut slit width |
0.15mm (1mm cutting thickness as sample) |
Ideal cutting thickness |
5mm |
Cutting speed |
12m/min (1mm cutting thickness as sample) |
Total weight |
4000kg |
Size |
5100*3050*1500mm |
Application of Laser Cutting Machine for silicon steel
Except this size, we also could offer many other working sizes, such as 300*500mm,400*600mm,500*700mm,600*900mm,1000*600mm,1200*900mm,1300*900mm,1400*900mm etc. We also could custom for according to your requirements. For more information, please kindly check:
XT Laser Certification
Company View
Jinan XinTian Technology Co., Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine, CO2 laser marking machine, Pneumatic marking machine, Laser engraving machine, Laser welding machine, Laser cutting machine and Laser trimming machine.
