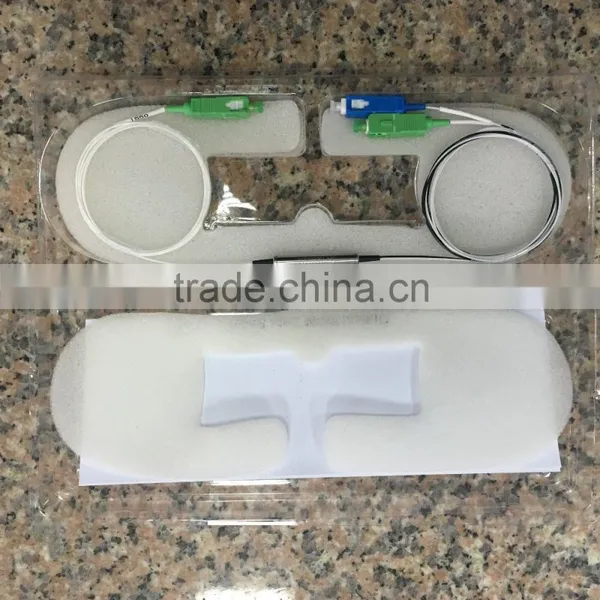

Help CenterWDM/CWDM/FWDM/DWDM 1X4 &1X8 Channel CWDM MUX/DEMUX UNITS
Related Products
1. Product introduction
Coarse wavelength division multiplexer is based on the membrane filter technique, mainly used in metropolitan area network convergence and access layer, meshing and conduct business in a short time. Because of CWDM devices with low cost, low power consumption, small volume, and many other advantages, is a kind of low price, high performance transmission solution, has been widely applied in the metropolitan area network transmission.
2. the product features
Ø low insertion loss
Ø High channel segregation
Ø light path without glue technology
Ø thermal stability and high reliability Fully meet reliability GR1221 standard and RoHS environmental protection standard
3. product and application
Ø on-line detection
Ø WDM system
Ø upload/download system
Ø cable television network
Ø routing/data network

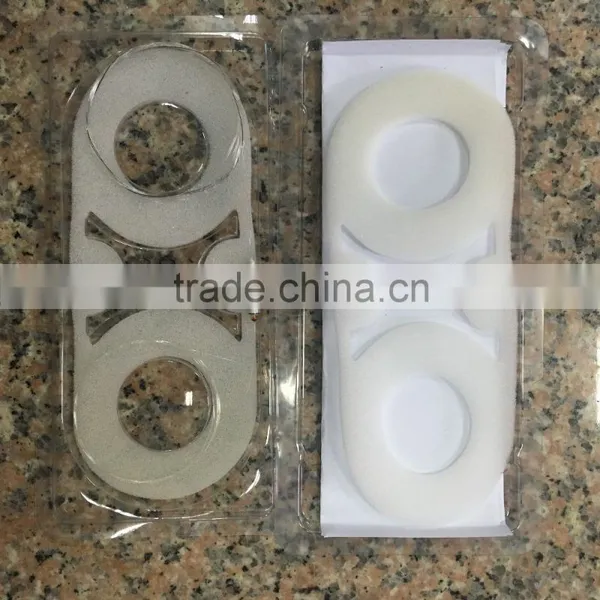

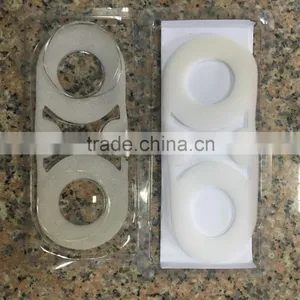

4. the size of the packaging
5. Technical Data
Parameter |
Specification |
||
|
Center wavelength
|
1270129,... 1, 1610 or 1271129... (1611 nm |
||
|
Working wavelength range
|
1270-1610/1271-1611 (nm)
|
||
|
Channel spacing
|
20nm |
||
Channel bandwidth |
ITU + / - 7.5 nm
|
||
Insertion loss |
Reflection channel
|
<0.5dB |
|
Transmission channel |
<0.7dB |
||
|
Reflection channel
|
>15dB |
||
|
Isolation
|
The adjacent transmission channel
|
>30dB |
|
The Non-adjacent transmission channel |
>40dB |
||
|
Channel flatness
|
< 0.3 dB |
||
|
Insertion loss thermal stability
|
< 0.005 dB / ℃
|
||
Temperature drift |
< 0.002 dB / ℃
|
||
|
Polarization dependent loss
|
< 0.1 dB
|
||
|
Polarization mode dispersion
|
< 0.1 ps
|
||
Directional |
>50dB |
||
|
Return loss
|
>50dB |
||
|
The MAX powerful
|
300 mw |
||
Working temperature |
- 20 ~ + 75 ℃
|
||
|
Storage temperature
|
- 40 ~ + 85 ℃
|
||
Package size |
5.5 * L38mm |
||
6. Ordering Information
