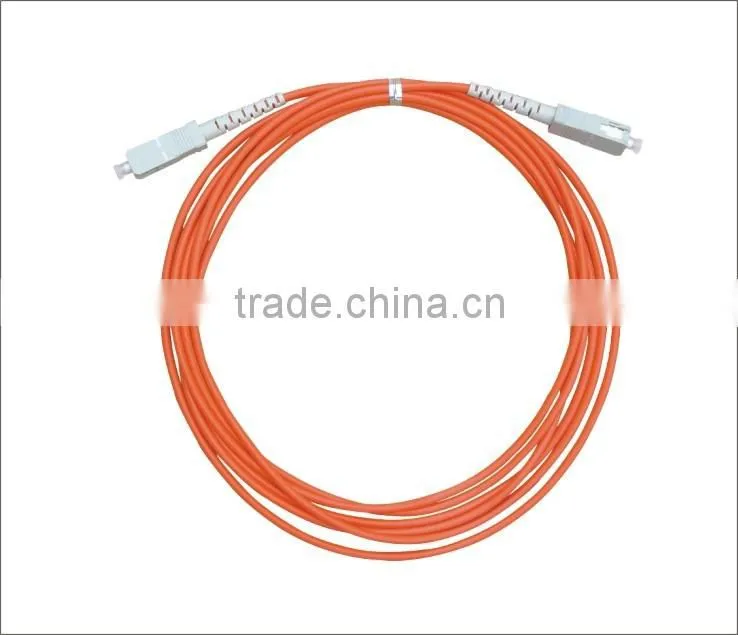

Fiber Optic Patcchords
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
SC/UPC-SC/UPC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Armored Patchcord Optical FiberNegotiableMOQ: 1 Piece -
Optical Fiber Patchcord SC/UPCUS$ 1 - 1MOQ: 1 Piece
-
Bare Fiber PLC Coupler/Splitter With Steel Tube Type- Micro Type PackageUS$ 3.5 - 56MOQ: 1 Piece
-
1*2 FTB With SC/APC Connector Optical Fiber CouplerUS$ 1 - 1MOQ: 1 Piece
-
1*2 FTB With SC/APC Connector Optical Fiber SplitterUS$ 1 - 1MOQ: 1 Piece
Brand Name
OEM
Model Number
SC/UPC-SC/UPC

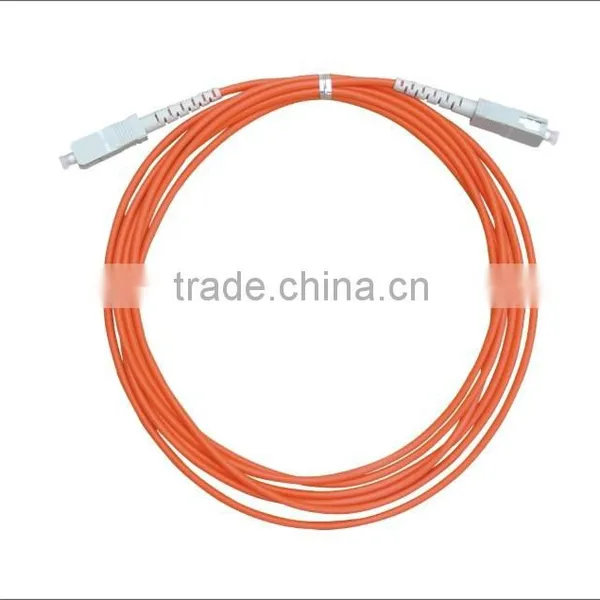

multimode patchcord simplex SC PC 3.0mm 3m fiber length
1. Features:
---Price Competitive
---Low Insertion Loss & PDL
---Factory-terminated and Tested
2. Technical specification:
| Mode | Singlemode | Multimode | ||||||||||||||
| Fiber Type | OS1 (9/125μm) | OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm) | ||||||||||||||
| Operating Wavelength | 1310 nm ; 1550nm | 850nm | ||||||||||||||
| Jacket material | PVC,LSZH,OFNR | |||||||||||||||
| Diameter of fiber | 0.9mm ; 2.0mm; 1.8mm ; 3.0mm | |||||||||||||||
| Contector | C/PC,FC/PC,LC/PC,E2000/APC | |||||||||||||||
| polishing method | PC | UPC | APC | PC | ||||||||||||
| Insertion loss (IL) | ≤0.2dB | ≤0.20 | ≤0.30 | ≤0.2dB | ||||||||||||
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||||||||||
| Repetitiveness | ≤0.1dB | |||||||||||||||
| Exchangeability | ≤0.2dB | |||||||||||||||
| Durability | >1000 times | |||||||||||||||
| Operating Temperature | -40~+80°C | |||||||||||||||
| Storage Temperature | -40~+85°C | |||||||||||||||
| Length | customized |
|||||||||||||||
