Specifications
MFR80Coal Burner for 50-85t/hr asphalt mixing plant1. environmental
2. energy saving
3.Hot-sale coal burner

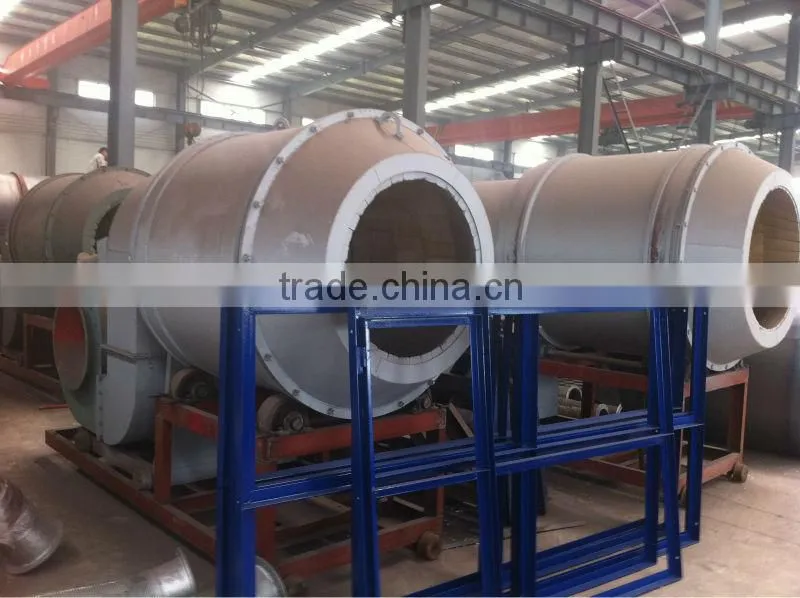

MFR1000 Rotation type Industrial pulverized coal burner for 80t/hr asphalt mixing plant
1. Various models and specifications for choose including MFJ20, MFJ40, MFJ80, MFJ120, MFJ150.
2. The broken hammer is made by NM500 high wear-resisting material.
3. The coal screw is controlled by frequency converter for coal supply .
4. First-class accessories (motor, reducer, bearing etc). User can specify a brand.
5. The shell manufactured by super thick high strength steel plate, which avoid the body vibration effectively.
Host of combustion machine
It is composed of combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system.
1.Combustion chamber (independently rotating)
1)Our combustion chamber with larger diameter and longer length, the length of the pulverized coal preheating zone is increased, which make pulverized coal burning more fully and combusted more efficient.
2)Exclusive use of combustion chamber and rear cover separation design. (Patent number: 03216099.2)
3)Reasonable design ensures that the ignition device and air supply device with longer service life.
2.Auto-rotation and auto driving
1)Combustion chamber with motor, driven rotary in operation.
2)Exclusive use of furnace and air supply device separation design, effectively solve the problems such as firebrick collapse.
3.Burner Patented Design-easy for maintenance
The combustion chamber automatically rotation by the motor to prevent furnace slagging and improve the service life of refractory brick. The traditional burner need clean the slag 3-4 days, but our company's design greatly reduces the burners' repair work. Our company use split design, so combustion chamber and air supply device moving forward and backward on the pully, which is easy for maintenance.
The Cost Comparison between Oil Burner and Coal Burner
For example: one 160TPH Asphalt mixing plant is operated 10 hours everyday.
Oil burner
Diesel Oil Consumption: 7*160*10=11200 (kg/day)
Electricity Consumption: 30*10=300 (kw.H/day)
Total cost (RMB): 6*11200+0.8*300=67440 (RMB), as well as 991 USD
Coal burner for asphalt mxing plant
Bituminous coal consumption: 2*160*10=19200 (kg/day)
Electricity consumption: 98*10=980 (kw.H/day)
Four labors salary: 4*10*8.5=185 (RMB/day)
Total cost (RMB): 19200*0.8+980*0.8+180=16324 (RMB), as well as 2400 USD
The Coal Burner will save fuel cost everyday than the Oil Burner:
67440-16324=51116 (RMB), as well as 7518 USD

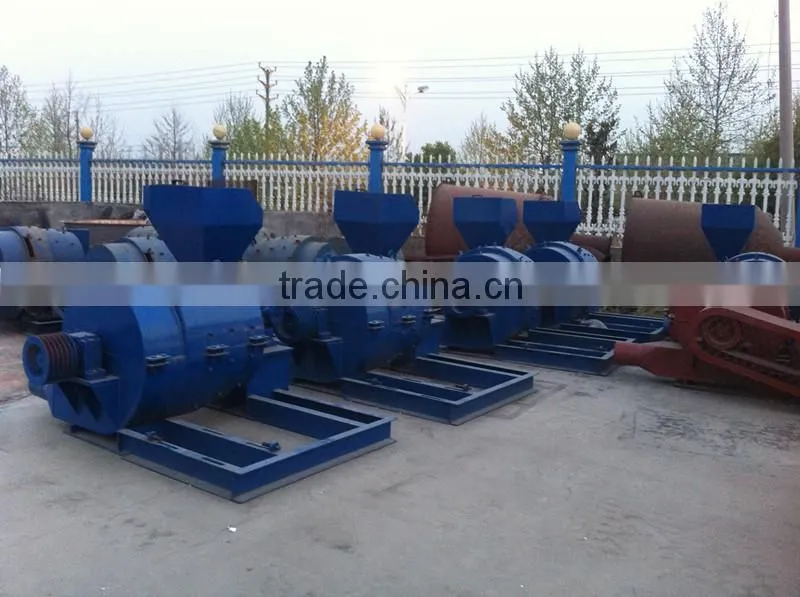

Feature of Coal Pulverized Machine
1.Adopts new structure, change the traditional burner mechanism, exclusive use of rotary combustion burners to solve the traditional burn which is easy to slag-bonding, can not burn completely etc.
2.High flame temperature, energy saving and completely burning.
3.Adopts the exclusive ingredients of firebrick of high performance, prolong service life.
4.Continuos to produce, has no need to scarfing cinder everyday.
5.Production cost is low, is only the 1/3 of oil burner.
6.With high automaticity, convenient to control aggregate temperature, discharging aggregate through dry mixing drum.
7.Port temperature measuring equipment return signal to the frequency changer of coal machine , change the aggregate temperature through frequency changer automatically control the volume of coal.

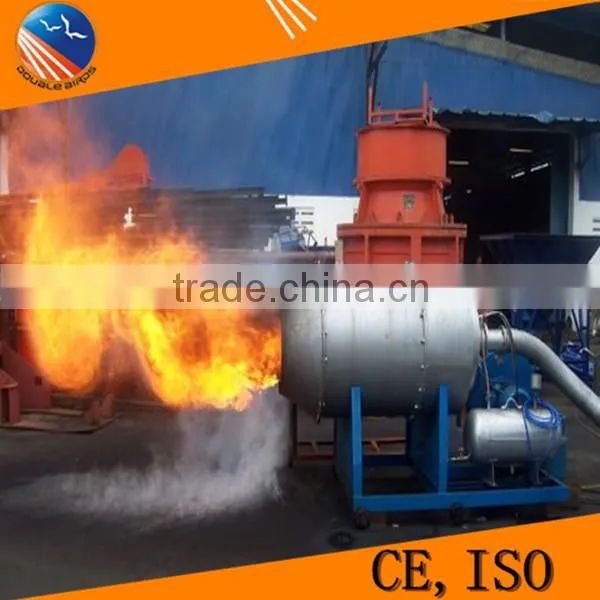

8.Ignite is simple and easy, auto and manual ignition is optional. Ignition oil gun nozzle with special structure, atomization effect, kerosene combustion.
Model |
MFR40 |
MFR80 |
MFR120 |
MFR160 |
MFR240 |
MFR320 |
Power |
31.25 kw |
41.25 kw |
73.75 kw |
97.25 kw |
138.45 kw |
202.95 kw |
Rated coal consumption |
450 kg/h |
1000 kg/h |
1500 kg/h |
2000 kg/h |
2860 kg/h |
3660 kg/h |
Mixture temperature control |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
Main machine |
LTZ40 |
LTZ80 |
LTZ120 |
LTZ160 |
LTZ240 |
LTZ320 |
Coal crusher |
FMJ40 |
FMJ80 |
FMJ120 |
FMJ120+ FMJ40 |
2*FMJ120 |
3*FMJ120 |
Oil burning igniter |
RYDH |
RYDH |
RYDH |
RYDH |
RYDH |
RYDH |
Distribution cabinet |
PD40 |
PD80 |
PD120 |
PD160 |
PD240 |
PD320 |
Combustion completeness |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
Matching asphalt plant output |
25-40 t/h |
70-85 t/h |
100-125 t/h |
140-170 t/h |
200-250 t/h |
280-320 t/h |
