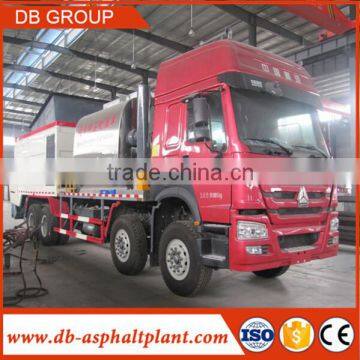

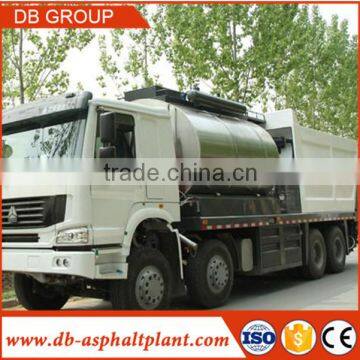

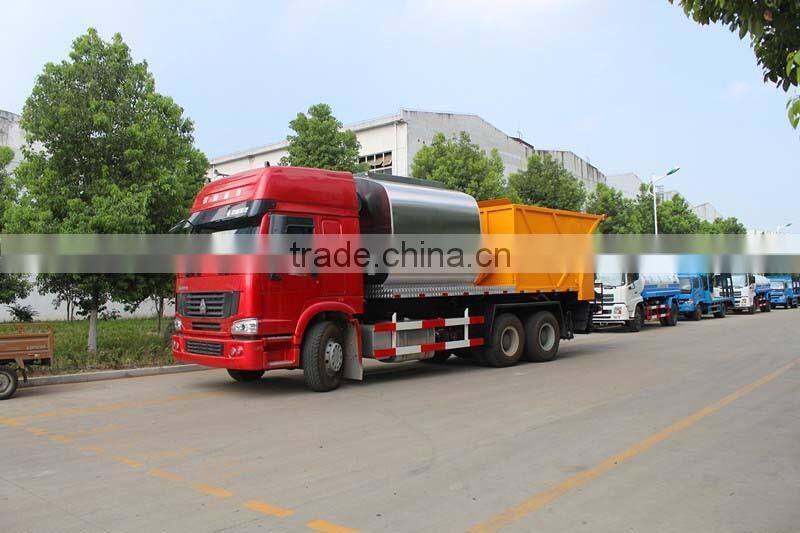

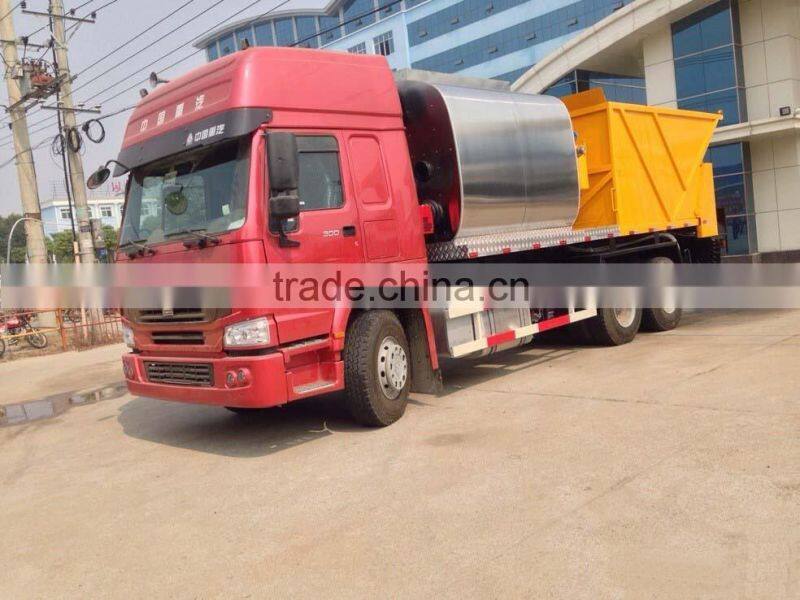

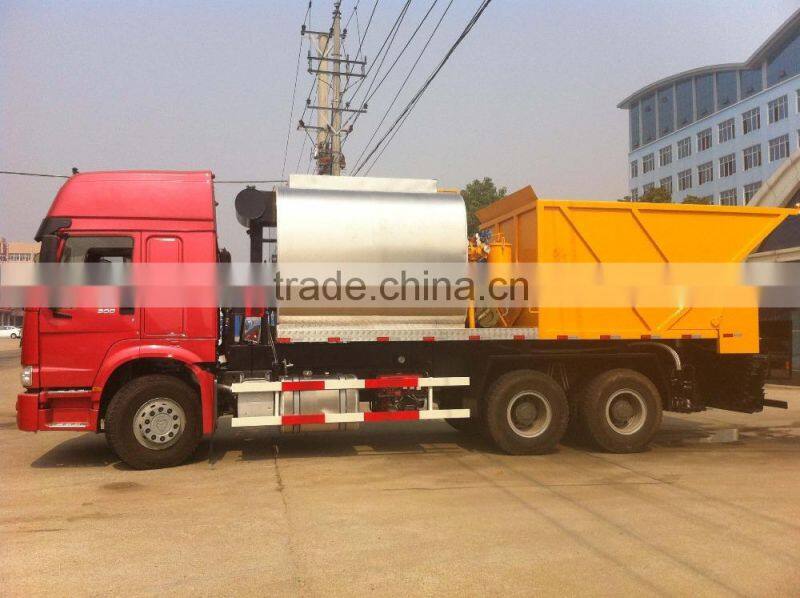

Synchronous Chip Sealer, distribute bitumen and aggregate at the same time
As a professional synchronous asphalt rubber chip sealer manufacturer, using our vast experience and state-of- the art technologies, our asphalt rubber chip sealer achieves an advanced level in terms of quality and performance, and is widely used for chip sealing of road surface, bridge waterproof and lower seal coat.it features cost-saving ,surface wear-resistant,anti-skidding and waterproof .The normal traffic could be resumed soon after the construction .it applies to the construction of the highways at different levels .
Main advantage of Asphalt Synchronous Chip Sealer
1.compact structure, short turning radius, applicable to road construction in mountainous and rural areas, widely applicability
2.Materials fall independently due to gravity, how height to be easily operated in height-limited areas including tunnels and culverts
3.Diesel oil burner heats up asphalt via heat-conducting oil, temperature controlled automatically
4.Automatic control, excellent human-machine interface
5.Recycling and spraying of asphalt are automatically controlled by the cab, easy to operate
6.Built-in stirring device, not only spray the emulsified asphalt, cutback asphalt,base asphalt and modified asphalt, but also rubber (power) asphalt
7.Independent external power driving force system to ensure scratch spray
8.efficient oil heating system, improve the heating efficiency, reduce construction auxiliary time.
9.All nozzles and pipes are used oil heating, insulation, ensure asphalt cycle smoothly
10.The computer can automatically control the spray amount of work based on the input parameters and radar data,Spray gun can also be used manually.
11.The manual / automatic are both implemented independently controlled each nozzle, with the easy to adjust spraying width.
12.Good thermal insulation ensure static performance index ≤12 ℃ / 8 hours.
13.After sprayed,high-pressure air can be used to empty the pipeline pitch; and the machine equip with a diesel fuel filler neck,Can be added to an appropriate amount of diesel fuel, combined with high-pressure air more thoroughly emptied of residual bitumen.
14.Stainless steel plate packaging, corrosion and durable.
15.you can tell us your detail requirement, our engineer can meet your all need about the Asphalt Synchronous Chip Sealer
Main technical data of Asphalt Synchronous Chip Sealer:
Model |
TSF0610A |
TSF0814A |
Chassis model |
ZZ3257N4647C1 |
ZZ3317N4267C1 |
Asphalt spraying width |
0.3-3.8m |
0.3-4.2m |
Spraying quantity |
0.5-2.5kg/m² |
0.5-2.5kg/m² |
Stone spraying width |
0.3-3.8m |
0.3-4.2m |
Asphalt tank capacity |
6000L |
8000L |
Stone storage capacity |
10m³ |
14m³ |
Spray medium |
Base Asphalt,Modified asphalt,Diluted asphalt, Emulsified asphalt,Rubber asphalt |
|
Asphalt heating way |
Automatic diesel oil burner |
|
Dimension |
9838*2496*3840mm |
11610*2496*3860mm |
Brand of the main parts of Asphalt Synchronous Chip Sealer:
Name |
Brand |
Origin |
Chassis |
HOWO,8*4,SINOTRUK |
China |
Asphalt pump |
JOHNSON |
Belgium |
Heat-transfer oil pump |
JOHNSON |
Belgium |
Oil burner |
RIELLO |
Italy |
Asphalt pump drive motor |
SAI |
Italy |
Heat-transfer oil drive motor |
WHITE |
USA |
|
constant pressure variable pump
|
REXROTH |
Germany |
Drum drive motor |
WHITE |
USA |
|
cartridge valve
|
SUN/HydraForce |
USA |
control system |
MIEMENS
|
Germany |
Auxiliary engine |
CYD |
China |
|
low-voltage electrical components
|
SCHNEIDER,WEIDMULLER |
France, Germany |

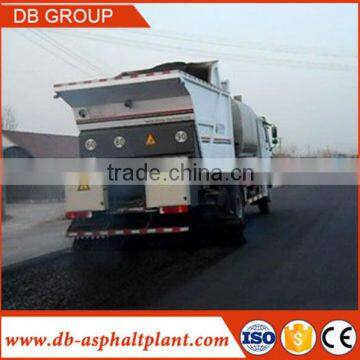

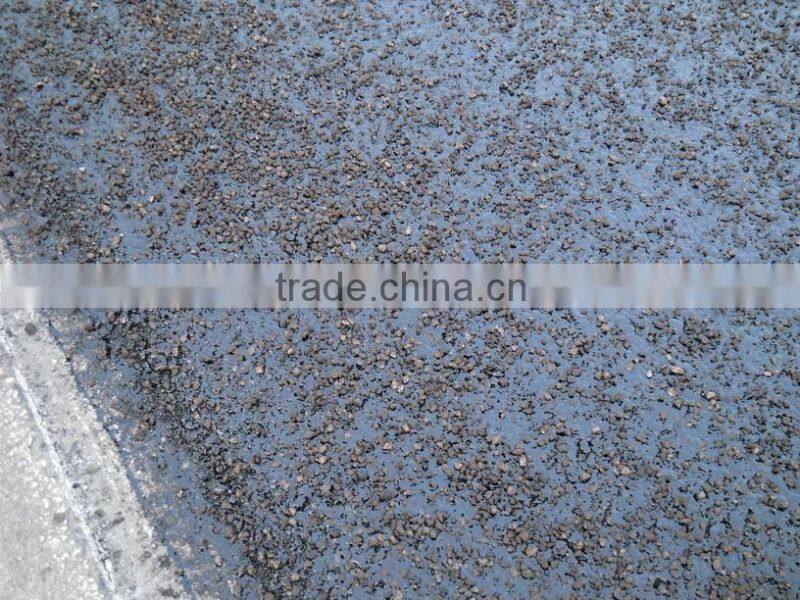

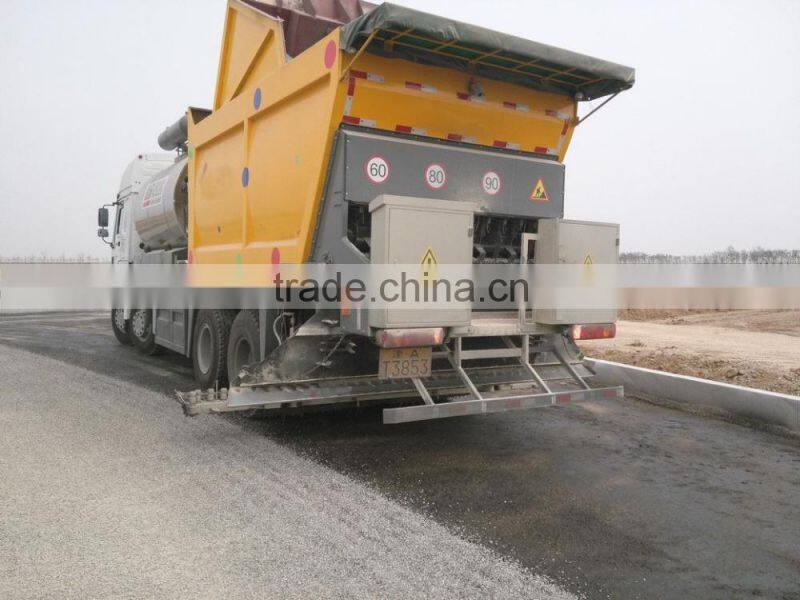

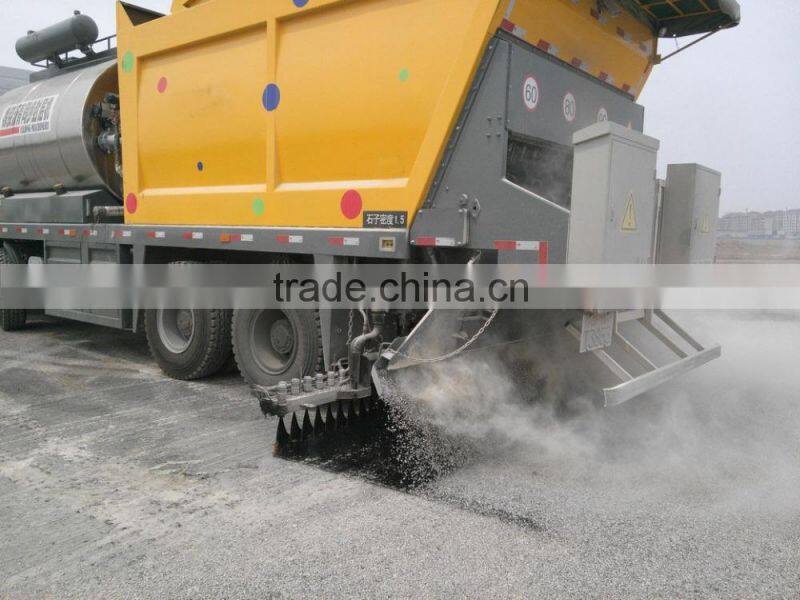

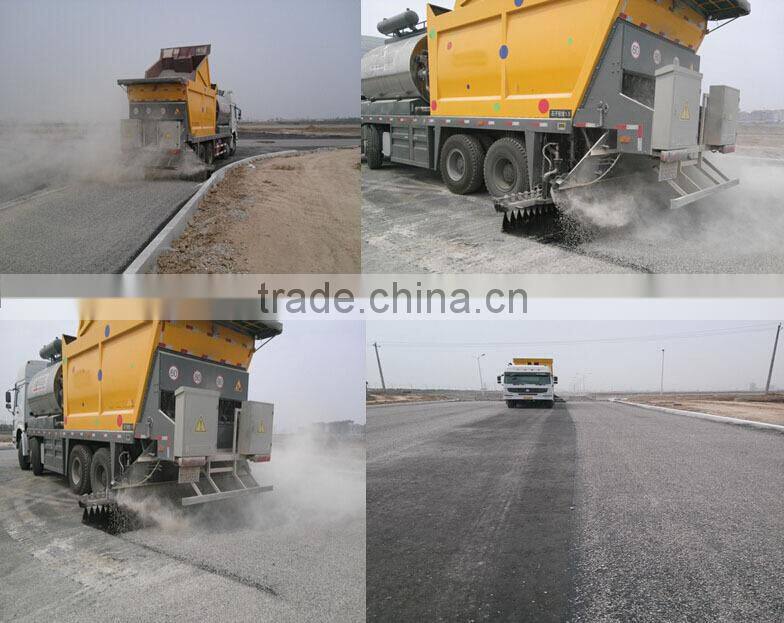

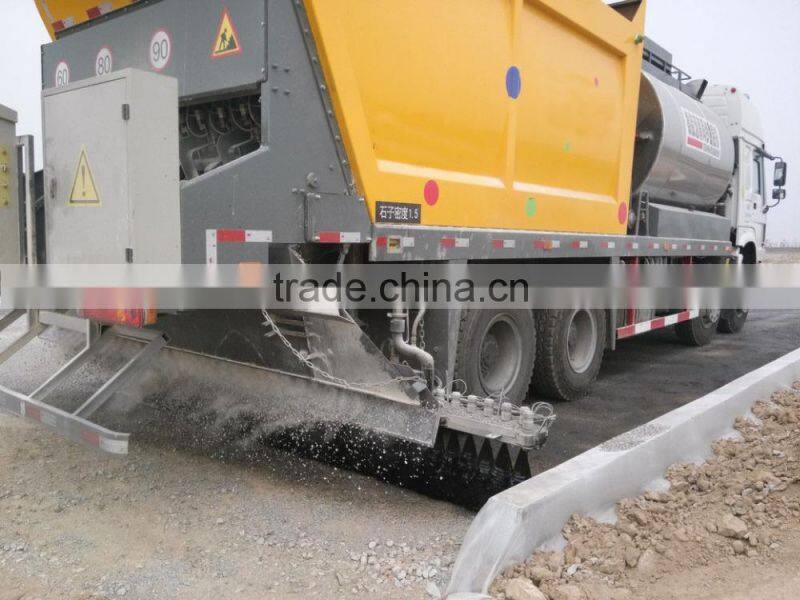

construction site of the Asphalt Synchronous Chip Sealer:
if you want to know more detail information of the Asphalt Synchronous Chip Sealer,please contact with me, i will reply to you in two hours
