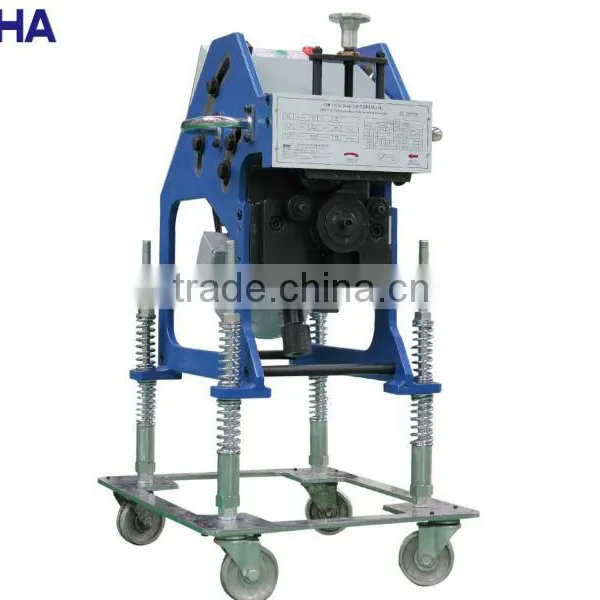

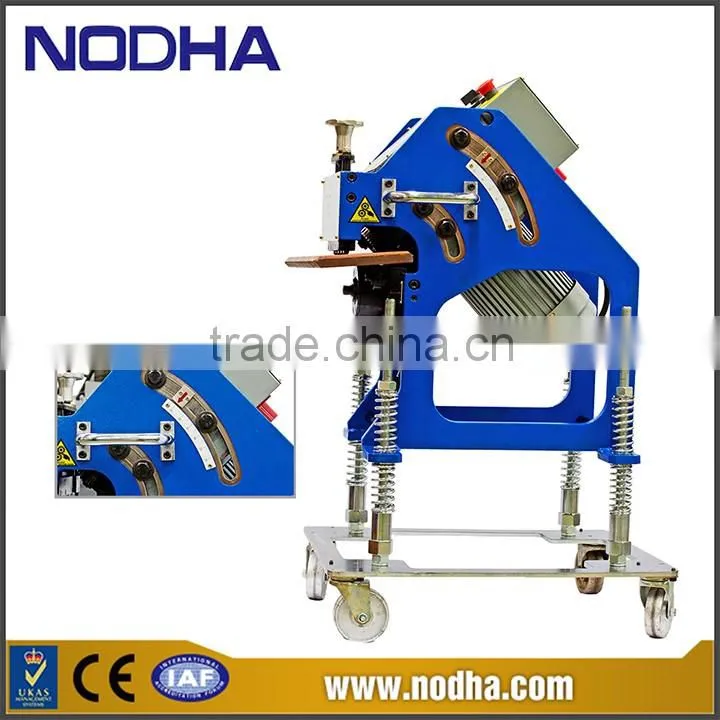

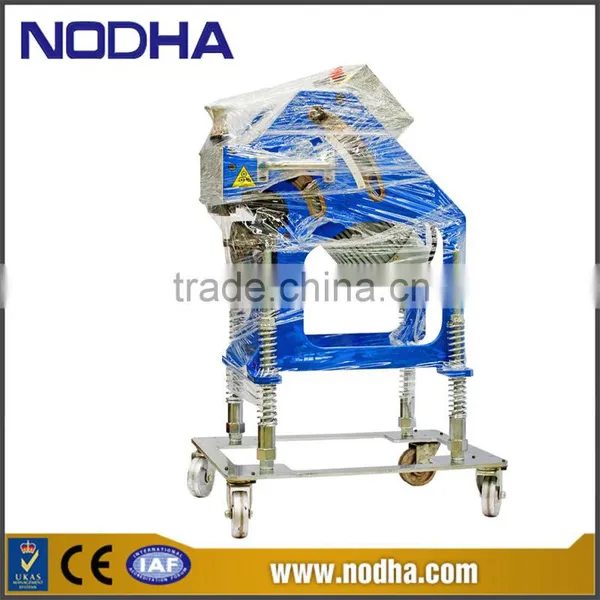

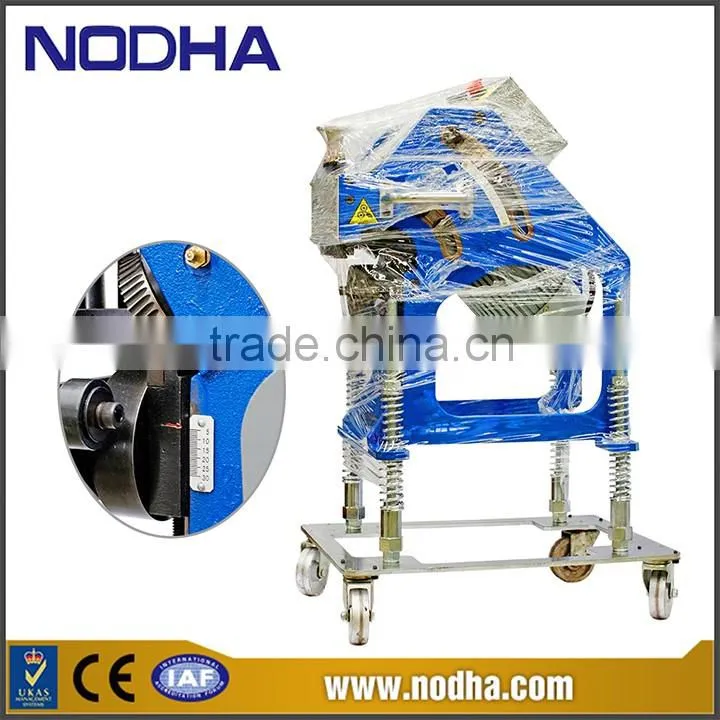

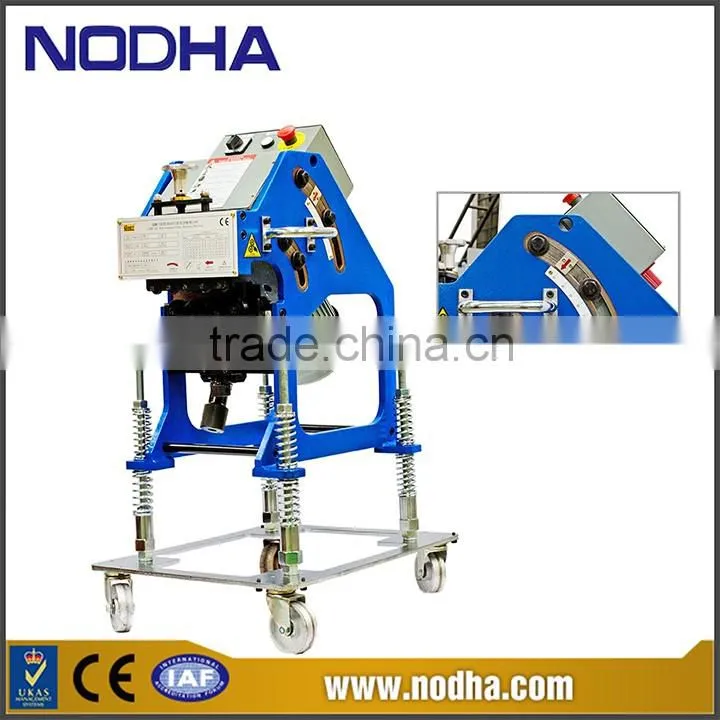

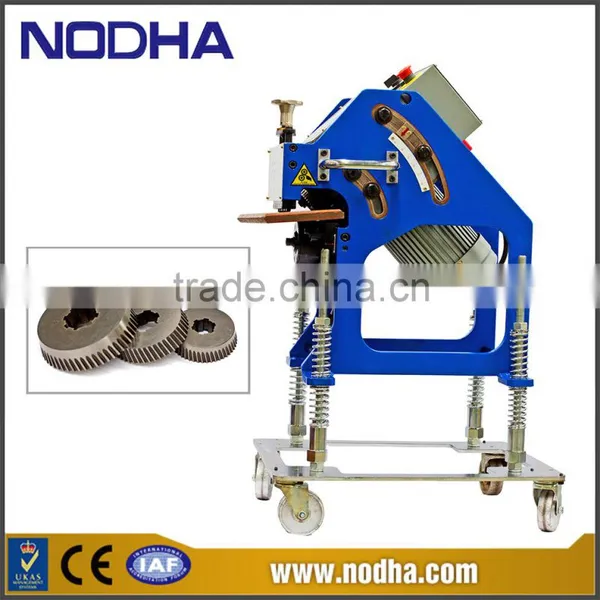

High Efficiency Plate Beveling machine Bevel Gear Cutting Machine For 6-30mm Thick Plate GBM-12D
Features
Adopt Japan original motor and reduction gear box, Ultra-high energy efficiency IE3
standard, High efficiency of reduction gear box make the Energy-saving 50%. Cold beveling, non-oxidation on
the surface, and it can process Low carbon steel, stainless steel, aluminum alloy etc material.
Adjustable angle could meet almost all the requirement.
Power Supply: AC 380V/220V 50/60Hz
Motor Power: 1500W
Motor Speed: 1400RPM
Bevel Speed: 1.5- 2.6m/min
Net Weight: 175 kgs
Bevel Angle: 25 - 45 Deg.
Single Bevel Width: 12 mm
Max. Bevel Width: 18 mm
Processing Plate Thickness: 6 - 30 mm
Processing Plate Width: ≥ 75 mm
Processing Tube Dia: ≥ 150 mm
Shipping
shipping by SEA and EXPRESS
Service
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
