Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Nodha |
Model Number: | GMMA-80A | Weight: | 300kg | Certification: | CE ISO |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

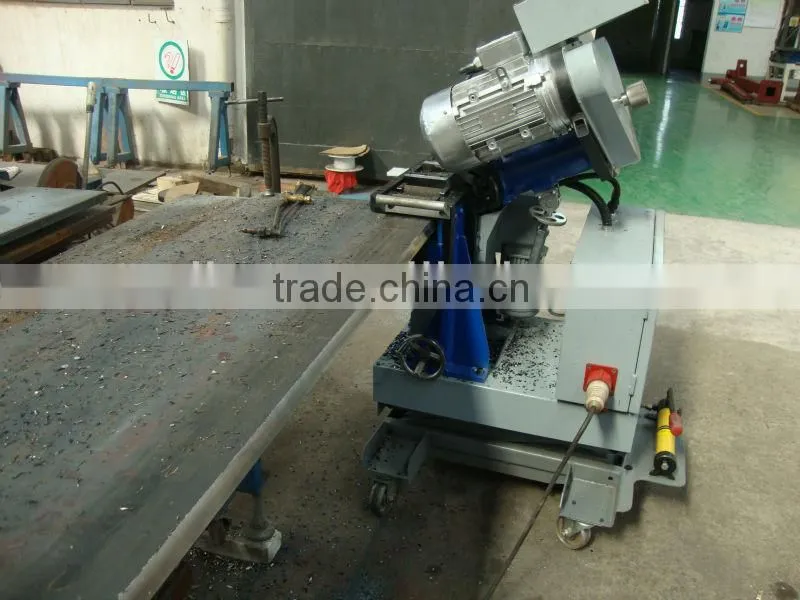

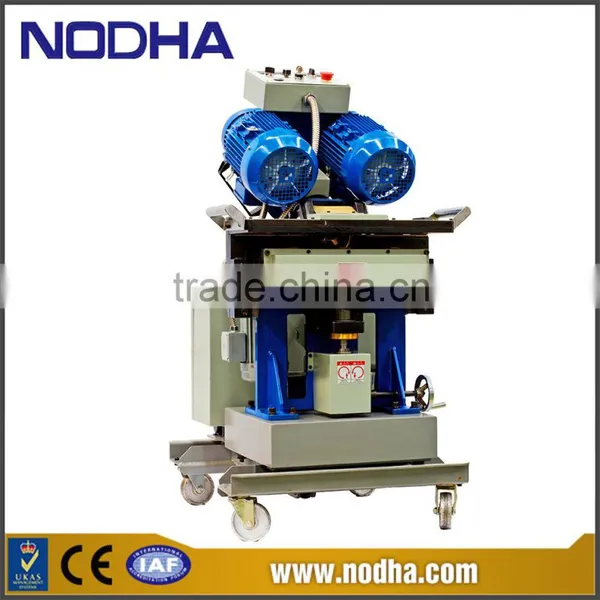

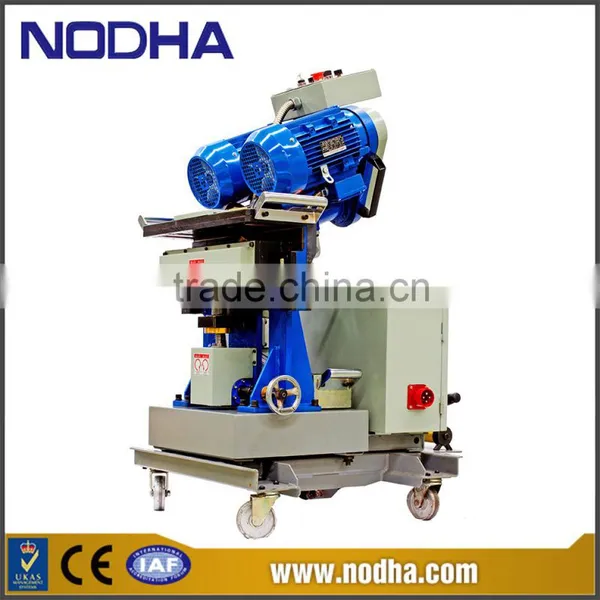

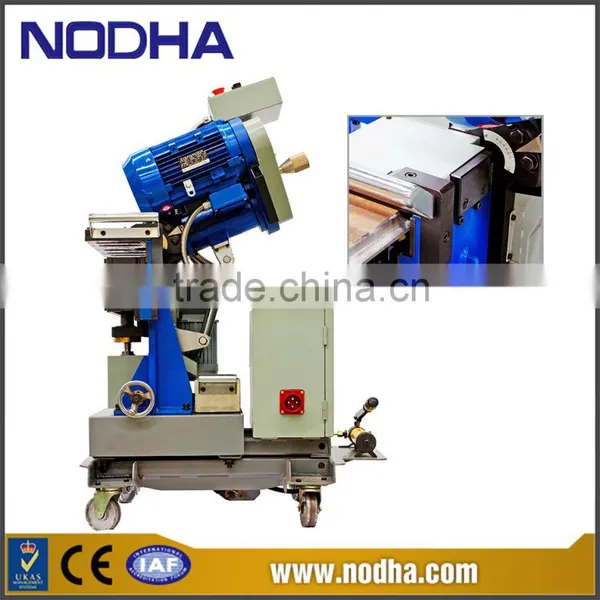

GMMA-80A Plate Edge Milling Machine:
Adjustable for the feed speed
Adjustable for the milling speed
Digital display for the feed speed
Digital display for the milling speed
Cold cutting, non-oxidation on the surface
Max.Edge milling width:46mm
No scrap iron splash, more safe
High efficiency edge milling: 850mm/min
Milling angle can be adjusted between 10 Deg to 60 Deg
Power Supply: AC 380V 50Hz
Motor Power:2*2200W
Motor Speed:1450r/min
Mill Speed:600-1045r/min
Feeding Speed:(Adjustable)0-1500mm/min
Milling Angle:25 Deg, 30 Deg, 35 Deg, 40 Deg, 45 Deg, 60 Deg
Single Mill Width:13mm
Max.Edge Width:46mm
Processing Plate Thickness:8-60mm
Min.Processing Plate Width:70mm
Net Weight(GMMA-25A):395kgs
Package:
