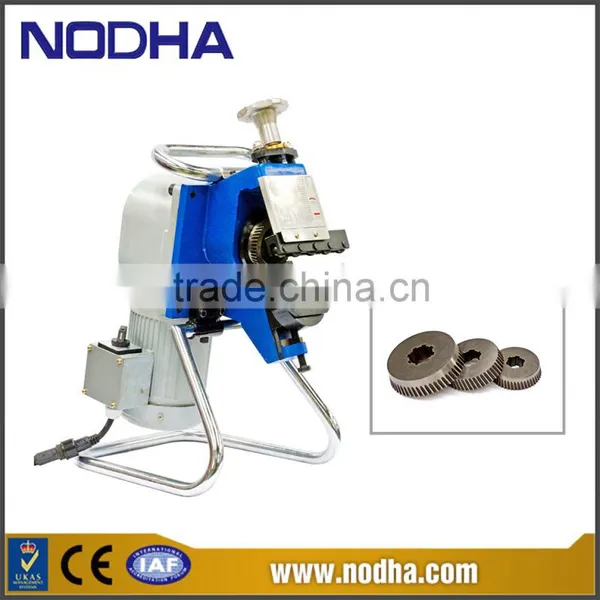

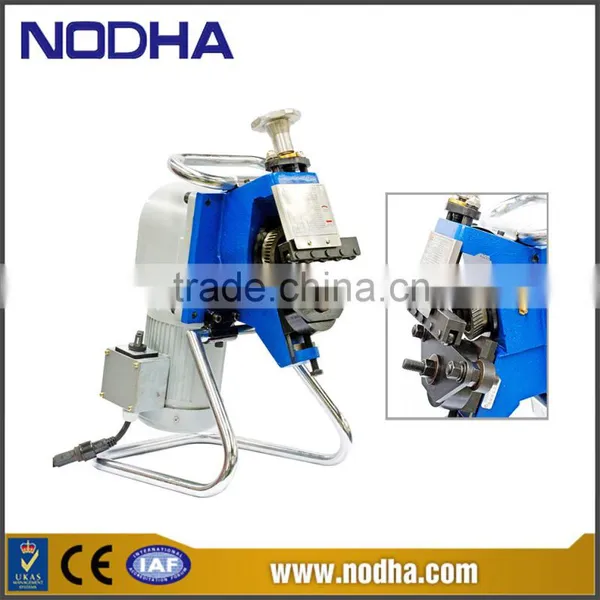

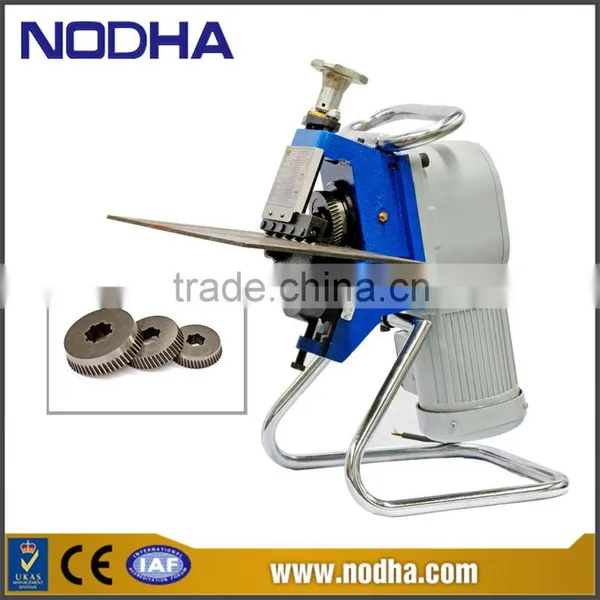

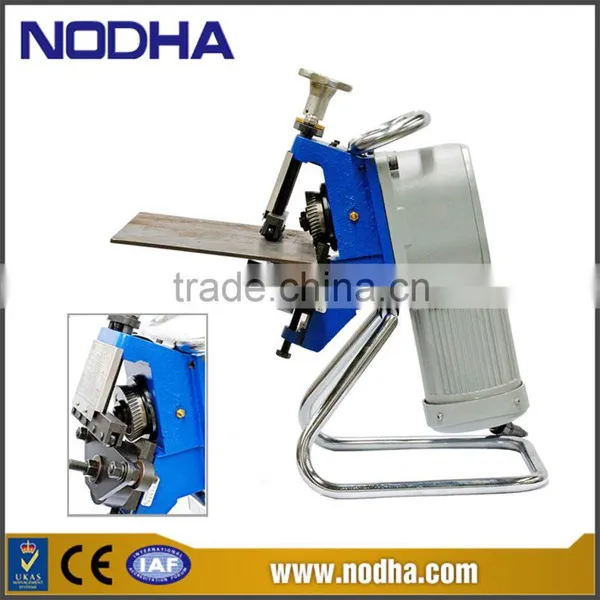

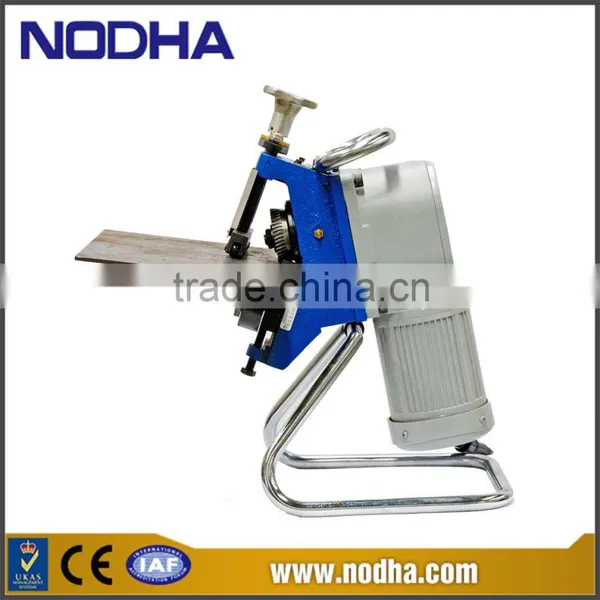

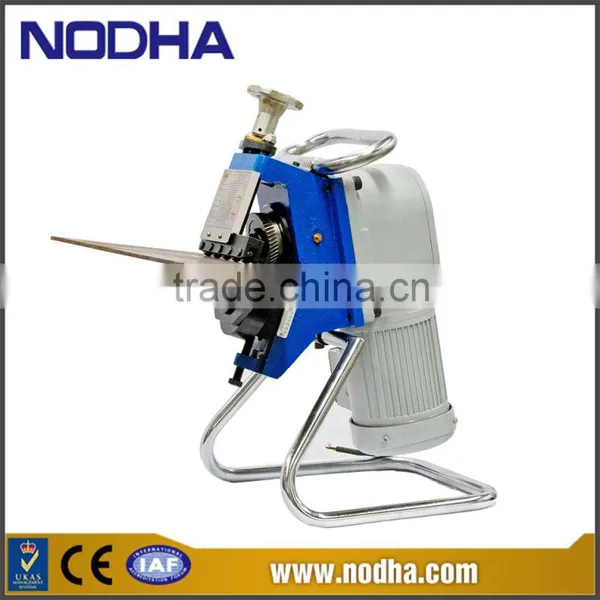

Edge Saving Edge Milling Machine Hand Beveling Machine GBM - 6D
The machine can processing plate thickness 4 to 16mm, N.W is 33kg, bevelling speed 1.2 - 1.8m/min.
Features
Net weight is only 33kgs, adopt Japan original motor and reduction gear box, Ultra-high energy efficiency IE3
standard, High efficiency of reduction gear box make the Energy-saving 33%. Cold beveling, non-oxidation on
the surface, and it can process Low carbon steel, stainless steel, aluminum alloy etc material.
Adjustable angle could meet almost all the requirement.
Power Supply: AC 380V/220V 50Hz
Motor Power: 400W
Motor Speed: 1400RPM
Bevel Speed: 1.2-1.8m/min
Net Weight: 33 kgs
Bevel Angle: 25, 30, 35, 40 and 45 Deg.
Single Bevel Width: 6mm
Max. Bevel Width: 8mm
Processing Plate Thickness:4-16mm
Processing Pipe-line Dia: > Dia 260mm
Processing Tube Dia: > Dia 110mm
Min.Processing Plate Width: >55mm
Shipping
shipping by SEA and EXPRESS
Service
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
