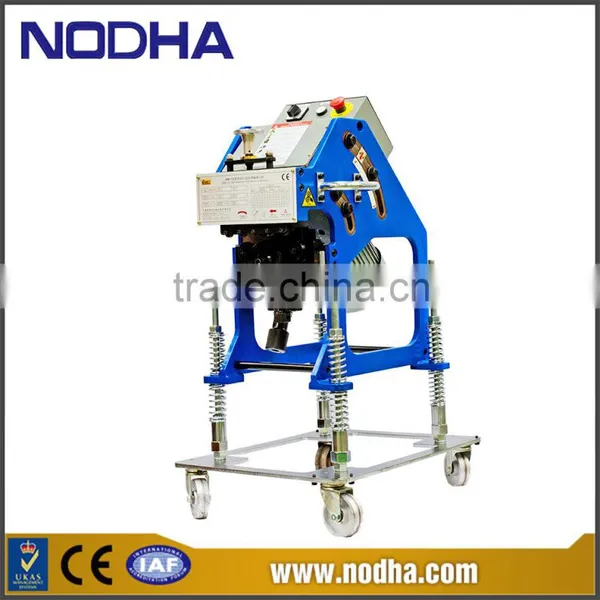

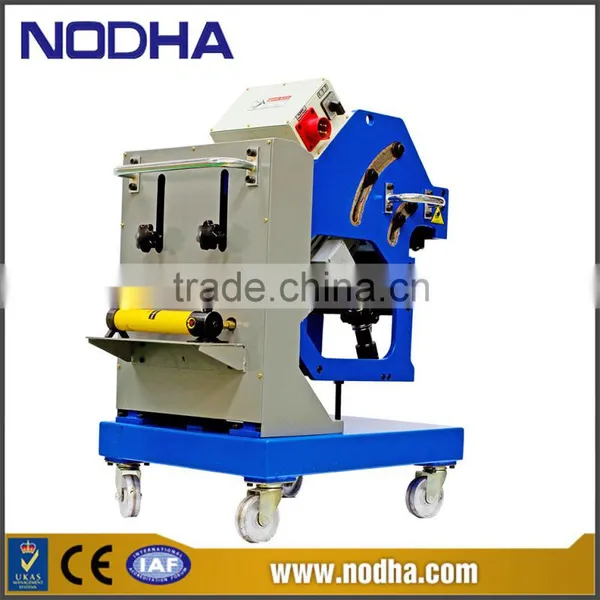

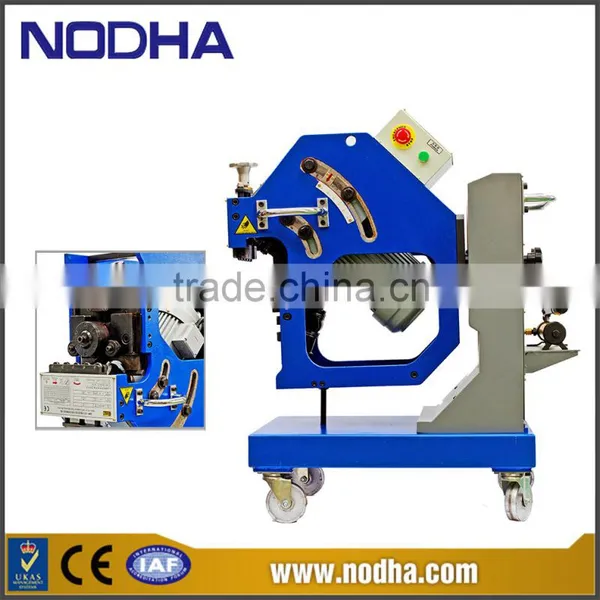

GMB-12C/12CR High Efficiency Plate Beveling Machine :
High efficiency of reduction gear box
Can process steel, pipe head
High power motor:1500W
Max.bevel width:18mm
Cold cutting, non-oxidation on the surface
High efficiency:2.5m/min
No scrap iron splash, more safe
Beveling angle can be adjusted between 25Deg to 45Deg
1. Use the high quality gear reducer and motor, and lower noise;
2. Complete the work automatically;
3. Bevel angle variety, can adjust between 25°to45°freely;
4. No decarburization phenomenon, can welding directly;
5. Install trolley to reduce the shake;
6. Max. single bevel width arrive 12mm, 18mm can be gotten by several times;
7. Processing speed bigger than 1.5m/min, and save the time greatly;
8. Totally automatic propel bevelling machine, low labor cost and intensity;
9. Export wooden packaging, regular transport to make machine intact.;
10.Independent research and development, low maintenance cost.
Power Supply: AC 380V/220V 50Hz
Motor Power:1500W
Motor Speed:1400RPM
Bevel Speed:1.5-2.5m/min
Bevel Angle:25 Deg, 30 Deg, 35 Deg, 40 Deg, 45 Deg(Adjustable).
Single Bevel Width:12mm
Max. Bevel Width:18mm
Processing Plate Thickness:6-30mm
Processing Tube Dia:>Dia 150mm
Min.Processing Plate Width:>75mm
Net Weight(GBM-12C):175kgs
Processing case:
Package:
