Help CenterPipe Beveling Machine
Related Products
Specifications
Pipe/Tube Cutting and Beveling MachineLight weight and compact design
Easy set-up & Operation

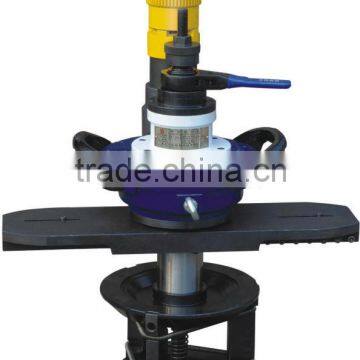

Pipe beveling machine
The ID mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Features:
Cold Beveling improves safety
Feed ratchet wheel make tool fed / back easy
Fast, Precision, On-site Beveling
Light weight and compact design
Application:
Oil & Gas
Power Plant
Chemical Plant
Nuclear Power
Process Plant & Fabrication
Ship Building & Repair
Selection Guide
Model |
Working Range (ID-OD) |
Working Thickness (mm) |
|
Inch |
mm |
||
30 |
1/2”-1” |
18-38 |
≤15mm |
80 |
1”-3” |
28-89 |
≤15mm |
120 |
11/4”-4” |
40-120 |
≤15mm |
159 |
21/2"-5" |
65-159 |
≤20mm |
252-1 |
3"-10" |
80-273 |
≤20mm |
252-2 |
3"-10" |
80-273 |
≤75mm |
352-1 |
6"-14" |
150-356 |
≤20mm |
352-2 |
6"-14" |
150-356 |
≤75mm |
426-1 |
10”-16” |
250-426 |
≤20mm |
426-2 |
10”-16” |
250-426 |
≤75mm |
630-1 |
12"-24" |
300-630 |
≤20mm |
630-2 |
12"-24" |
300-630 |
≤75mm |
Order Guide
Before you place order to us, please let us know the following information:
- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U,V or others)
- Advise your pipe material ( Carbon steel, stainless steel or others)
- Other special demands about machine
- The spare parts needed
