China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine

China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-1
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-2
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-3
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-4
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-5
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine thumbnail-6
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-1
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-2
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-3
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-4
China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-5

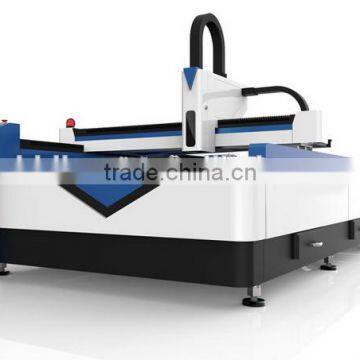

China Manufacture Excellent Quality Fiber Carbon Sheet Laser Cutting Machine photo-6
US$ 35,000 - 46,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Crytal, MDF, Metal
Contact Supplier Request Quote Chat Now
Shanghai Hongli Laser Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type Fiber Laser
Applicable Material Crytal, MDF, Metal
Cutting Thickness Depends on the material
Cutting Area 3000x1500mm
Cutting Speed 5-30Meters / Min ( up to materials )
CNC or Not Yes
Cooling Mode Water Cooling
Control Software Ruida Software
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin Shanghai, China
Brand Name K&N
Model Number ZL-SC3015
Certification CE, ISO, SGS, Other, CE, ISO, SGS, FDA
After-sales Service Provided Engineers available to service machinery overseas

China manufacture excellent quality fiber carbon sheet laser cutting machine



Product Feature

Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

Advantages
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design;easy to flexible manufacturing requirements.

Applied materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

Applied Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.





Product parameter of fiber carbon sheet laser cutting machine

Model  ZL-SC1325 ZL-SC3015
Working Area  1300*2500mm 3000*1500mm
Laser Power  200W 300W 500W 1000W
Laser Source Raycus or IPG Fiber Laser source
Laser Technology Germany Technology
X,Y,Z Work Area 2500*1300*150mm 3000*1500*150mm
Max.Cutting Thickness (Carbon Steel) 1mm 3mm 5mm 8-12mm
Max.Cutting Speed 5-30Meters / Min ( up to materials )
Max.Location Speed 60m/min
Laser wavelength 1070nm
Minimum line width ≤0.1mm
Location Precision ≤±0.05 mm
Re-location precision ±0.02 mm
Max.Moving speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power demand  380V/50HZ
Cooling way Water cooling
Worktable max.load 1000KGS
Transmission way Imported ball screw
Table-driven system Japanese Panasonic Servo motor & Driver
Focus Method Dynamic Following and Automatic Adjust Focus
Control Method Offline movement Control





Product picture of fiber carbon sheet laser cutting machine

China manufacture excellent quality fiber carbon sheet laser cutting machine

China manufacture excellent quality fiber carbon sheet laser cutting machine


China manufacture excellent quality fiber carbon sheet laser cutting machine

China manufacture excellent quality fiber carbon sheet laser cutting machine

China manufacture excellent quality fiber carbon sheet laser cutting machine

China manufacture excellent quality fiber carbon sheet laser cutting machine

product categories

 China manufacture excellent quality fiber carbon sheet laser cutting machine

company profile

 China manufacture excellent quality fiber carbon sheet laser cutting machine

Shanghai Kraus&Noble Industrial Co.,Ltd was founded in 2002. For 14 years, K&N laser has always been devoted to studying and manufacturing laser cutting, engraving and marking etc.
With all K&N staff's persistence and hard working, K&N laser has developed to a large-scale international manufacturing company. K&N's product technology stems from Germany and is devoted to designing,test and production according to the European industry standard. More accurate, more automatical and higher quality's products with intimate after-sales service enable K&N to be the leader of laser industry. Suitable services for customers,3 year warranty products, standard scientific management make K&N earn the best reputation and worldwide trusted customers.
For 14 years,K&N laser machines cover all Chinese markets and also are very popular in more than 80 countries such as America, West Europe,South Asian, East Asian etc.K&N laser will try our best to serve for you suitable laser solutions.Welcome to join K&N group, share top laser products and services together with worldwide customers.
