Specifications

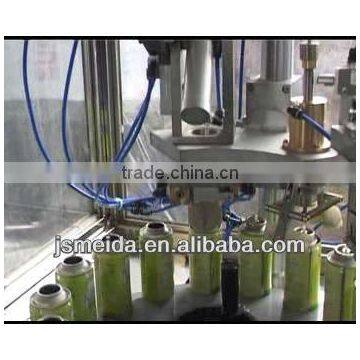

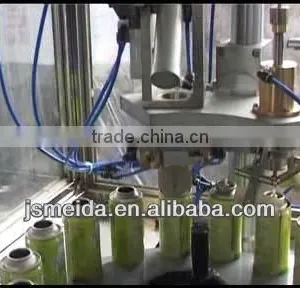

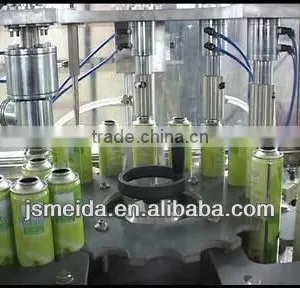

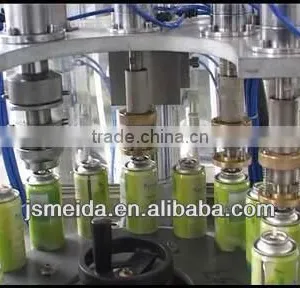

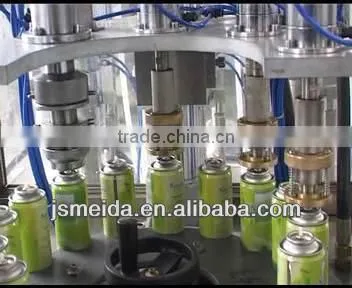

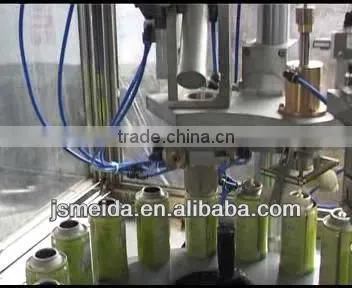

speed 40-60cans/min, stainless steel 316L for liquid dosing and gas metering cylinders, suitable for all typical aerosol productautomatic aerosol filling line, including cans arranging machine, liquid filling machine, propellant charging machine, weighing machine, valve inserting machine, water bath leakage testing machine, actuator pressing machine, cap pressing machine, labeling machine, conveyor and packing table. The whole line speed is 2400-3600cans per hour, some working stations are optional for customer depending on budget. Key pneumatic parts are imported from Gemernay, Japan and Itay. Parts for liquid metering system and gas dosing system are all manufactured by CNC machines. High automation, aerosol products quality online checking without any interruption of the line running.
QGQ750 automatic aerosol filling line is suitable for all typical aerosol prodcuts manufacturing covering house care, personal care, health care, car care and other industries. Optional working stations such as valve inserting, weight checking, water bath leakage testing, actuator pressing and cap pressing are optional for customer depending on budget. All the parts that will contact material are made of stainless steel 316 by CNC machine to guarantee an accurate filling.
| single luqid fillling head capacity | 10-250ml |
| total liquid filling capacity (three heads) | 10-750ml |
| single gas filling head capacity | 10-250ml |
| total gas filling capacity | 10-750ml |
| filling tolerance | ≤±1% |
| applicable valve | 1" standard valve |
| crimping diameter | 26.5-28mm |
| crimping depth | 4.5.5.5mm |
| applicable can diameter | 35-70mm |
| applicable can height | 70-330mm |
| Max. comprssed air consumption | 3M3/min |
| Compressed air working pressure | 0.6-0.7Mpa |
