2015 Different Kinds of Turning CNC Cutting Tools
Sending Enquires Now for Free Sample
MACFSSC Principle for Inserts Selection
It is particular important for the selection of cnc machine tools. Due to the various brands and models of machine tools in the market, are you troubled by choosing the right ones. Selecting suitable tools can improve machining precision, reduce the defective goods, cost of tools and extend the service life of cutters.
And Here comes the MACFSSC Principle in choosing inserts:
Tool selection is very complex, so, free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804

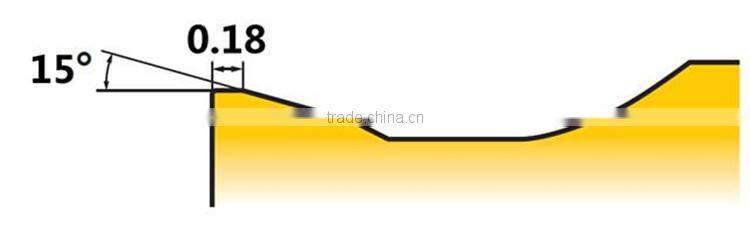

Geometry For Different Kinds of Turning CNC Cutting Tools
Geometry Features:
1. VS for semi-finishing of general steel and alloy steel.
2. Throughout groove and wide chip groove make cutting available in unstable working conditions.
3. Long chip groove allows high depth of cuts.
Different Kinds of Turning CNC Cutting Tools Grade Application
| Grade | Cutting Range | Coating | Advantage |
|
PEA31
|
Finishing and |
|
1. Super fine MT-TiCN, Al2O3 and TiN |
|
PEB51 |
Semi-finishing to |
|
1. Super fine MT-TiCN, Al2O3 and TiN |

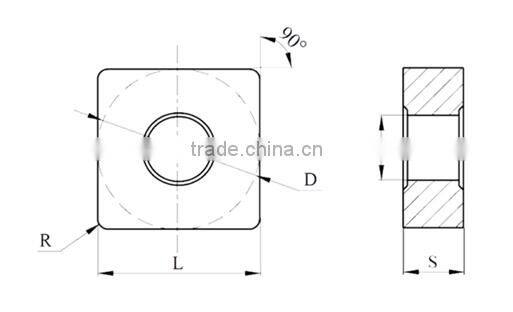

SNMG-MQ, Square 90°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| SNMG090304-MQ | 9.525 | 9.525 | 3.18 | 3.81 | 0.4 |
| SNMG090308-MQ | 9.525 | 9.525 | 3.18 | 3.81 | 0.8 |
| SNMG120404-MQ | 12.7 | 12.7 | 4.76 | 5.16 | 0.4 |
| SNMG120408-MQ | 12.7 | 12.7 | 4.76 | 5.16 | 0.8 |
| SNMG120412-MQ | 12.7 | 12.7 | 4.76 | 5.16 | 1.2 |
| SNMG120416-MQ | 12.7 | 12.7 | 4.76 | 5.16 | 1.6 |
| SNMG150608-MQ | 15.875 | 15.875 | 6.35 | 6.35 | 0.8 |
| SNMG150612-MQ | 15.875 | 15.875 | 6.35 | 6.35 | 1.2 |
| SNMG190612-MQ | 19.05 | 19.05 | 6.35 | 7.94 | 1.2 |
Two Simple Steps of Inserts Selection
Step 1, According to shaps of Inserts——
Pls click the blue underline words for checking

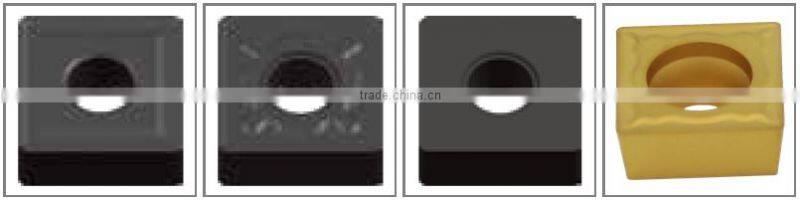

80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades of Carbide Insert——
Pls click the blue underline words for checking

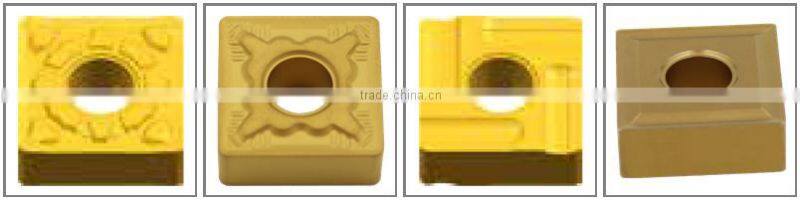

FQ for finishing of MQ for semi-finishing of VS for semi-finishing of MS for medium cutting of
general steel and alloy steel general steel and alloy steel general steel and alloy steel stainless steel and mild steel
KU for KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
machining cast iron and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
AL for aluminum alloy cutting
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for 2015 Different Kinds of Turning CNC Cutting Tools!
Pls Send Your Enquires for Free Samples of different kinds of cutting tools!
