50 Years Tungsten Carbide Cutting Insert
- 41000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Zy Super Hard External Turning Tool PCD Wide Edge Commutator Turning Tools
- CNC PCD PCBN Turning Milling Inserts
- sell zhuzhou tungsten carbide cutting tools
- DCMT11T304-TS Carbide Inserts Turning Inserts for Steel and Stainless Steel DCMT Shape
- Single-sided CCMT060204-SM Turning Inserts for Semi Finishing and Finishing Positive Rake Low Cutting Forces
- CNMG120404-TF Rhombic Inserts Positive Rake Angle Varies Along the Edge to Negative Prevent Chipping
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Made 9, Made 9 | Model Number: | VCMT-PG/VCGT-PG |
Material: | Tungsten Carbide | Usage: | Other, Internal and External Tool | Hardness: | 80 HRL |
Coating: | CVD/PVD |
Product Description
cutting insert
50 Years Tungsten Carbide Cutting Insert
Sending Enquires Now for Free Sample!!!
Professional Rules of Turning Inserts Selection
Due to the various brands and models of machine tools in the market, are you troubled by choosing the right tools. To improve the machining precision, reduce the defective goods, extend the service life of cutters and reduce the cost of tools.
Here comes the MACFSSC principle of seven points that should be concerned in choosing inserts:
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804
Geometry Details of Tungsten Carbide Cutting Insert
Geometry Features:
1. PG for light cutting of general steel, alloy steel, stainless steel and cast iron.
2. Strong tool nose due to flat cutting edge and sharp cutting edge due to double rake angle.
3. Steady chip control when the depth of cut is less than 1mm due to Peninsula-shaped chip breaker.
Tungsten Carbide Cutting Insert Grade Info.

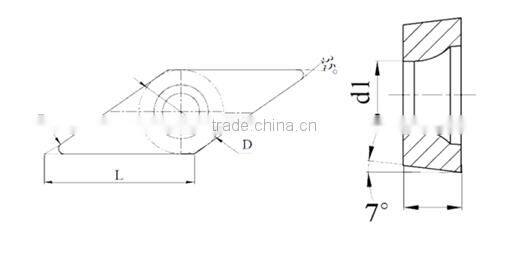

VCMT/VCGT-PG, Rhombic 35°, with Hole
Ordering Code | Dimensions(mm) | ||||
L | D | S | d1 | R | |
VCMT110304-PG | 11.2 | 6.35 | 3.18 | 2.8 | 0.4 |
VCMT160404-PG | 16.6 | 9.525 | 4.76 | 4.4 | 0.4 |
VCMT160408-PG | 16.6 | 9.525 | 4.76 | 4.4 | 0.8 |
VCGT110304-PG | 11.2 | 6.35 | 3.18 | 2.8 | 0.4 |
VCGT160404-PG | 16.6 | 9.525 | 4.76 | 4.4 | 0.4 |
VCGT160408-PG | 16.6 | 9.525 | 4.76 | 4.4 | 0.8 |
Two Simple Steps of Cutting Insert Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of MS for medium cutting of KU for
general steel and alloy steel general steel and alloy steel stainless steel and mild steel machining cast iron
KH for cast iron cutting PG for light cutting of general steel PG for light cutting of general steel AL for aluminum alloy cutting
and heavy cutting alloy steel, stainless steel, cast iron alloy steel, stainless steel, cast iron
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for 50 Years Tungsten Carbide Cutting Insert!
Pls Contacting Us For Free Samples of cutting insert!
