MACFSSC Principle for Inserts Selection
It is particular important for the selection of cnc machine tools. Due to the various brands and models of machine tools in the market, are you troubled by choosing the right ones. Selecting suitable tools can not only improve machining precision, reduce the defective goods and extend the service life of cutters, but also greatly reduce the cost of tools. Come and choose the most suitable tools right now!
And Here comes the MACFSSC principle of seven points that should be concerned in choosing inserts:
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804
Geometry Details of lathe machine tool accessories
Geometry Features:
1. KH for cast iron cutting and heavy cutting.
2. Double-sided chip breaker.
3. Strong cutting edge and wide land for improved performance.
WNMG lathe machine tool accessories Grade Details
| Grade | Cutting Range | Coating | Advantage |
| PEA31 | Finishing and |
|
1. Super fine MT-TiCN, Al2O3 and TiN |
PEB51 |
Semi-finishing to
|
|
1. Super fine MT-TiCN, Al2O3 and TiN
|
KEA31 |
Finishing and |
|
1. MT-TiCN and thick Al2O3 coated on micro-grain carbide substrate, superior wear resistance. Special postprocessing with smooth coating and shows superior wear resistance and fracture resistance. 2. Application: Suitable for nodular iron and gray iron in continuous and light interrupted conditions. |
KEA51 |
Semi-finishing |
|
1. Thick MT-TiCN+Al2O3 coated on toughness micro-grain carbide substrate,keeping superior wear resistance and greatly improved toughness. conditions which require high toughness.
|

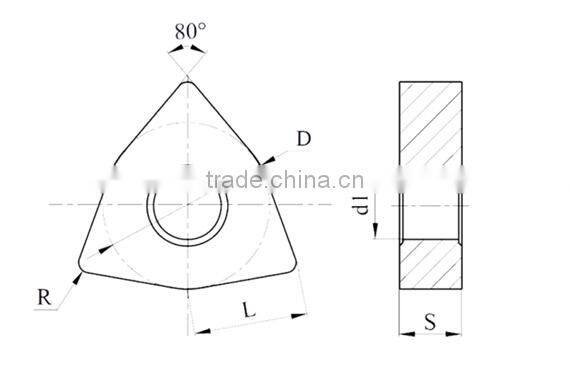

WNMG-KH, Trigon 80°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| WNMG060408-KH | 6.5 | 9.525 | 4.76 | 3.81 | 0.8 |
| WNMG080408-KH | 8.7 | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-KH | 8.7 | 12.7 | 4.76 | 5.16 | 1.2 |
Two Simple Ways of Inserts Selection
Step 1, According to shapes of inserts——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, Accoding to grades of inserts——
Note: Pls check each blue underlined works to check
FQ for finishing of MQ for semi-finishing of MS for medium cutting of KU for
general steel and alloy steel general steel and alloy steel stainless steel and mild steel machining cast iron
KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for carbide cnc lathe machine tool accessories!
