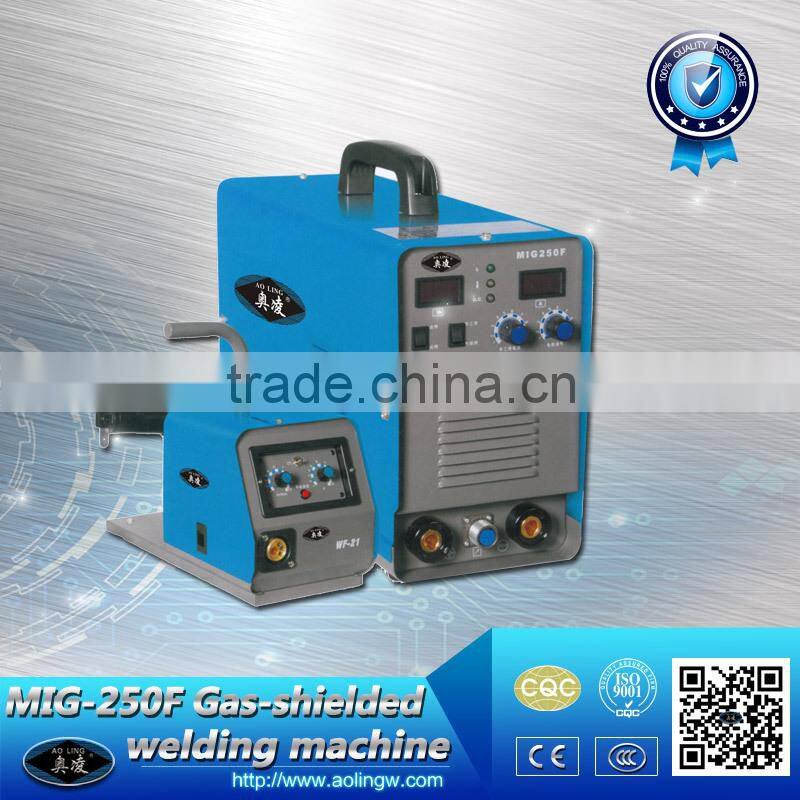

Supply Inverter Gas Shield Welding Machine MIG-250F

Name: Supply Inverter Gas Shield Welding Machine MIG-250F
Brand: Aoling
SKU: 133922819
Availability: InStock

US$ 550 - 800 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Aoling

Model Number:

MIG-250F

Guangzhou Aoling CNC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Aoling

Model Number MIG-250F

Voltage 380V

Current 50-300A

Rated Duty Cycle 60%

Dimensions 510*273*440mm

Weight 30kg

Usage welding

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Supply Inverter Gas Shield Welding Machine MIG-250F

Product Description

MIG serials inverter shielded arc welding machine(split type)

Features

1.IGBT inverter technology, current-type control, reliable quality, stable performance

2.closed-loop feedback, constant voltage output, strong resistance to voltage fluctuations(±15%)

3.electronic reactor control, stable welding process, small splash, deep bath, good shaping

4.welding voltage is preset, when no welding, voltmeter shows the preset voltage magnitude

5.welding current and voltage can be observed simultaneously

6.2T/4T optional, convenience for long time welding operation

7.when arc starting, low wire feed; after welding, ball cut; ensure success rate of arc.

8.wire parts from host, large operating range of welding

9.small size, light weight, simple operation, economical and practical

Technical parameters

Model No.		MIG-250F(B14)	MIG-315F(B15)
Rated input voltage(V)		3 PH 380	3 PH 380
Output current range(A)		35~250A	35~315A
Output voltage range(V)		14~32V	14~34V
Manual arc welder Current adjustment range(A)		20~220A	20~270A
Floating voltage(V)		52±5V	54±5V
Cyclic duration factor(%)		60%	60%
efficiency(%)		85	85
Power factor(cos )		0.93	0.93
Shell protective class		IP21	IP21
Insulation class		F	F
Wire feed speed(m/min)		2.5~16	2.5~16
dimension(mm)		510×196×385	510×196×385
weight(kg)		25	15
Product selection guide	materials	Low-carbon steel,low alloy steel,stainless steel
	Plate thickness(mm)	>2.0	>2.0
	Electrode diameter (mm)	0.8/1.0/1.2	0.8/1.0/1.2
