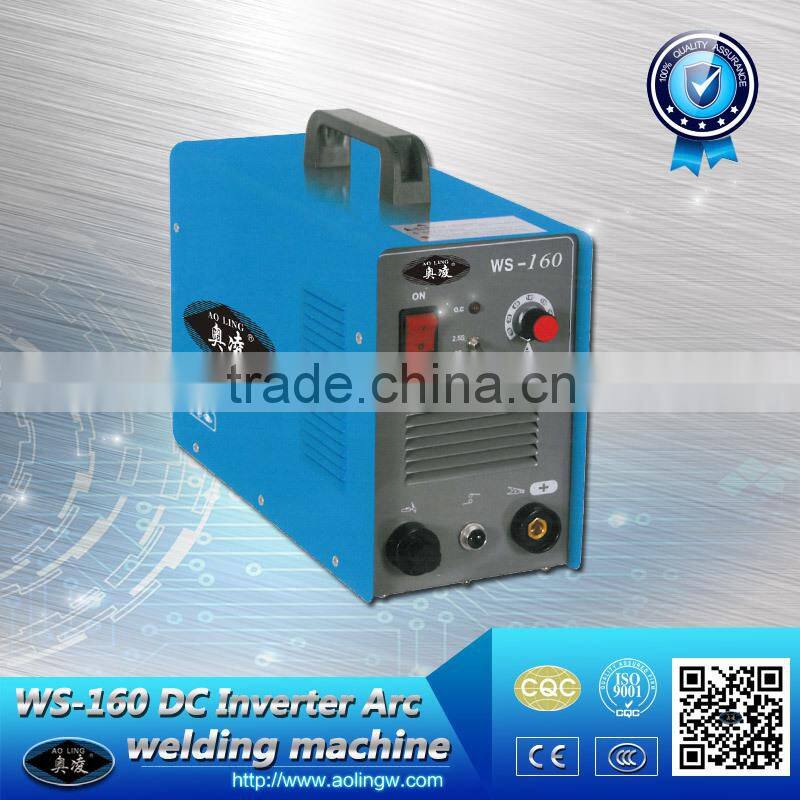

220V Single Phase Portable Arc Welding Machine WS-160

Name: 220V Single Phase Portable Arc Welding Machine WS-160
Brand: Aoling
SKU: 133922813
Availability: InStock

US$ 200 - 400 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Aoling

Guangzhou Aoling CNC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Aoling

Model Number WS-160

Arc Current 10-160A

Rated Duty Cycle 60%

Motor Type AC Motor

Dimensions 400*153*291mm

Usage arc welding

Voltage 220V

Certification ISO9001,CE

Warranty one years

After-sales Service Provided Engineers available to service machinery overseas

220V Single Phase Portable Arc Welding Machine WS-160

Inverter DC TIG welder feature

1.advanced inverter technology, high working frequency, small size, light weight, easily portable

2.stable arc, small splash

3.unique design of output characteristics, more suitable for wire feed welding, good weld seam

ntinuous operation, stable performance, voltage fluctuation automatic compensation

5.simple structure,superior technics, reliable and durable, easy maintenance

6.Used for welding stainless, low-carbon steel, copper and other metal

Technical parameters

Model No.	WS-160	WS-200	WS-250	WS-300
Rated input voltage(V)	1 PH 220	1 PH 220	1 PH 220	3PH 380
Output current range(A)	10~160A	10~200A	10~250A	10~300A
Floating voltage(V)	40	40	46	60
Arc start method	HF	HF	HF	HF
Cyclic duration factor(%)	60%	60%	60%	60%
efficiency(%)	85	85	85	85
Power factor(cos )	0.73	0.73	0.73	0.93
Shell protective class	IP21	IP21	IP21	IP21
Insulation class	F	F	F	F
dimension(mm)	400×153×291	400×153×291	400×153×291	505×203×375
weight(kg)	9	9	9	19
Suitable welding plate thickness(mm)	0.3~3.0	0.3~5.0	0.3~6.0	0.3~8.0
